2-4
HXR-MC1/MC1P
2-2-2. BT PANEL SECTION
Follow the disassembly in the numerical order given.
1 BT Panel (1-1 to 1-2)
2 Jack Cabinet (2-1 to 2-2)
3 LM-069 Board (3-1 to 3-5)

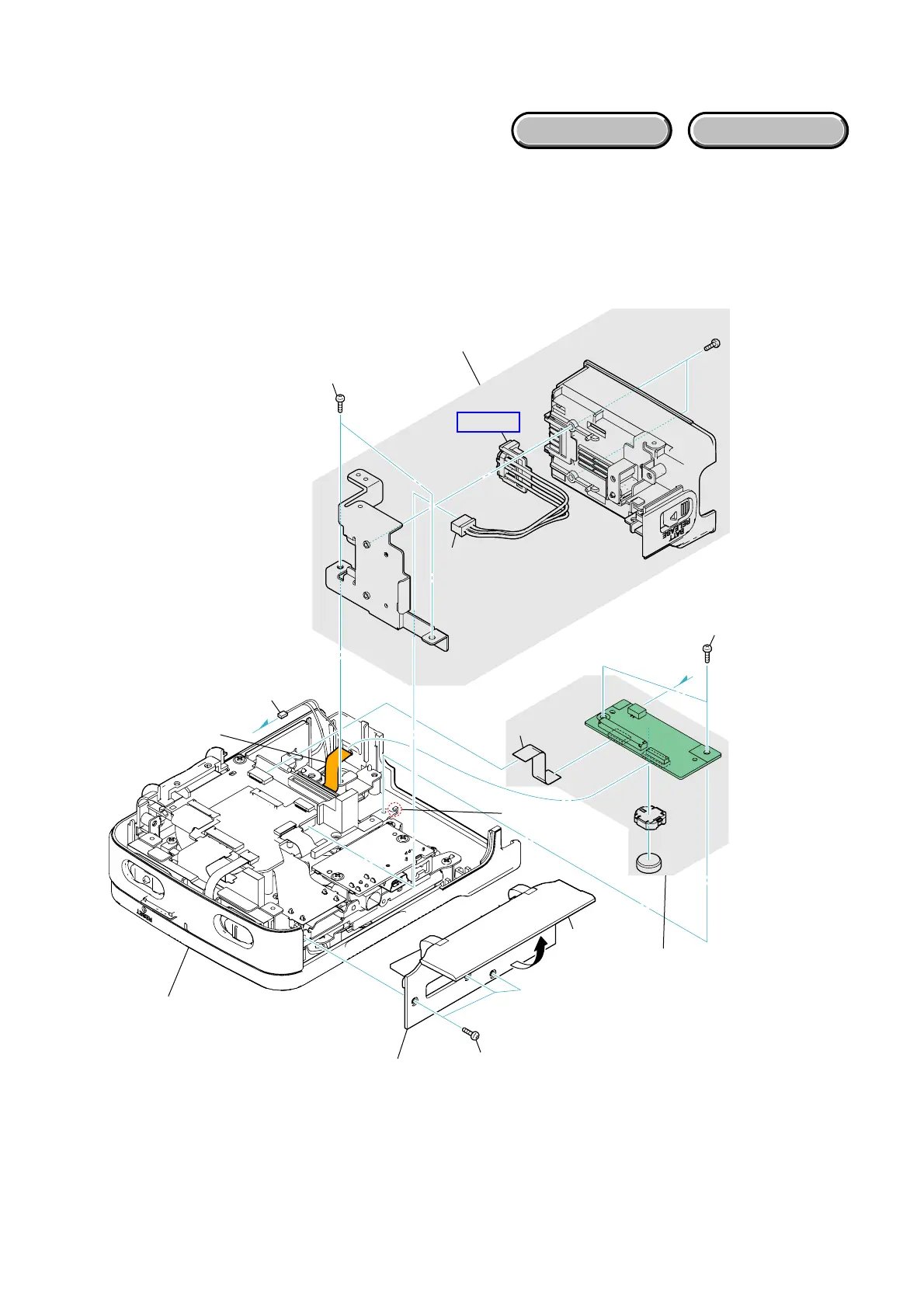

EXPLODED VIEW
HARDWARE LIST
LM-069
A
A
1-1
1 BT Panel
HELP03
2 Jack Cabinet
3-1
3-2
3-4 (Claw)
3-5E
3-3
(#3)
3 LM-069 Board
1-2E
(#9)
2-1
(Open)
2-2E
(#2)
MD Board Section
(See Page 2-5)
Ver. 1.1 2009.01
