5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HXR-MC1/MC1P
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
1 X-2345-358-1 CABINET (B) ASSY
2 4-132-542-11 SCREW, TRIPOD
3 4-135-345-01 SHEET, TRIPOD
4 X-2345-360-1 LID ASSY, MS
5 4-132-603-01 PROTECTOR, CABLE
6 4-132-601-01 SHEET (01), RADIATION
* 7 4-133-936-01 RETAINER, CABLE
#2 2-635-562-31 SCREW (M1.7) (Black)
#69 2-599-475-21 SCREW (M1.7) (Silver)

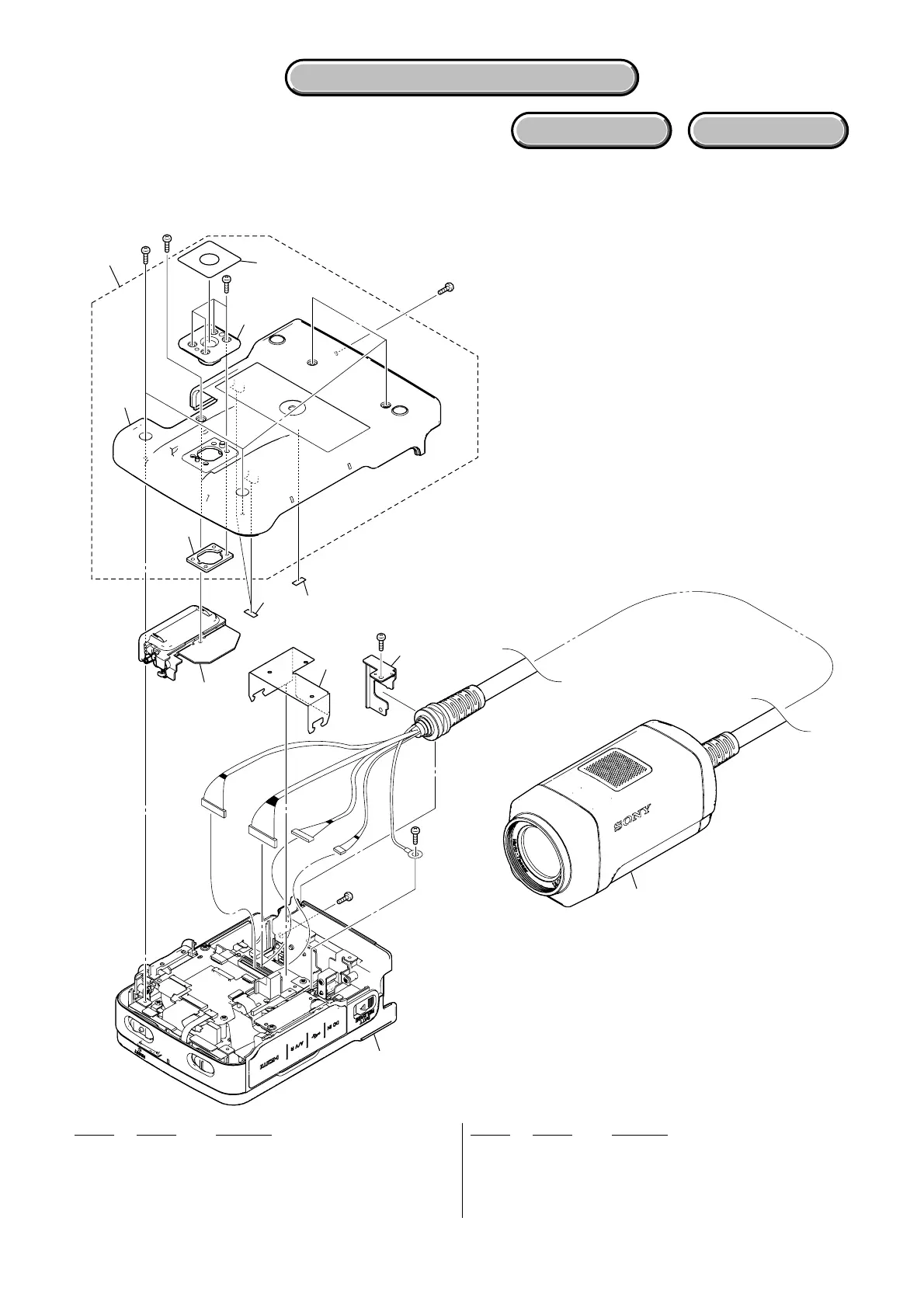

5-1-1. OVERALL SECTION
ns: not supplied
5-1. EXPLODED VIEWS
1
4
5
6
6
7
2
3
#2
#69
Camera Block Section
(See page 5-8)
#2
#2
#2
ns
ns
BT Panel Section
(See page 5-3)
#2
#69
