2-3
HXR-MC1/MC1P

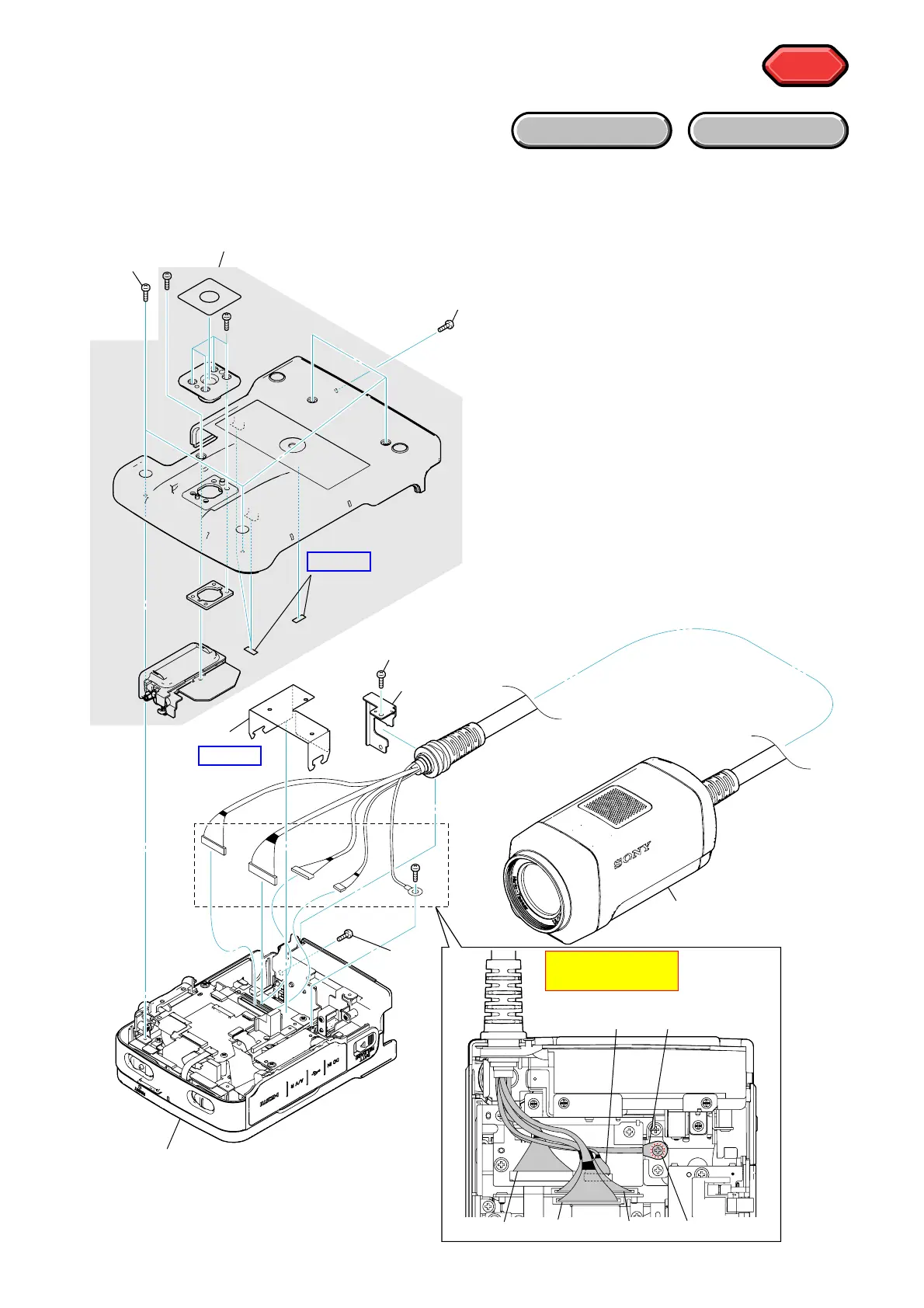

2-2. DISASSEMBLY
2-2-1. OVERALL SECTION
Follow the disassembly in the numerical order given.
1 Cabinet (B) (1-1 to 1-2)
2 Camera Block (2-1 to 2-10)
HELP
HELP
EXPLODED VIEW
HARDWARE LIST
2 Camera Block
(See Page 2-9)
1-2E
(#2)
1-1
(#2)
1 Cabinet (B)
HELP02
HELP01
2-2
2-9 (#69)
2-10E
2-1
(#2)
BT Panel Section
(See Page 2-4)
2-3 2-4
2-6 2-8
2-7 (#69)
2-5
Caution:
Don't cut harness.
Ver. 1.1 2009.01
