5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HXR-MC1/MC1P

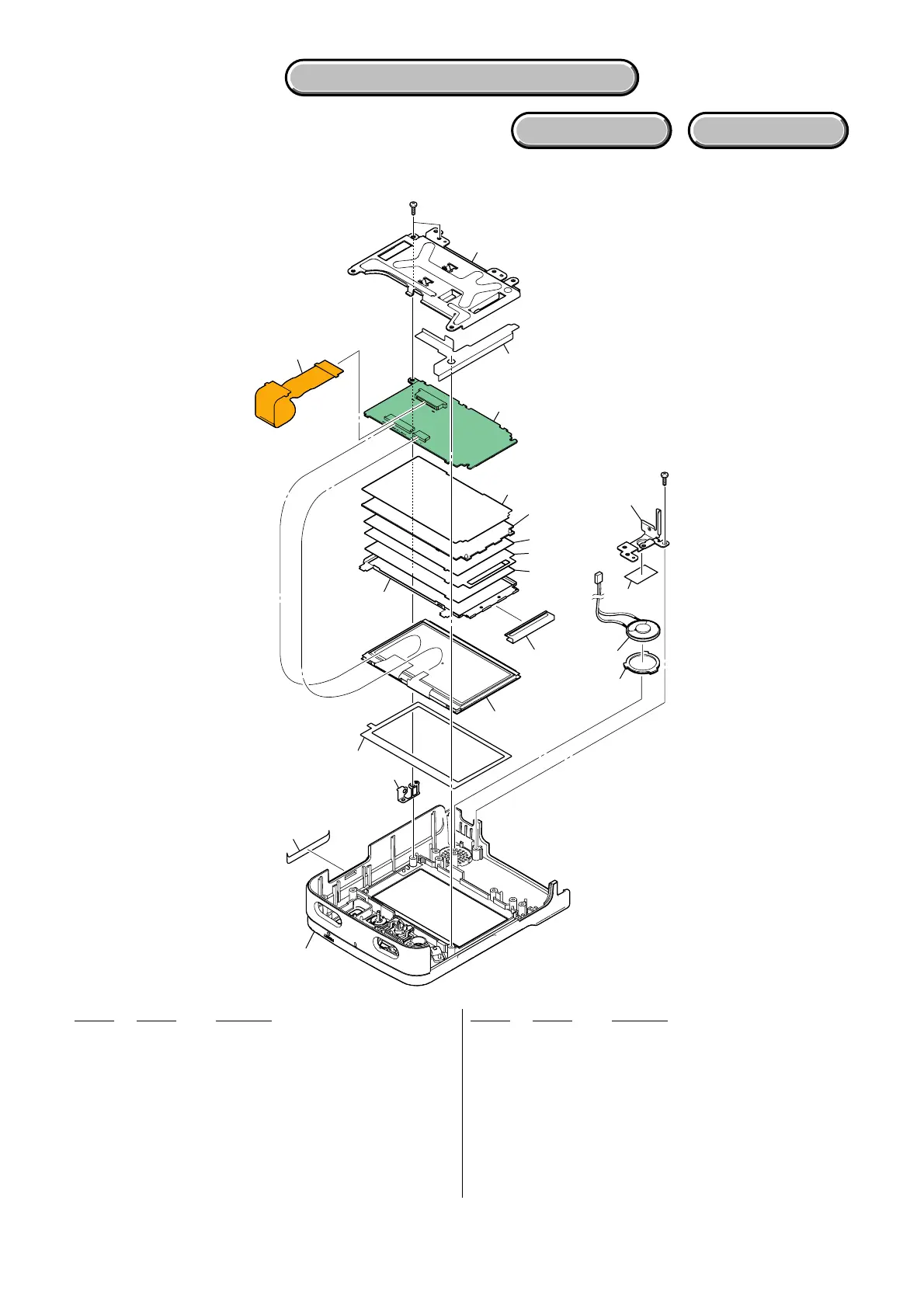

5-1-6. LCD SECTION
ns: not supplied
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
251 X-2345-366-1 CABINET (T) ASSY
252 4-132-602-01 LID, CPC
* 253 3-290-639-01 PLATE (700), P GROUND
* 254 3-290-642-01 CUSHION (700), TP
255 2-694-516-01 FRONT FRAME (2.7)
256 2-694-512-01 PRISM SHEET V (2.7)
257 2-694-513-01 PRISM SHEET H (2.7)
258 2-694-514-01 DIFFUSION SHEET (2.7)
259 2-666-801-01 LIGHT GUIDE (2.7)
260 2-694-515-01 REFLECTION SHEET (2.7)
261 A-1665-146-A PD-374 BOARD, COMPLETE
262 1-878-637-11 FP-1001 FLEXIBLE BOARD
263 4-132-607-01 FRAME, LCD
* 264 4-132-605-01 HOLDER, SP
* 265 4-132-606-01 SHEET, SP
* 266 4-136-658-01 SHEET, LIGHT INTERCEPTION
* 267 4-141-380-01 CUSHION, SP
LCD901 A-1202-058-A TP BLOCK ASSY (27ESHMG07)
SP901 1-825-260-51 LOUD SPEAKER (1.6CM)
#9 3-078-890-21 SCREW, TAPPING (Silver)
PD-374
251
252
#9
#
9
LCD901
SP901
253
254
255
256
ns
257
258
259
260
261
266
262
263
267
264
265
