Sony HXR-MC1 Operating Guide Service Manual

5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HXR-MC1/MC1P

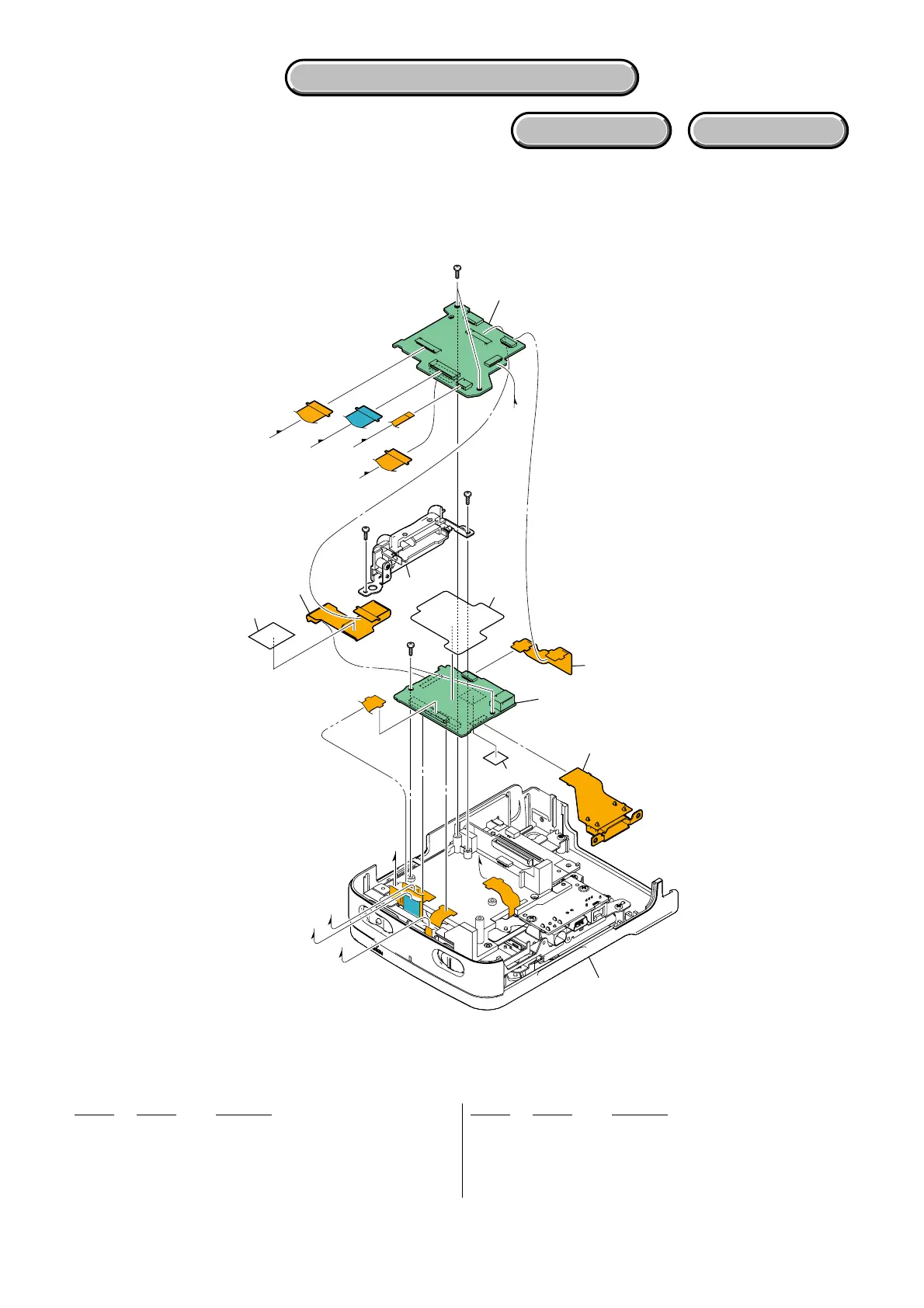

5-1-3. MD BOARD SECTION
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-1665-151-A FP-995 FLEXIBLE BOARD, COMPLETE
102 A-1665-360-A MD-142 BOARD, COMPLETE (SERVICE)
103 3-300-092-01 SHEET (N), RADIATION
104 1-878-639-11 FP-1005 FLEXIBLE BOARD
105 4-124-827-01 LABEL, FUSE REPLACEMENT CAUTION
106 1-875-837-11 FP-916 FLEXIBLE BOARD
107 X-2345-359-1 CABINET ASSY, MS
108 A-1665-147-A MS-408 BOARD, COMPLETE
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#69 2-599-475-21 SCREW (M1.7) (Silver)
MS-408
MD-142
A
A
B
B
C
D
E
E
D
C
101
102
104
105
108
106
107
103
#3
#3
#69
#69
ns
VC Board Sectio
n
(See page 5-5)
