5-6
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HXR-MC1/MC1P

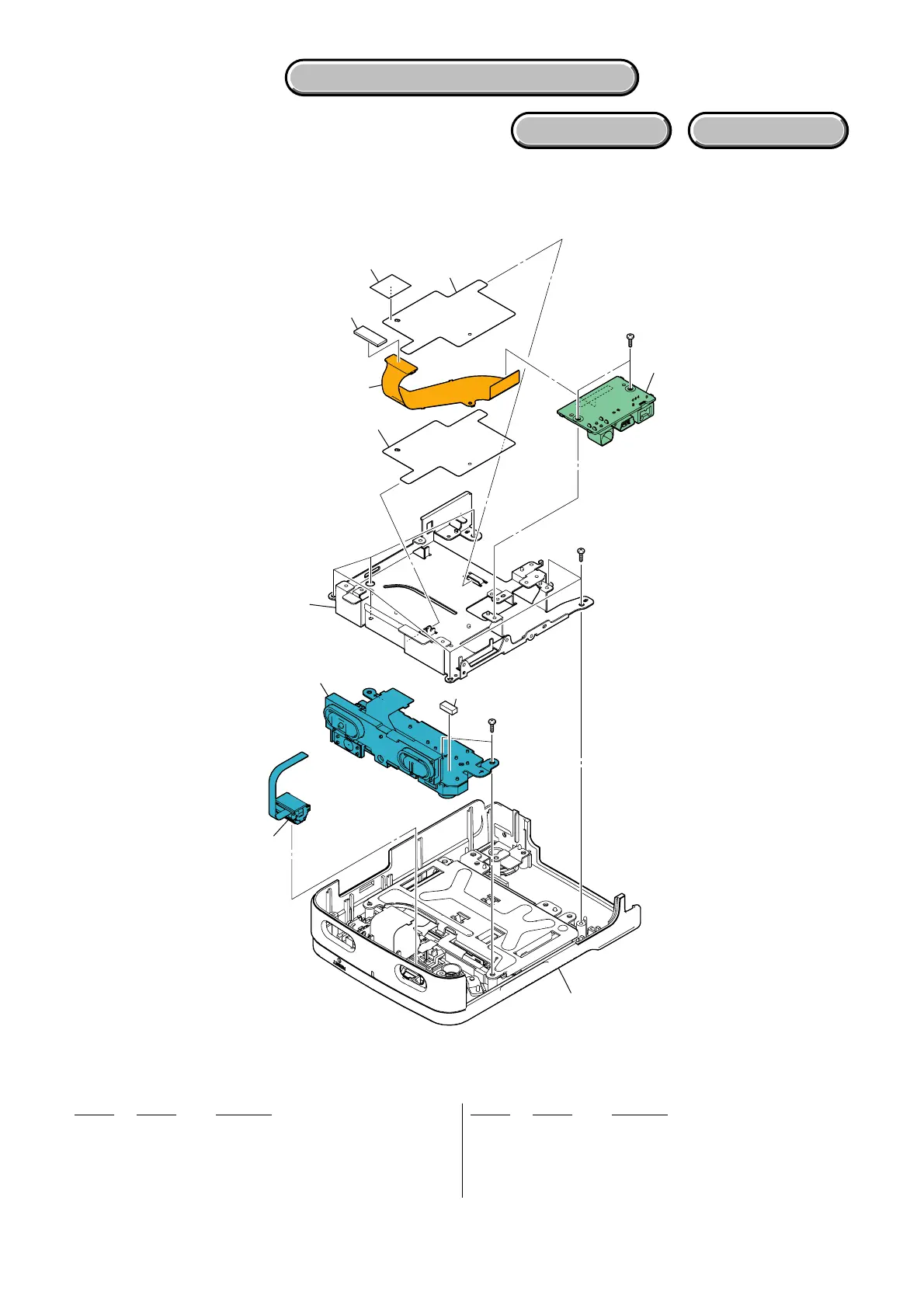

5-1-5. BASE FRAME SECTION
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
201 1-479-004-41 SWITCH BLOCK, CONTROL (AD93700)
202 1-487-116-11 SWITCH BLOCK, CONTROL (PS93700)
* 203 3-452-954-01 SHEET (MD), CONDUCTIVE
* 204 4-132-599-01 FRAME, BASE
* 205 4-132-604-01 SHEET, JK
206 A-1665-152-A FP-994 FLEXIBLE BOARD, COMPLETE
207 3-300-099-01 SPACER, CR
208 A-1665-150-A JK-378 BOARD, COMPLETE
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#9 3-078-890-21 SCREW, TAPPING (Silver)
JK-378
LCD Section
(See Page 5-7)
201
202
204
205
205
206
207
208
203
#9
#9
#3
ns
To Next Page
