Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-11
* 401 3-283-987-01 BRACKET, TALLY
402 3-283-986-01 CABINET, TALLY (LR)
403 3-283-984-01 COVER, HANDLE LOWER
404 A-1799-383-A MC-201 BOARD, COMPLETE
* 405 3-283-985-01 BRACKET, MICROPHONE JACK
406 1-965-549-11 HARNESS (MI-075)
407 1-874-532-11 FP-793 FLEXIBLE BOARD
* 408 2-892-090-01 KEY, RUBBER TACT
409 X-2187-976-1 COVER ASSY, HANDLE
410 3-067-469-11 SHOE, ACCESSORY
Ref. No. Part No. DescriptionRef. No. Part No. Description
* 411 3-283-980-01 PLATE (B), HANDLE
412 X-2187-975-1 HANDLE ASSY
413 3-283-983-01 BRACKET (R), STRAP
* 414 3-283-979-01 PLATE (A), HANDLE
* 415 3-283-981-01 PLATE (C), HANDLE
416 3-283-982-01 BRACKET (F), STRAP
#23 3-080-204-11 SCREW, TAPPING, P2
#37 3-080-206-31 SCREW, TAPPING, P2
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#100 3-080-203-51 SREW (M2), LOCK ACE, P2
#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2
#106 3-713-786-11 SCREW (M2X6)
#107 3-032-750-01 (+) K SCREW M2

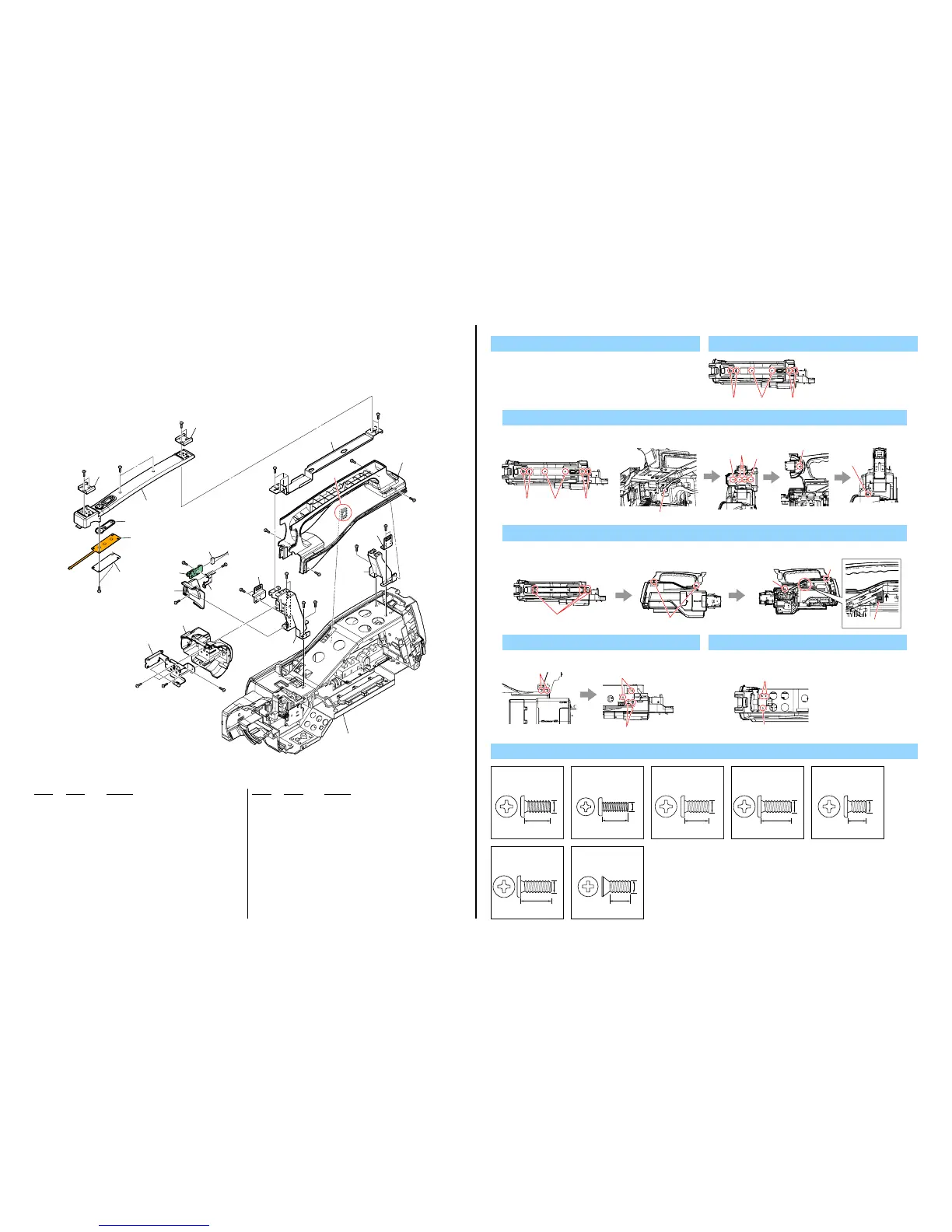

2-1-9. HANDLE (COVER) SECTION
ns : not supplied
1. Remove to numerical order (1 to 5) in the left figure.
DISASSEMBLY
1 #107 X 4 → #37 X 2
Screw
4 #49 X 2 → Strap Bracket (F) (4) →#49 X 4
#107#107 #37
#49
#49
#49
Top View
Left View
Right View
#49
#49
#49
#49
Claw
Left ViewTop View
3 #49 X 6 → Handle Plate (B) (3) → #49 X 4
5 #100 X 2 → Strap Bracket (R) (5) →#100 X 1
#100
#100
Top View
1 409
2 403
3 (Claw)
#106
#49
#23
#105
#49
#49
#49
#100
#100
#49
#49
#49
#49
#49
#49
#49
#37
#107
#107
ns
#37
#106
#37
401
404
406
407
408
410
405
Overall Section-3
(See Page 2-12)
410
411
3
3 412
413
5
5 414
416
4
402
2
4 415
2 Harness → #37 X 2 → #106 X 3 → Tally (LR) Cabinet (2) → #49 X 1
Top View
#107#107 #37
Front ViewRight View
Front ViewRight View
#106
#37
#37
#106
#49
Harness
#23: M1.7 X 4.0 (Tapping)
(Black)
3-080-204-11
4.0
1.7
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
#105: M2.0 X 4.0
(Red)
2-891-494-31
4.0
2.0
#107: M2.0 X 5.0
(Silver)
3-032-750-01
5.0
2.0
#106: M2.0 X 6.0
(Black)
3-713-786-11
6.0
2.0
