Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-7

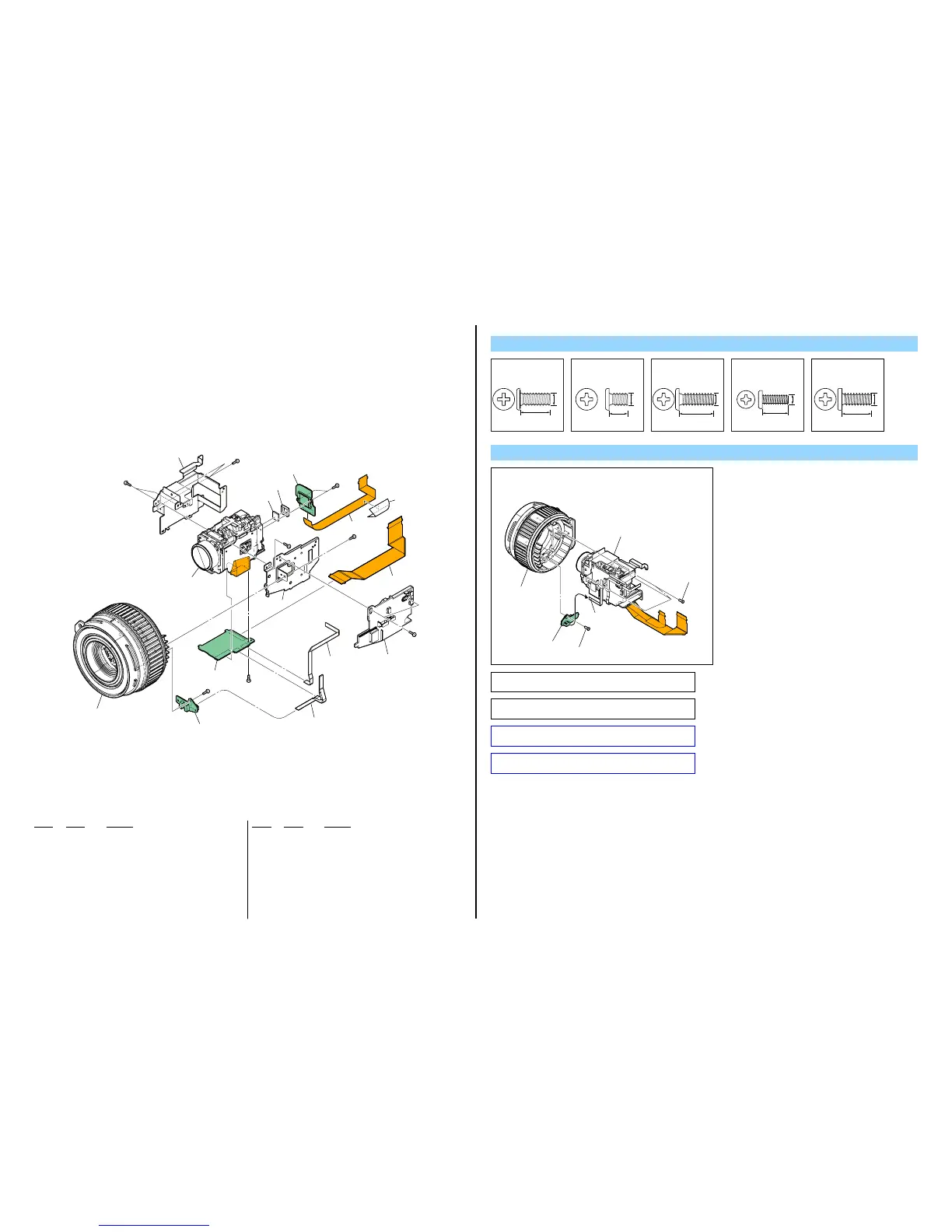

2-1-5. LENS SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
201 X-2560-631-1 PANEL ASSY, F (Note 1)
202 A-1799-373-A EC-004 BOARD, COMPLETE
203 A-1799-372-A LD-269 BOARD, COMPLETE
204 1-834-810-11 CABLE, FLEXIBLE FLAT (FFC-339) (Note 3)
205 1-883-563-11 CABLE, FLEXIBLE FLAT (FFC-241) (Note 3)
206 4-263-977-01 CLAMP, FLEXIBLE (Note 3)
207 1-883-559-11 FP-1294 FLEXIBLE BOARD
208 1-883-560-11 FP-1295 FLEXIBLE BOARD
209 4-263-976-01 FRAME (R (230)), LENS
210 A-1767-897-A CM-114 BOARD, COMPLETE (Note 2)
211 3-216-044-01 RUBBER (1270), SEAL
212 1-856-066-11 OPTICAL FILTERBLOCK (OFB-03-51)
213 A-1733-588-A LSV-1400A (SERVICE) (Note 3)
214 4-263-975-01 FRAME (L (230)), LENS
215 4-263-664-01 SHEET (CM), SHIELD
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#12 3-080-204-21 SCREW, TAPPING, P2
#37 3-080-206-31 SCREW, TAPPING, P2
#172 2-178-410-01 TITE (UB TITE) 1.4
Screw
Note
Note 2: Be sure to read "Precautions for Replacement of Imager"
on page 6-1 of LEVEL 3 when changing the imager.
#37
#172
#2
#3
#37
#12
#12
#37
201
(Note 1)
202
203
204
(Note 3)
205
(Note 3)
206
(Note 3)
207
208
215
210
(Note 2)
209
LD-269
211
212
213
(Note 3)
214
Note 3: Refer to "Assembly-2: Installation Cautions of Flexible board
and Flexible flat cables of the Lens block".
Note 2:
イメージャの交換時は6-1ページの“イメージャ交換時の注
意”を必ずお読みください。
Note 3:
“Assembly-2:Installation Cautionsof Flexibleboardand
FlexibleflatcablesoftheLensblock”を参照してください。
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#172: M1.4 X 4.0 (Tapping)
(Black)
2-178-410-01
1.4
4.0
REMOVING METHODE OF F PANEL ASSY
Note 1:
Three
Screws
Lens block
F panel assy
Screw
Flexible flat cable
EC-004 Board
