Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-13
* 501 3-283-953-01 PLATE, DC TERMINAL RETAINER
502 A-1799-380-A DC-114 BOARD, COMPLETE
503 A-1799-379-A HP-158 BOARD, COMPLETE
* 504 3-283-952-01 PLATE, HP TERMINAL RETAINER
505 X-2560-991-1 PANEL ASSY, JACK
Ref. No. Part No. DescriptionRef. No. Part No. Description
 506 A-1799-381-A BA-012 BOARD, COMPLETE
507 3-284-038-01 COVER (DC), JACK
508 3-284-039-01 COVER (HP), JACK
509 3-284-040-11 COVER (LANC), JACK
510 X-2187-971-1 PANEL ASSY, BT
511 3-060-595-01 CLAW, BT LOCK
#37 3-080-206-31 SCREW, TAPPING, P2
#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2

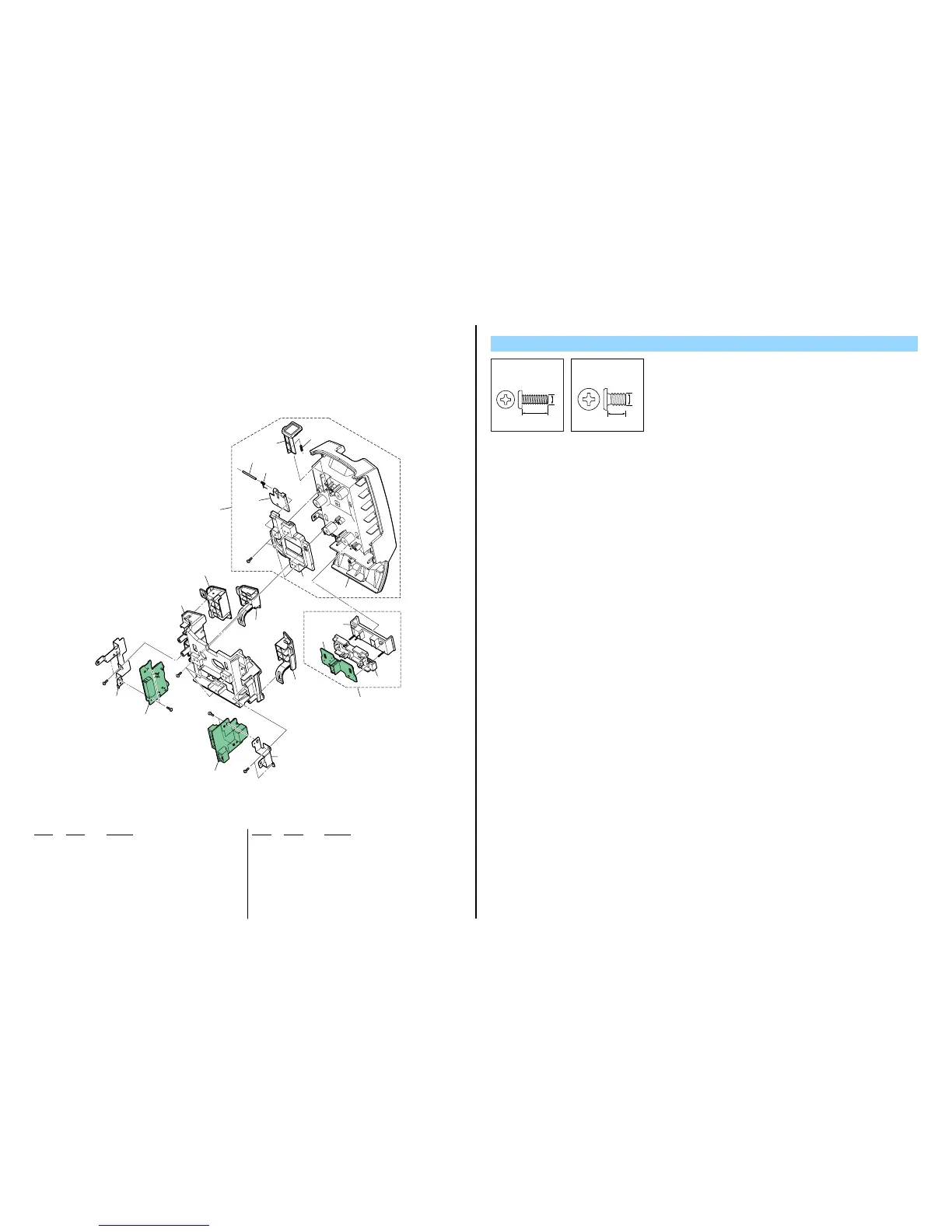

2-1-11. BATTERY PANEL SECTION
ns : not supplied
Screw
501
502
503
#37
#37
#37
#37
#105
#105
ns
ns
ns
ns
ns
ns
ns
ns
504
505
506
507
508
509
510
511
ns
(CN0651)
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#105: M2.0 X 4.0
(Red)
2-891-494-31
4.0
2.0
