Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-10
351 A-1799-377-A RE-042 BOARD, COMPLETE
352 1-965-560-11 HARNESS (RS-112)
353 3-284-024-01 COVER (REAR), HINGE
354 2-649-300-01 SHEET, ADHESIVE
355 1-452-929-12 MAGNET (011)
356 X-2187-982-1 HINGE ASSY
357 1-965-937-31 HARNESS (COAXIAL CABLE)
358 3-284-023-01 COVER (FRONT), HINGE
359 4-263-970-01 CABINET (M), P
360 4-263-968-01 PLATE (P), GROUND
Ref. No. Part No. DescriptionRef. No. Part No. Description
361 4-263-969-01 CUSHION, LCD
362 4-263-972-01 RETAINER, LCD
363 4-263-973-01 INSULATING SHEET (PD)
364 A-1799-378-A PD-427 BOARD, COMPLETE
365 4-263-971-01 GUARD, FLEXIBLE
366 3-284-025-21 CABINET (C), P
LCD901 1-811-015-11 LCD MODULE WITH TOUCH PANEL
#12 3-080-204-21 SCREW, TAPPING, P2
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2

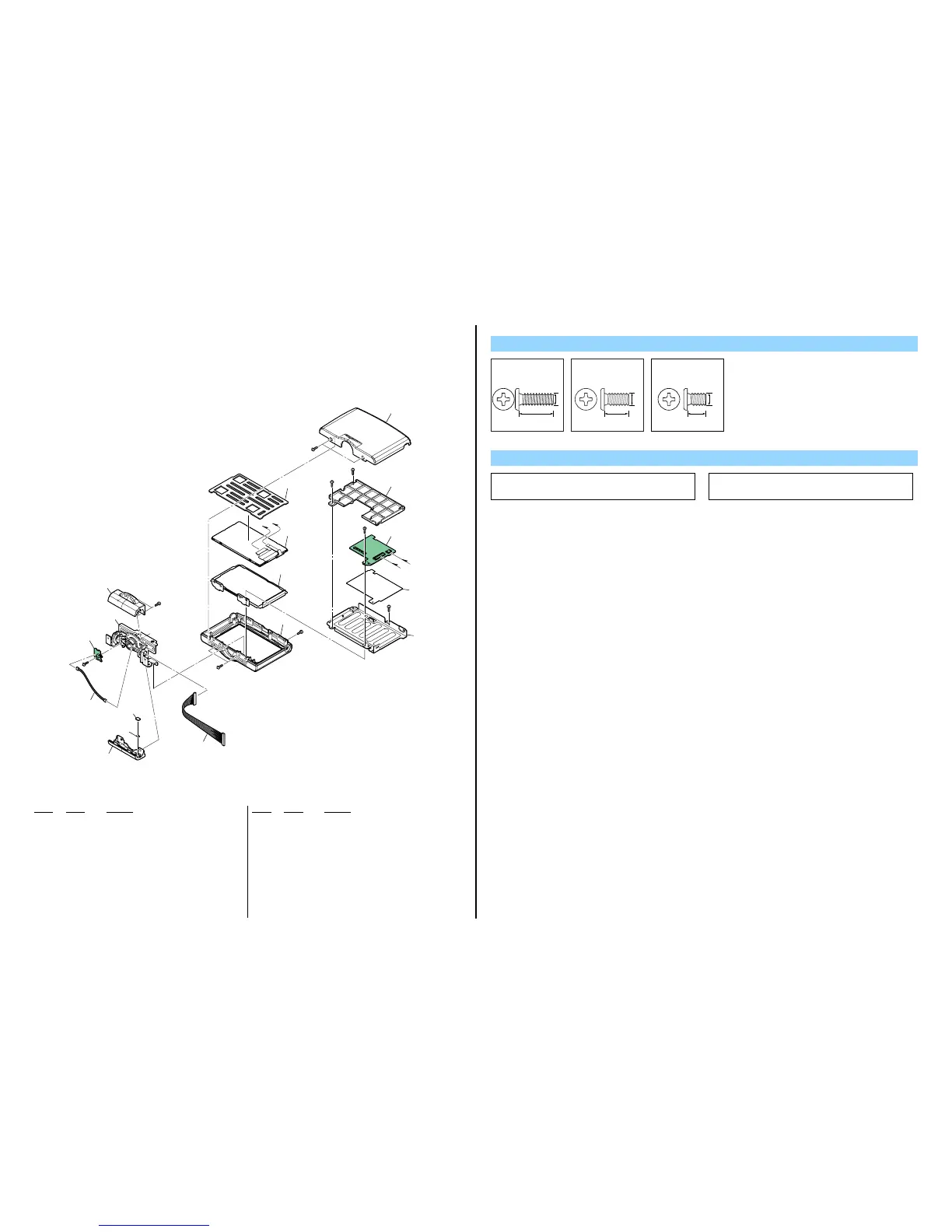

2-1-8. LCD PANEL SECTION
Screw
Note
CAUTION:
For the part of 354, cut ADHESIVE SHEET (2-649-300-01) into the
desired length and use it.
PD-427
A
B
B
A
#105
#49
#49
#12
#12
#12
#12
#12
#49
351
352
355
353
354
(2.2mm x 3mm)
359
360
361
LCD901
357
356
358
366
365
364
363
362
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#105: M2.0 X 4.0
(Red)
2-891-494-31
4.0
2.0
注意:
354:SHEET,ADHESIVE(2-649-300-01)を切って使用すること。
