Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-5

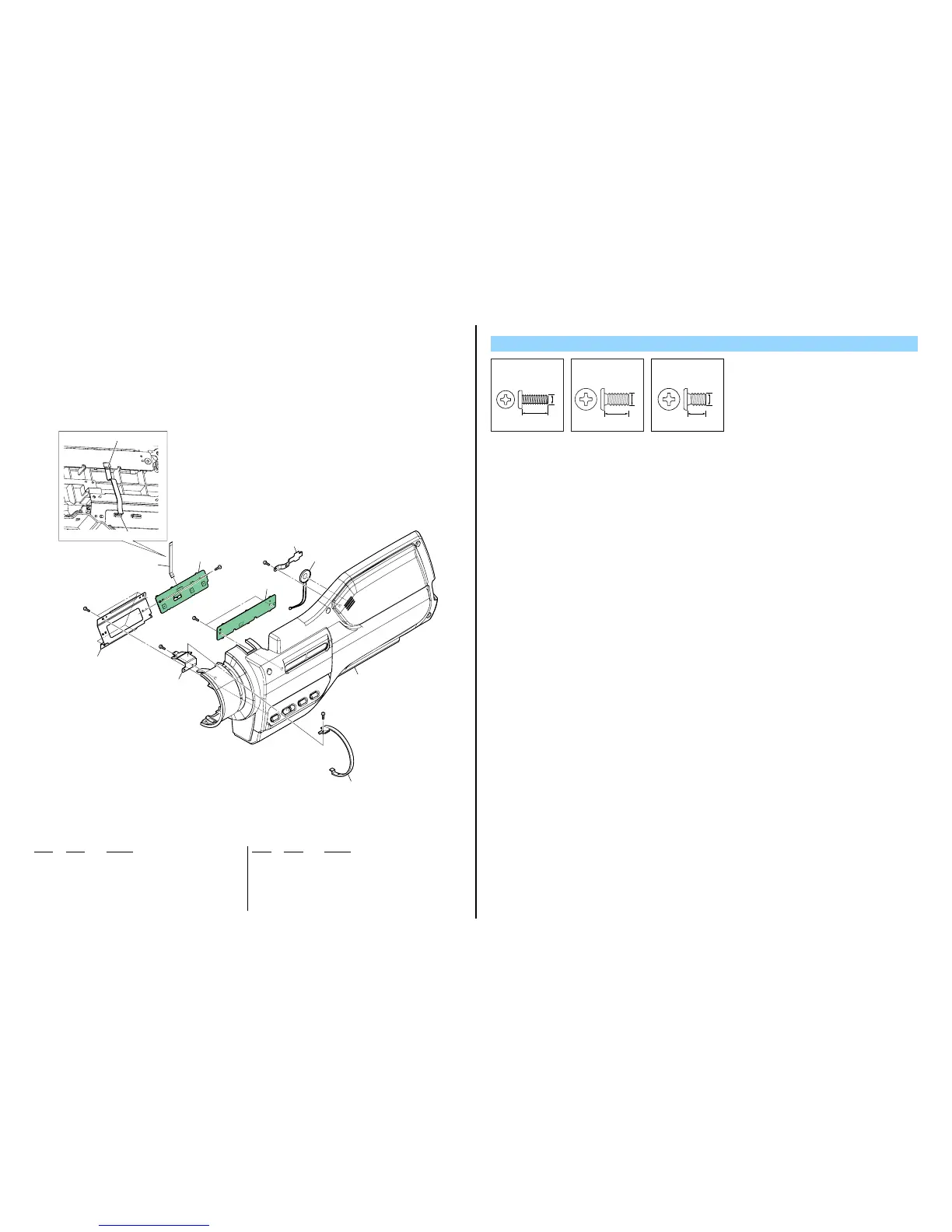

2-1-3. CABINET (R) SECTION
ns : not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
101 3-283-972-01 RING, ORNAMENTAL
102 X-2560-614-1 CABINET (R) ASSY (925)
* 103 3-283-971-01 BRACKET (UPPER), LR
* 104 3-283-969-01 BRACKET, CHASSIS
105 1-834-807-11 CABLE, FLEXIBLE FLAT (FFC-336)
106 A-1799-370-A SP-053 BOARD, COMPLETE
107 A-1799-371-A MO-028 BOARD, COMPLETE
SP901 1-858-324-41 SPEAKER (1.6CM)
#37 3-080-206-31 SCREW, TAPPING, P2
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2
Screw
#49
#37
#37
#37
ns
SP901
Reinforced plate side
Reinforced plate side
#105
MO-028
#37
101
102
103
104
105
106
107
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#105: M2.0 X 4.0
(Red)
2-891-494-31
4.0
2.0
