Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-4

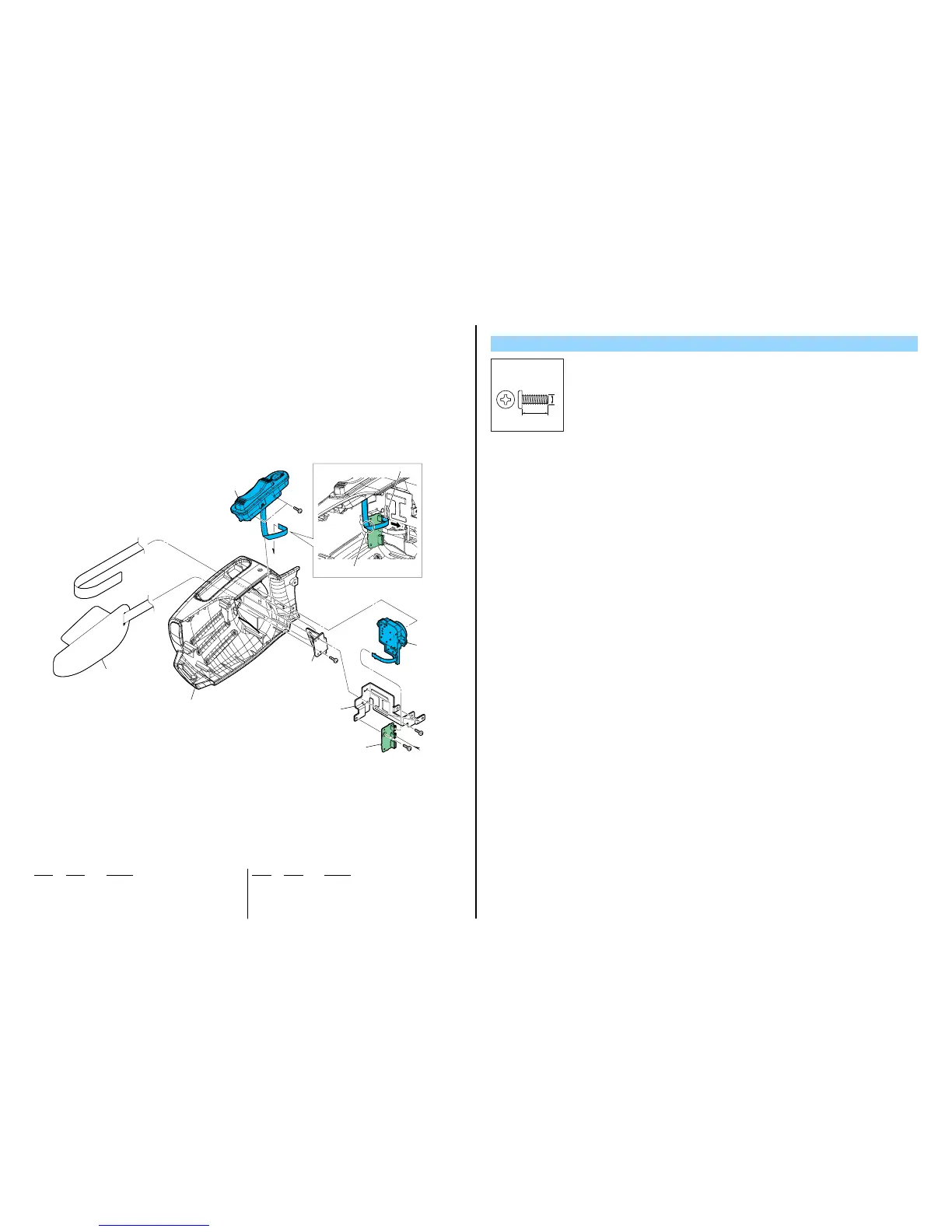

2-1-2. GRIP SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
51 4-263-758-01 CABINET, GRIP
52 3-289-560-01 BELT, GRIP
53 1-480-479-11 SWITCH BLOCK, CONTROL (ZM90500)
* 54 4-263-759-01 BRACKET (B), GRIP BELT
55 1-487-447-11 SWITCH BLOCK, CONTROL (PS94000)
* 56 4-263-760-01 PLATE, SS RETAINER
57 A-1799-382-A NS-023 BOARD, COMPLETE
#37 3-080-206-31 SCREW, TAPPING, P2
Screw
A
A
51
52
#37
#37
#37
#37
53
55
56
54
57
Flexible board
Fold
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
