Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-3

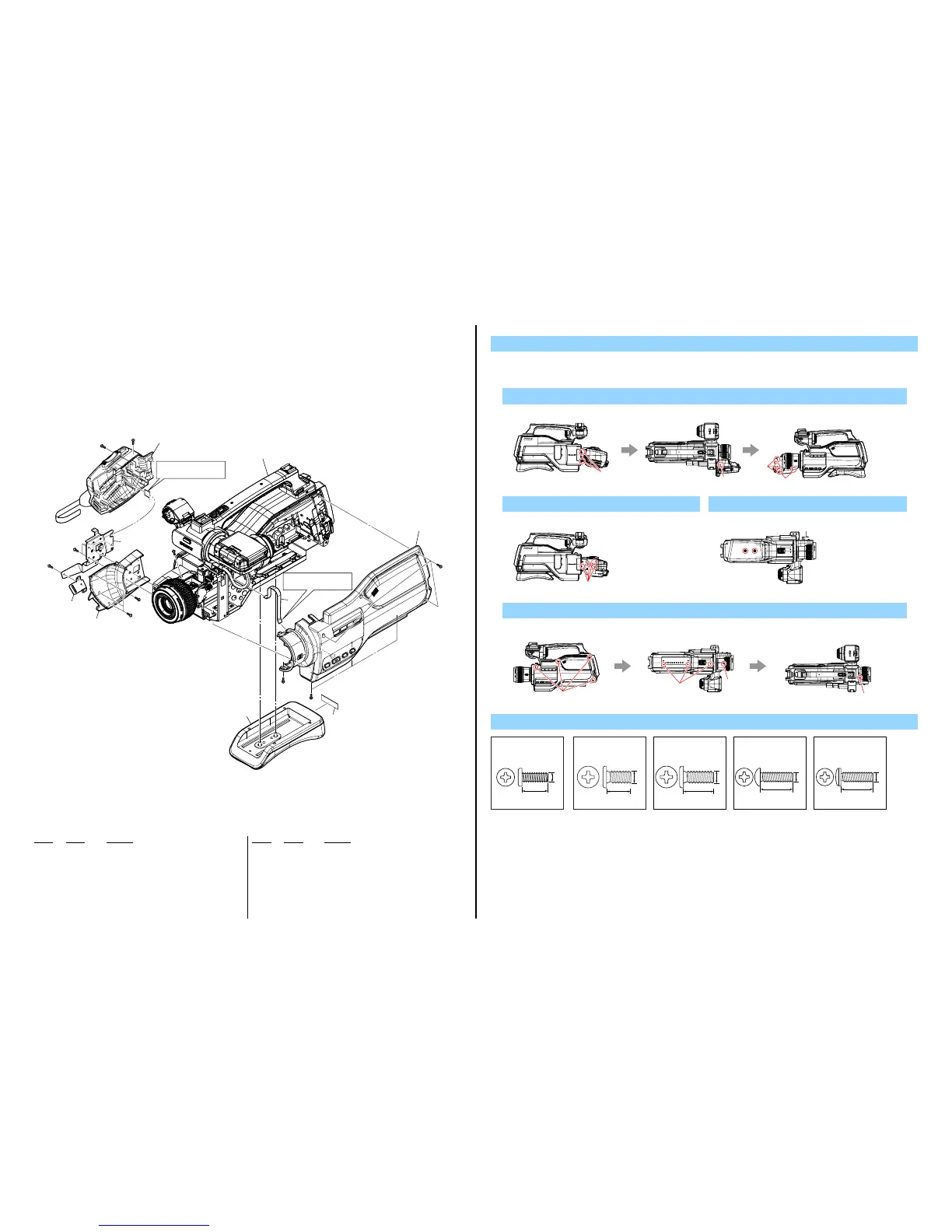

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION-1
Ref. No. Part No. Description
Ref. No. Part No. Description
1 3-284-044-01 BASE, GRIP
* 2 3-284-047-01 BRACKET (F), GRIP BELT
3 3-284-046-01 FRAME, GRIP
4 1-834-808-11 CABLE, FLEXIBLE FLAT (FFC-337)
5 X-2187-984-1 PAD ASSY, SHOULDER
6 4-263-650-11 SHEET (JAPAN)
(MC2000E/MC2000J/MC2000N/MC2000U)
6 4-263-650-21 SHEET (JAPAN) (MC1500C/MC1500P)
#37 3-080-206-31 SCREW, TAPPING, P2
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#100 3-080-203-51 SREW (M2), LOCK ACE, P2
#103 7-685-794-09 SCREW +PTT 2.6X10 (S)
#104 7-682-548-09 SCREW +B 3X8
1. Remove to numerical order (1 to 5) in the left figure.
DISASSEMBLY
1 #100 X 3 → #37 X 4
Screw
#37
#100
#100
#100
#104
#100
#103
#49
#49
#37
1 Grip Section
(See Page 2-4)
5 Cabinet (R) Section
(See Page 2-5)
Overall Section-2
(See Page 2-6)
3 1
4 5
6
2
2 3
4
Be careful not to be break
the flexible flat cable.
Be careful not to be break
the flexible flat cable.
2 #103 X 4
Top View Right ViewLeft View
#100
#37
#100
Left View
#103
Right View
Bottom View Top View
#104
#49
#100
#100
5 #104 X 4 → #49 X 3 → #100 X 2
4 Two Screws (including Shoulder Pad Assy)
Bottom View
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
#103: M2.6 X 10.0
(Silver)
7-685-794-09
10.0
2.6
#104: M3.0 X 8.0
(Black)
7-682-548-09
8.0
3.0
