Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-9
301 X-2187-981-1 CABINET (UPPER) ASSY, VF
302 3-284-016-01 COVER, HINGE (LOWER) (Note)
303 A-1799-374-A FP-1293 BOARD, COMPLETE
* 304 3-284-017-01 FRAME, VF
305 A-1799-376-A BH-002 BOARD, COMPLETE
* 306 3-284-015-01 FRAME, HI
307 A-1799-375-A HI-079 BOARD, COMPLETE
308 X-2187-979-1 HINGE ASSY, VF
309 1-965-791-11 HARNESS (BI-001) (Note)
310 X-2560-630-1 ADJUSTMENT ASSY, VISIBILITY
Ref. No. Part No. DescriptionRef. No. Part No. Description
311 4-263-788-01 CABINET, INNER
* 312 4-178-033-01 VF RETAINER
313 X-2560-616-1 LOWER ASSY, VF CABINET
* 314 3-283-991-01 KNOB, ON/OFF
* 315 3-283-992-01 RETAINER, ON/OFF KNOB
316 1-834-802-11 CABLE, FLEXIBLE FLAT (FFC-329)
LCD902 1-811-013-11 LCD MODULE (FL0906)
#23 3-080-204-11 SCREW, TAPPING, P2
#37 3-080-206-31 SCREW, TAPPING, P2
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#105 2-891-494-31 SCREW (M2), NEW TRUSTER, P2

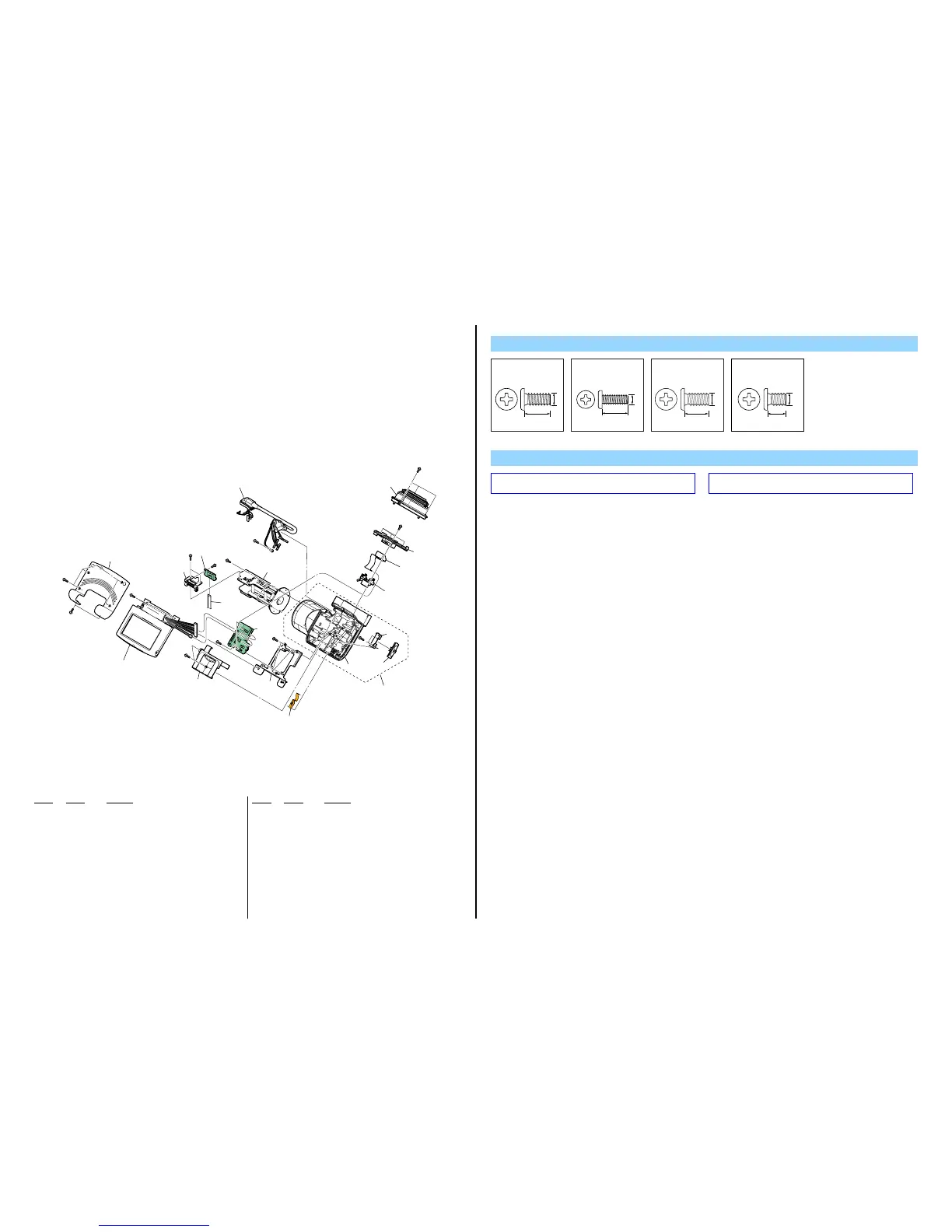

2-1-7. VIEW FINDER SECTION
ns : not supplied
Screw
Note
Note: Refer to "Assembly-3: Installation Cautions of Harnesses
(coaxial cable/BI-001/RS-112)".
#37
#37
LCD902
310
313
312
311
308
309
(Note)
#49
#37
#105
ns
#23
314
315
301
302
(Note)
306
307
316
LCD P anel Section
(See Page 2-10)
#49
#37
#37
#37
#105
#105
303
304
305
#37
Note:
“Assembly-3:InstallationCautions ofHarnesses(coaxial
cable/BI-001/RS-112)”を参照してください。
#23: M1.7 X 4.0 (Tapping)
(Black)
3-080-204-11
4.0
1.7
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#105: M2.0 X 4.0
(Red)
2-891-494-31
4.0
2.0
