Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-8
251 1-481-788-11 CORE, FERRITE
252 3-283-989-01 BASE, RING
253 X-2187-977-1 CABINET ASSY, TALLY (FRONT)
254 X-2342-570-1 HOLDER (93000) ASSY,MICROPHONE
255 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER
Ref. No. Part No. DescriptionRef. No. Part No. Description
256 4-119-861-01 RUBBER (93000), HOLDER
257 3-284-081-11 SHEET, RUBBER ADHESIVE
258 3-284-080-01 RUBBER, MICROPHONE
259 3-284-621-11 CUSHION, MICROPHONE HOLDER
#23 3-080-204-11 SCREW, TAPPING, P2
#37 3-080-206-31 SCREW, TAPPING, P2
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#102 7-621-284-30 SCREW +P 2.6X8

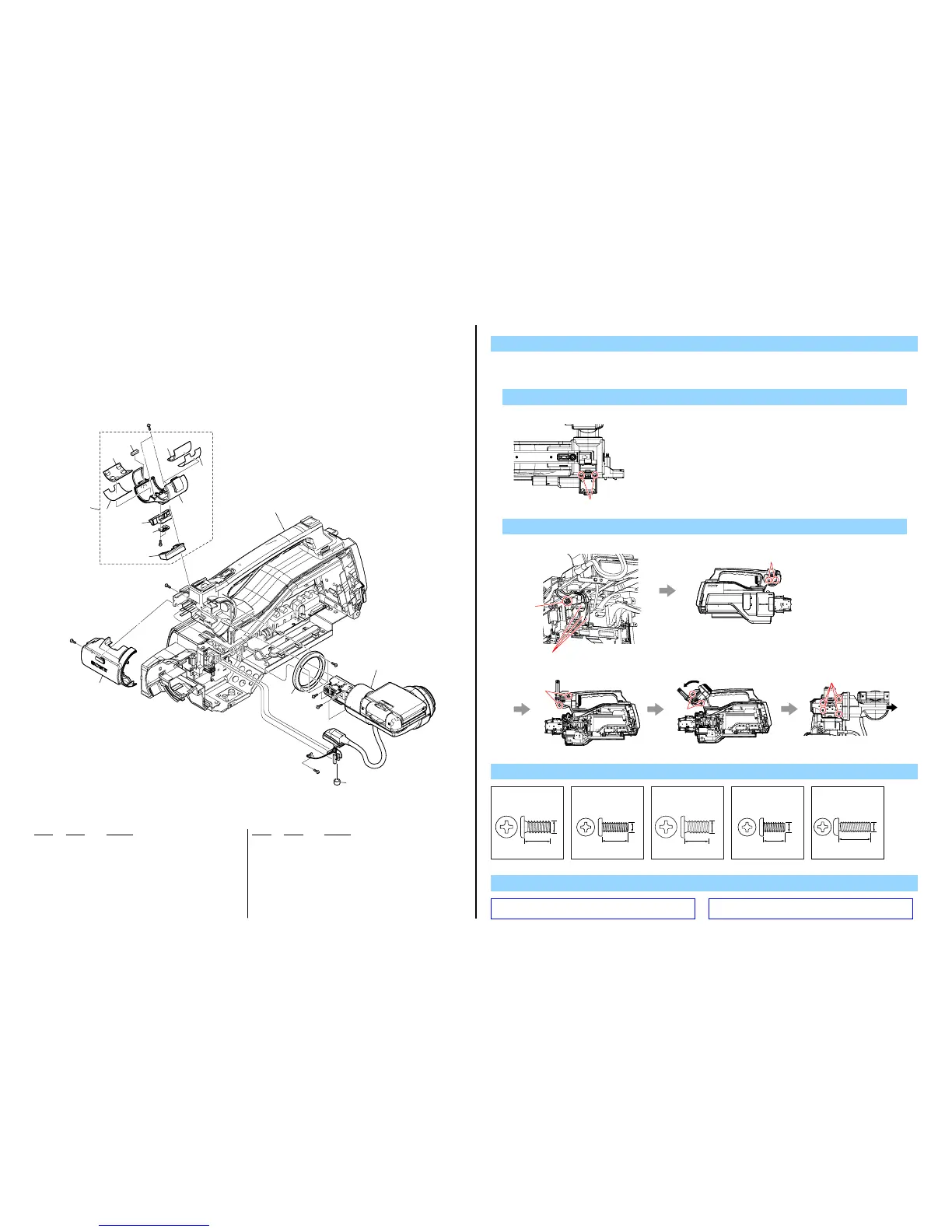

2-1-6. HANDLE (TALLY) SECTION
ns : not supplied
252
2 View Finder Section
(See Page 2-9)
(Note)
Handle (Cover) Section
(See Page 2-11)
#37
#102
#23
#49
#49
#49
#49
1 254
257
258
257
258
259
ns
256
#53
ns
255
253
2
251
1. Remove to numerical order (1 to 2) in the left figure.
DISASSEMBLY
1 #102 X 2
Screw
Top View
#102
Right View
Front View
Right View
Rotate
Slide
Left ViewRight View
#49
#49
#23
#37
#23
Harnesses
5 Harnesses → #37 X 1 → #49 X 2 → #23 X 4 → Tally (Front) Cabinet Assy (2) → #49 X 4
Note
Note: Refer to "Assembly-1: Installation Cautions of the View
finder section".
Note:
“Assembly-1:InstallationCautionsof the View finder
section”を参照してください。
#23: M1.7 X 4.0 (Tapping)
(Black)
3-080-204-11
4.0
1.7
#37: M2.0 X 6.0 (Tapping)
(Black)
3-080-206-31
6.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#102: M2.6 X 8.0
(Black)
7-621-284-30
8.0
2.6
