Sony HXR-MC1500C Service Manual

HXR-MC1500C/MC1500P/MC2000E/MC2000J/MC2000N/MC2000U
2-6

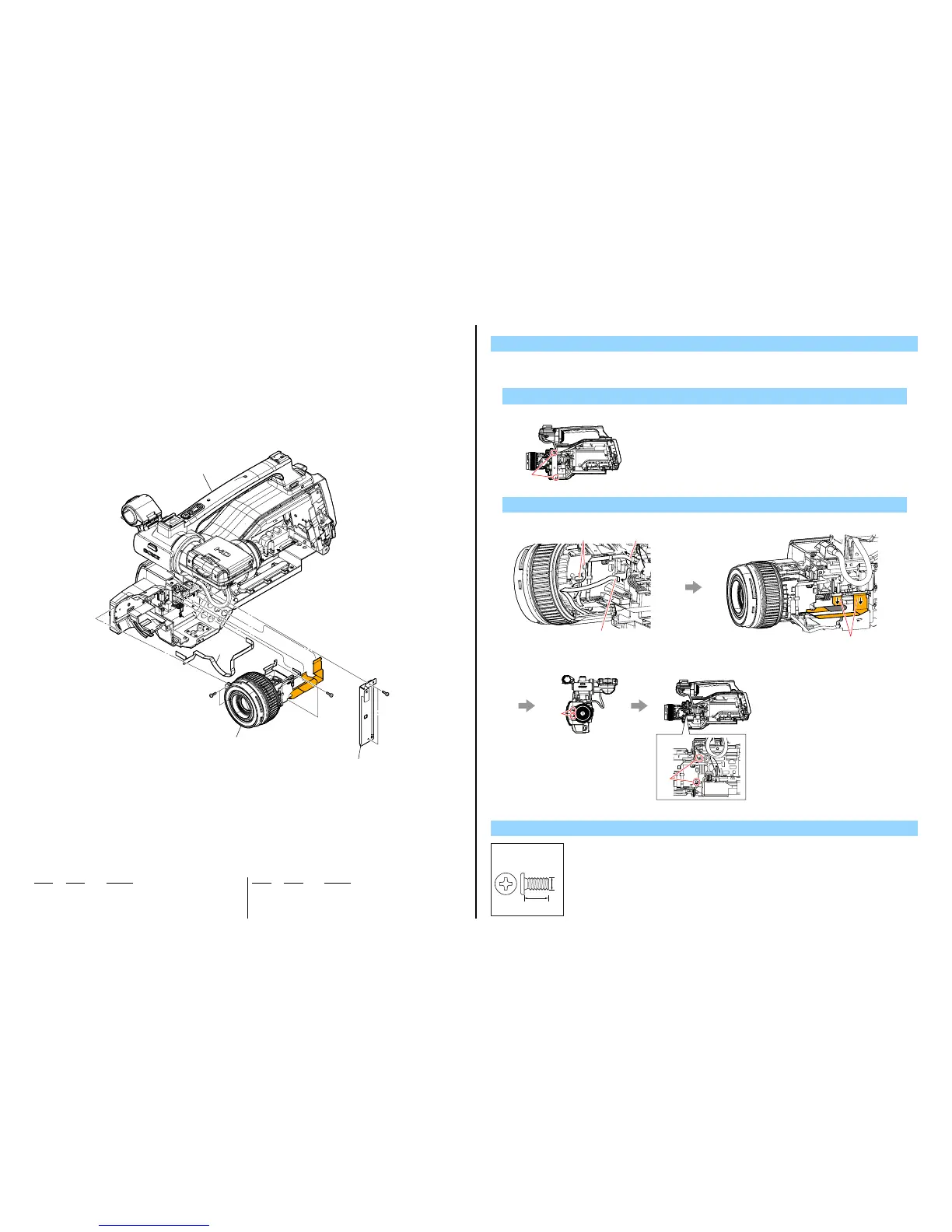

2-1-4. OVERALL SECTION-2
Ref. No. Part No. Description
Ref. No. Part No. Description
151 1-883-562-11 CABLE, FLEXIBLE FLAT (FFC-240)
* 152 3-284-037-01 FRAME (R)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#49
#49
#49
Handle (Tally) Section
(See Page 2-8)
2 Lens Section
(See Page 2-7)
1 152
151
1. Remove to numerical order (1 to 2) in the left figure.
DISASSEMBLY
1 #49 X 2
Screw
Right View
#49
Right View
Right View Right View
Front View
#49
Libs
Flexible flat cable
Flexible boards
Flexible flat cable
#49
2 Flexible flat cables → Flexible boards → #49 X 4
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
