Sony ICD-UX71 - Exploded Views; Case Front Section Exploded View

31
ICD-UX71/UX71F/UX81/UX81F/UX91F
SECTION 5
EXPLODED VIEWS
1 A-1565-719-A CASE (FSE) ASSY (SILVER)...(SILVER)
1 A-1567-152-A CASE (FBE) ASSY (BLACK)...(BLACK)
1 A-1567-157-A CASE (FRE) ASSY (RED)...(RED)
1 A-1567-167-A CASE (FPE) ASSY (PINK)...(PINK)
1 A-1567-541-A CASE (FWE) ASSY (WHITE)...(WHITE)
2 3-254-137-01 SCREW (1.4) (SILVER)...(SILVER,WHITE,PINK)
2 3-254-137-11 SCREW (1.4) (BLACK)...(BLACK,RED)
3 3-269-993-01 COVER (USB) (GRAY)...(SILVER)
3 3-269-993-11 COVER (USB) (BLACK)...(BLACK)
3 3-269-993-21 COVER (USB) (RED)...(RED)
3 3-269-993-31 COVER (USB) (PINK)...(PINK)
3 3-269-993-41 COVER (USB) (WHITE)...(WHITE)
4 3-234-449-09 SCREW (M1.4) (BLACK)...(BLACK,RED)
4 3-234-449-11 SCREW (M1.4) (SILVER)...(SILVER,WHITE,PINK)
5 A-1566-586-A CAP (AS) ASSY (SILVER)...(SILVER)
5 A-1566-587-A CAP (AW) ASSY (WHITE)...(WHITE)
5 A-1566-588-A CAP (AP) ASSY (PINK)...(PINK)
5 A-1566-589-A CAP (AB) ASSY (BLACK)...(BLACK)
5 A-1566-590-A CAP (AR) ASSY (RED)...(RED)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

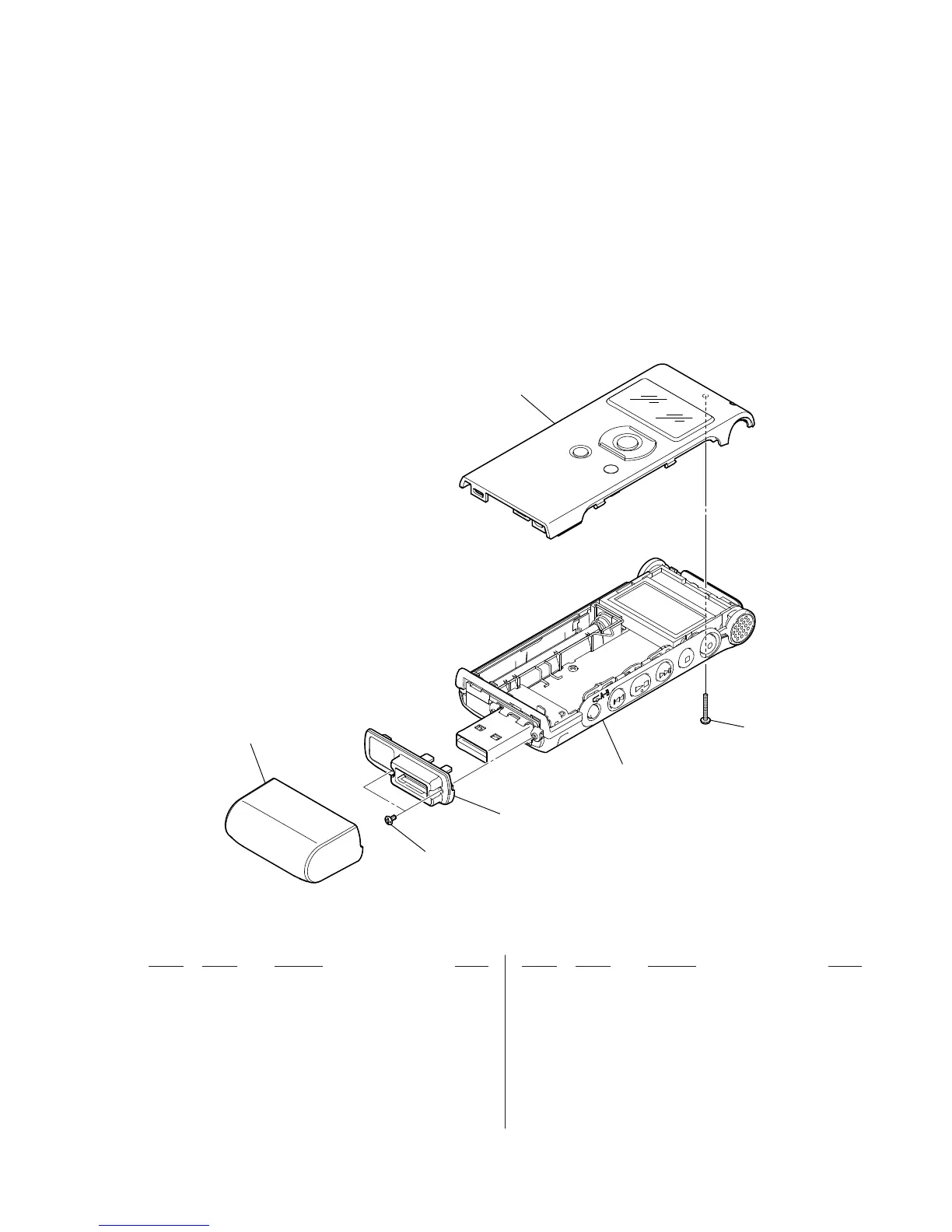

5-1. CASE FRONT SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
CH : Chinese model
KR : Korean model
LA : Latin American model
1
2
MAIN board section
3
4
5
