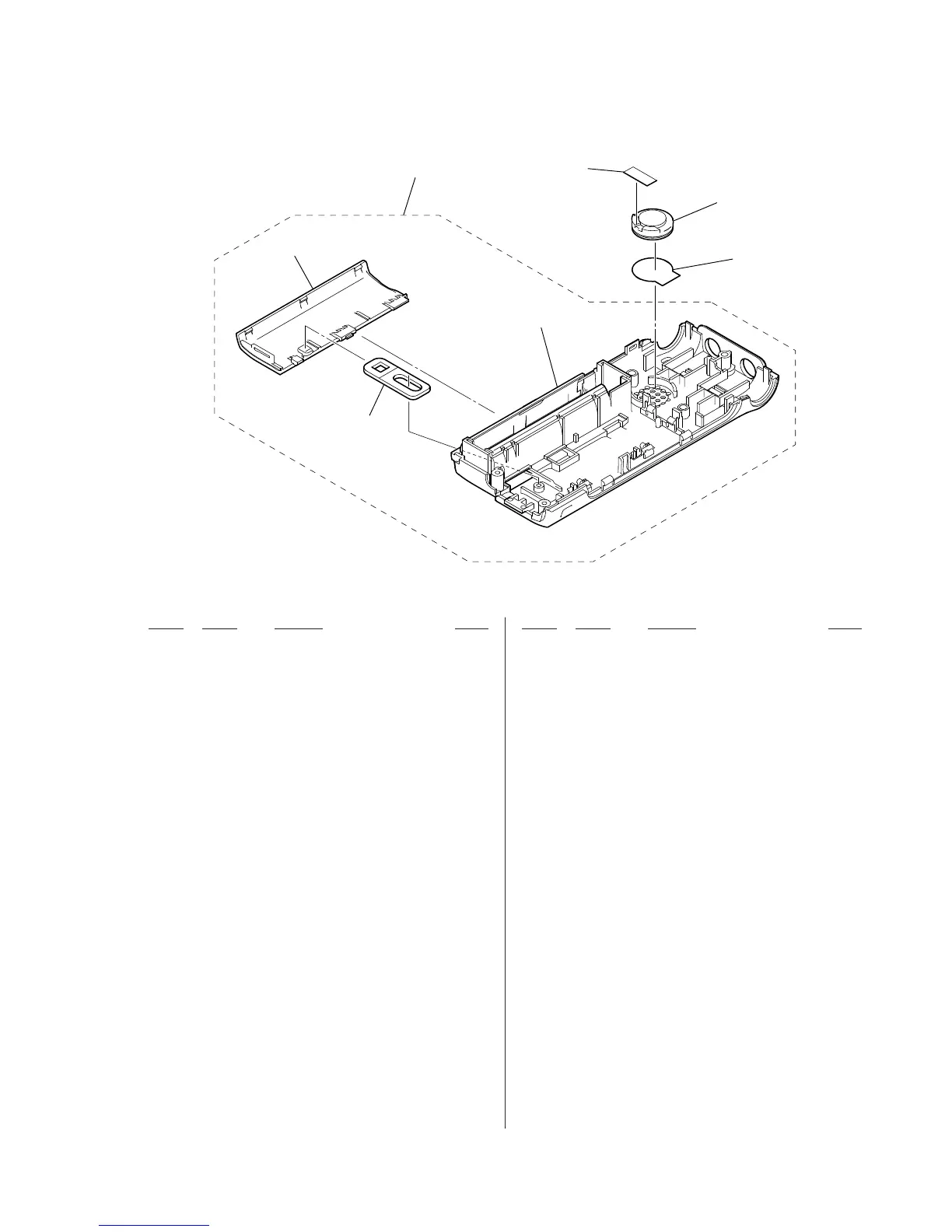

Sony ICD-UX71 - Case Rear Section Exploded View

33
ICD-UX71/UX71F/UX81/UX81F/UX91F
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1565-721-A CASE (RWC9) SUB ASSY (WHITE)...(WHITE)
(UX91F:CH)
101 A-1565-731-A CASE (RSC8) SUB ASSY (SILVER)...(SILVER)
(UX81F:CH)
101 A-1565-736-A CASE (RSC7) SUB ASSY (SILVER)...(SILVER)
(UX71F:CH)
101 A-1567-154-A CASE (RBC9) SUB ASSY (BLACK)...(BLACK)
(UX91F:CH)
101 A-1567-159-A CASE (RWC8) SUB ASSY (WHITE)...(WHITE)
(UX81F:CH)
101 A-1567-163-A CASE (RBC8) SUB ASSY (BLACK)...(BLACK)
(UX81F:CH)
101 A-1567-166-A CASE (RPC8) SUB ASSY (PINK)...(PINK)
(UX81F:CH)
101 A-1567-170-A CASE (RBC7) SUB ASSY (BLACK)...(BLACK)
(UX71F:CH)
101 A-1567-175-A CASE (RBE9) SUB ASSY (BLACK)...(BLACK)
(UX91F:E,KR)
101 A-1567-214-A CASE (RRE9) SUB ASSY (RED)...(RED)
(UX91F:E)
101 A-1567-227-A CASE (RS77) SUB ASSY (SILVER)...(SILVER)
(UX71:AEP)
101 A-1567-239-A CASE (RP7F7) SUB ASSY (PINK)...(PINK)
(UX71F:AEP,LA)
101 A-1567-249-A CASE (RSE8) SUB ASSY (SILVER)...(SILVER)
(UX81F:E,KR)
101 A-1567-254-A CASE (RPE8) SUB ASSY (PINK)...(PINK)
(UX81F:E)
101 A-1567-260-A CASE (RB78) SUB ASSY (BLACK)...(BLACK)
(UX81:AEP)
101 A-1567-268-A CASE (RR7F8) SUB ASSY (RED)...(RED)
(UX81F:AEP,LA)
101 A-1567-304-A CASE (RSE7) SUB ASSY (SILVER)...(SILVER)
(UX71F:E,KR,LA)
101 A-1567-317-A CASE (RB77) SUB ASSY (BLACK)...(BLACK)
(UX71:AEP)
101 A-1567-543-A CASE (RWE7) SUB ASSY (WHITE)...(WHITE)
(UX71F:E)
101 A-1567-551-A CASE (RBL8) SUB ASSY (BLACK)...(BLACK)
(UX81:LA)
101 A-1567-558-A CASE (RRL8) SUB ASSY (RED)...(RED) (UX81:LA)
101 A-1567-608-A CASE (RBLF8) SUB ASSY (BLACK)...(BLACK)
(UX81F:LA)
101 A-1567-631-A CASE (RSL7) SUB ASSY (SILVER)...(SILVER)
(UX71:LA)
101 A-1567-636-A CASE (RPL7) SUB ASSY (PINK)...(PINK)
(UX71:LA)
101 A-1602-745-A CASE (RRC8) SUB ASSY (RED)...(RED)
(UX81F:CH)
101 A-1602-748-A CASE (RWC7) SUB ASSY (WHITE)...(WHITE)
(UX71F:CH)
102 3-269-991-41 LID, BATTERY CASE (BLACK)...(BLACK)
102 3-269-991-51 LID, BATTERY CASE (SILVER)...(SILVER)
102 3-269-991-61 LID, BATTERY CASE (WHITE)...(WHITE)
102 3-269-991-71 LID, BATTERY CASE (PINK)...(PINK)
102 3-269-991-81 LID, BATTERY CASE (RED)...(RED)
103 3-270-028-01 HINGE (BATTERY CASE LID)
(GRAY)...(SILVER,WHITE,PINK)
103 3-270-028-11 HINGE (BATTERY CASE LID)
(BLACK)...(BLACK,RED)
104 2-667-105-01 SHEET (SPEAKER)
105 2-671-980-01 SHEET (XTAL), INSULATING
SP901 1-858-154-11 LOUD SPEAKER (1cm)
5-3. CASE REAR SECTION
SP901
not supplied
102
103
101
105
104
