Sony ICD-UX71 - Board Removal

ICD-UX71/UX71F/UX81/UX81F/UX91F
8

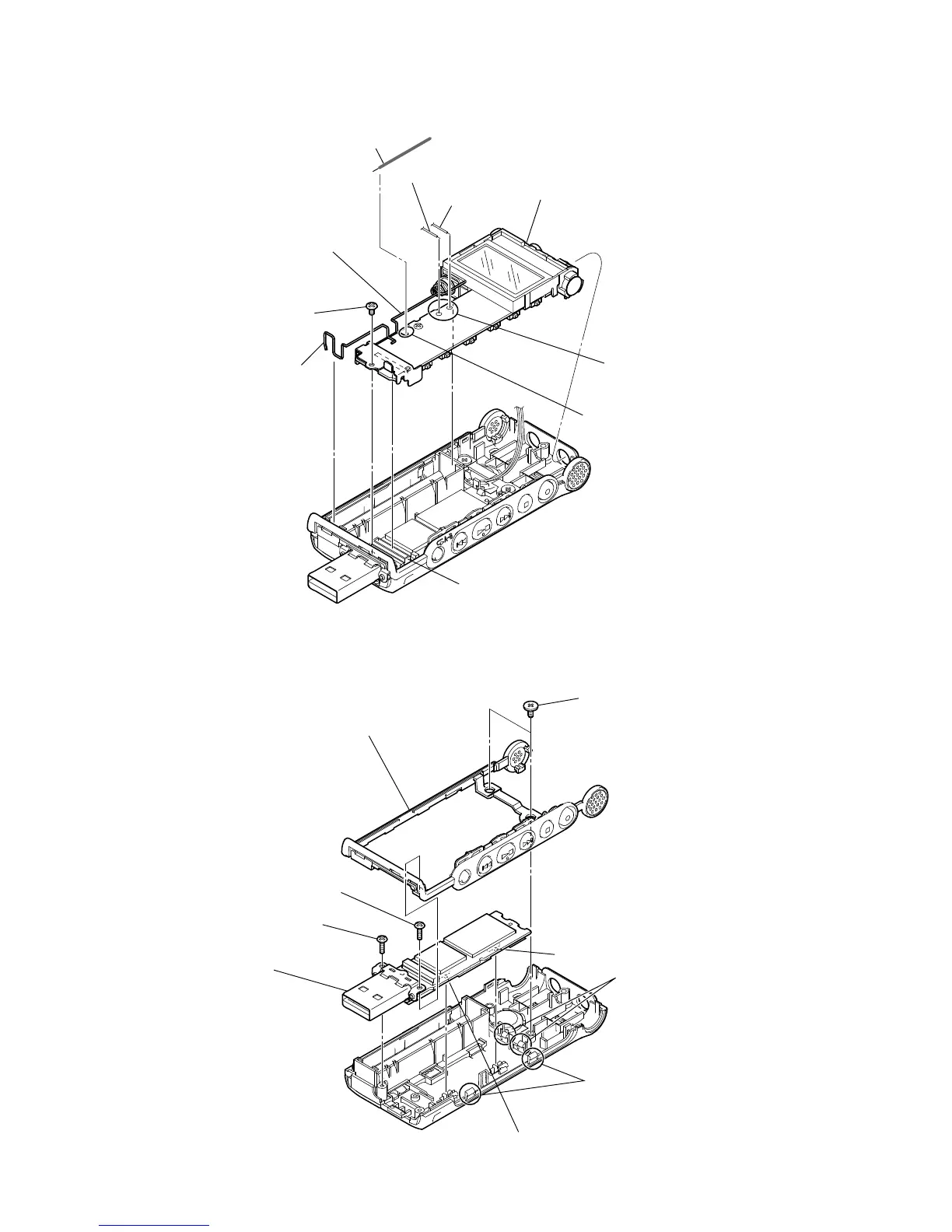

2-3. AUDIO BOARD ASSY
2-4. MAIN BOARD ASSY
black
orange
blue
CN8002
 screw
(M 1.4)
 Remove the two solders.
 Remove the solder.
 AUDIO board assy
 battery terminal (+)
 battery terminal (–)
S8001
S8000
 two screws
(tapping (B 1.4) )
 screw
(B 1.4 )
 screw
(B 1.4 )
 two claws
 two claws
 ornamental strip (AS) assy
 MAIN board assy
