ICD-UX71/UX71F/UX81/UX81F/UX91F
6
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.
2-1. COVER (USB)
2-1. COVER (USB)
(Page 6)
2-2. CASE ASSY
(Page 7)
SET
2-3. AUDIO BOARD ASSY
(Page 8)
2-4. MAIN BOARD ASSY
(Page 8)

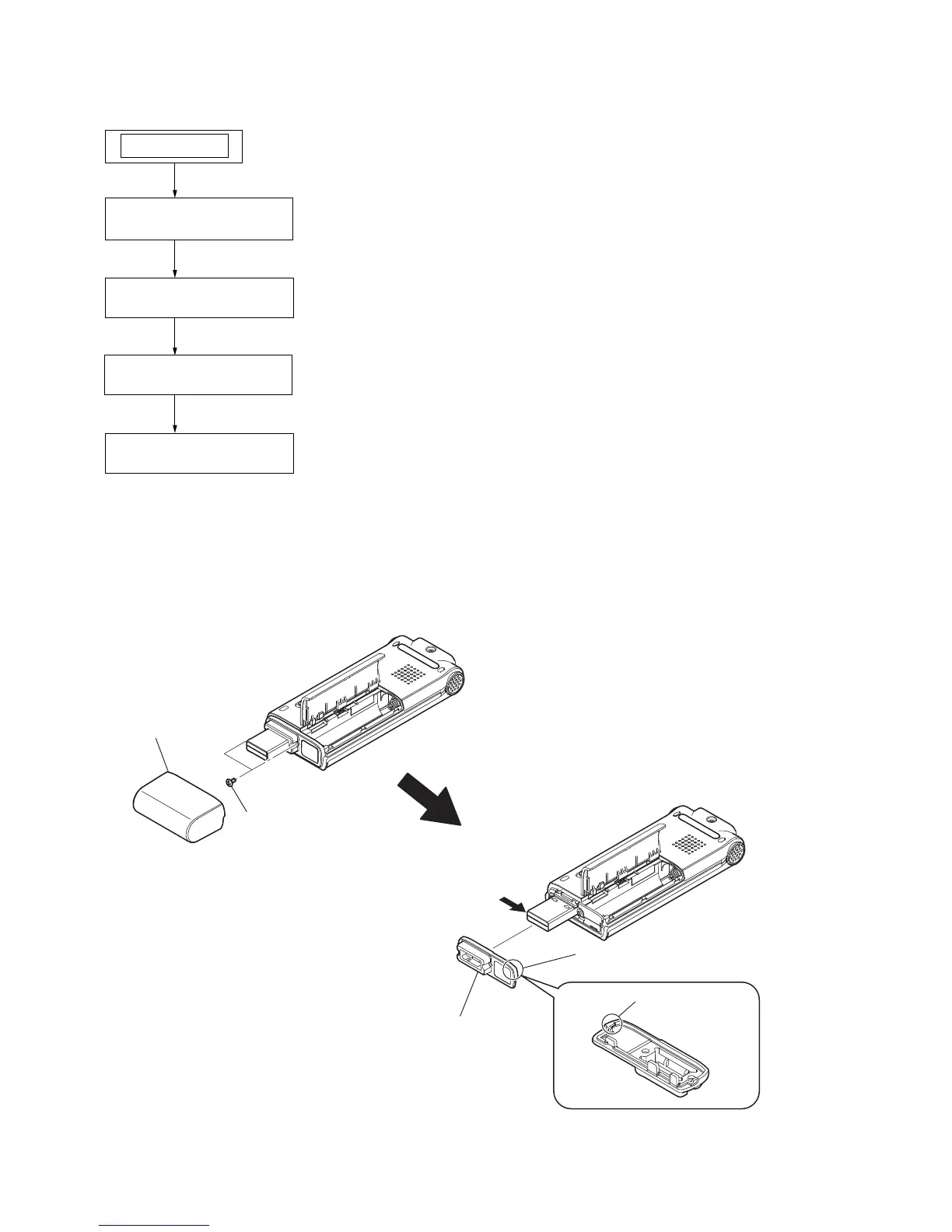

claw
 two screws
(M 1.4)
 Unfasten the claw of the
cover (USB) while pressing
the USB connector.
 cap assy
 claw
 cover (USB)
