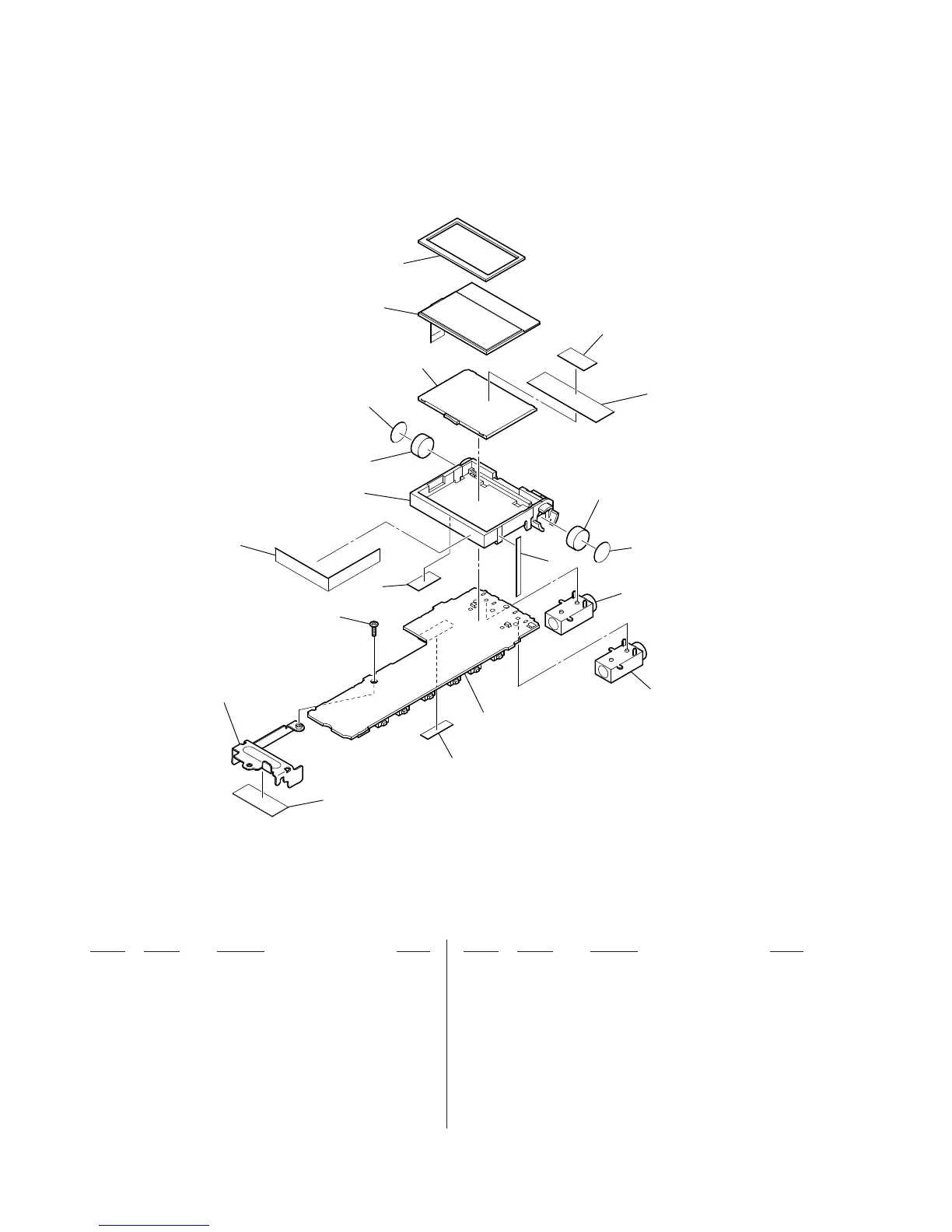

Sony ICD-UX71 - Audio Board Section Exploded View

34
ICD-UX71/UX71F/UX81/UX81F/UX91F
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-270-003-01 CUSHION (LCD)
152 3-286-614-01 SHEET, ADHESIVE
153 3-270-005-01 SHEET (LIGHT GUIDE PLATE)
154 3-270-004-01 PLATE, LIGHT GUIDE
155 3-096-796-01 NET (MICROPHONE S)
156 3-270-001-01 HOLDER (LCD)
157 A-1565-362-A AUDIO BOARD, COMPLETE
(UX71:AEP/UX81:AEP)
157 A-1565-700-A AUDIO BOARD, COMPLETE
(UX71F:EXCEPT LA/UX81F:EXCEPT LA/UX91F)
157 A-1565-702-A AUDIO BOARD, COMPLETE (UX71:LA/UX81:LA)
157 A-1567-613-A AUDIO BOARD, COMPLETE
(UX71F:LA/UX81F:LA)
158 3-234-449-11 SCREW (M1.4)
159 3-283-506-01 SHEET (LCD HOLDER)
160 3-035-166-21 SPACER (LCD)
161 2-671-980-01 SHEET (XTAL), INSULATING
J1001 1-822-040-31 JACK (i)
J1002 1-822-040-21 JACK (m)
LCD901 1-802-574-21 DISPLAY PANEL, LIQUID CRYSTAL
MIC902 1-542-785-11 MICROPHONE, ELECTRET CELECTRET (L-CH)
MIC903 1-542-785-11 MICROPHONE, ELECTRET CELECTRET (R-CH)
5-4. AUDIO BOARD SECTION
MIC902
not supplied
not supplied
J1001
J1002
MIC903
LCD901
151
152
153
154
155
155
156
152
160
161
159
158
157
