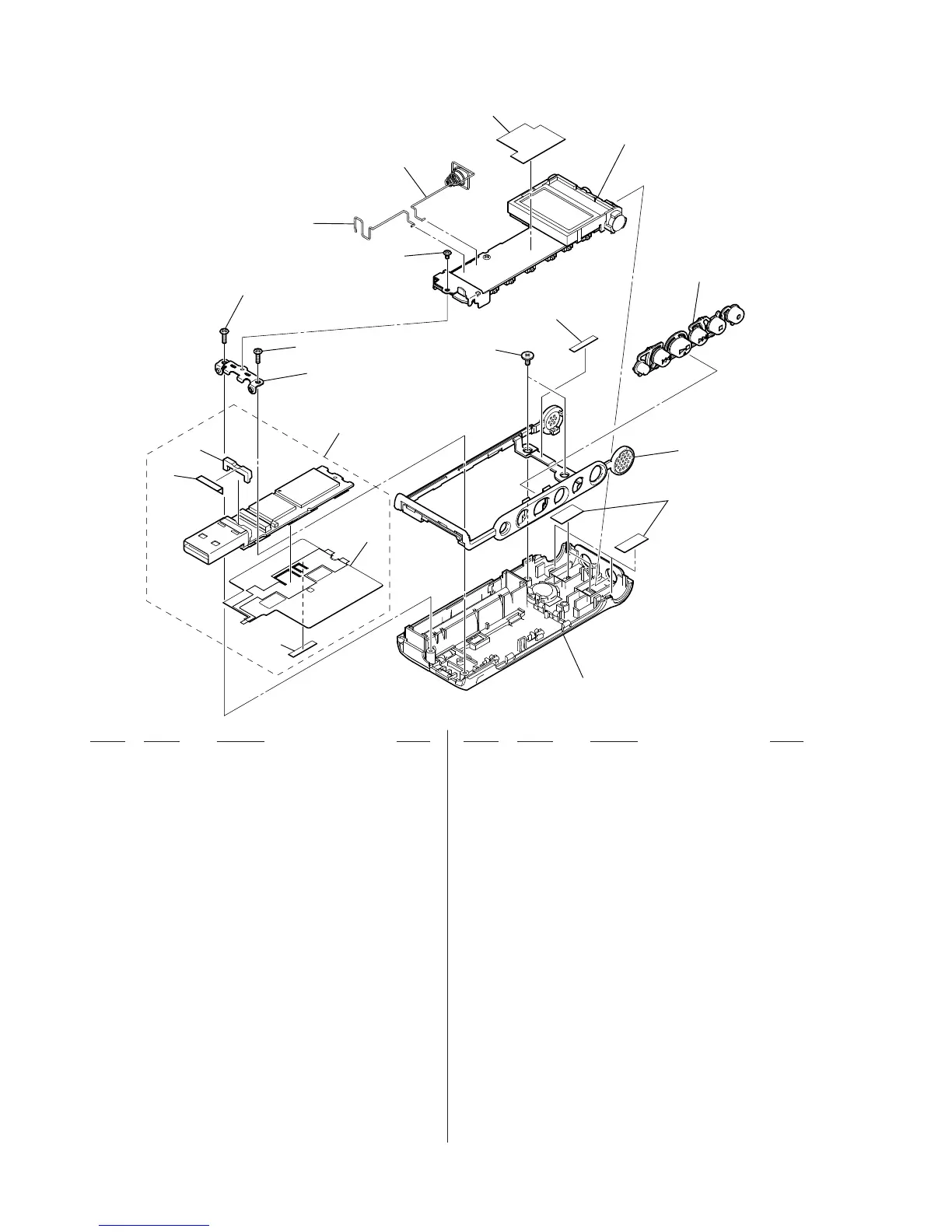

Sony ICD-UX71 - Main Board Section Exploded View

32
ICD-UX71/UX71F/UX81/UX81F/UX91F
case rear section
AUDIO board section
not supplied
not supplied
51
52
53
55
56
54
57
58
59
59
59
60
61
62
63
54
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-234-449-11 SCREW (M1.4)
52 3-270-025-01 TERMINAL (+), BATTERY (EXCEPT LA)
52 3-270-025-11 TERMINAL (+), BATTERY (LA)
53 4-112-936-01 TERMINAL (–), BATTERY (EXCEPT LA)
53 4-112-936-11 TERMINAL (–), BATTERY (LA)
54 2-671-980-01 SHEET (XTAL), INSULATING
55 3-269-995-21 BUTTON (SIDE)
56 2-548-944-01 SCREW, TAPPING (B1.4)
57 3-269-992-21 STRIP, ORNAMENTAL
58 4-126-025-01 SHEET (MAIN), COPPER LEAF
59 3-254-136-11 SCREW (B1.4)
60 3-286-614-01 SHEET, ADHESIVE
61 3-282-027-01 SPACER (USB)
62 X-2342-829-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX91F:CH)
62 X-2342-830-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX91F:E)
62 X-2342-831-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX91F:KR)
62 X-2342-833-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81:AEP)
62 X-2342-834-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81F:CH)
62 X-2342-835-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81F:E)
62 X-2342-836-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81F:KR)
62 X-2342-844-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81:LA)
62 X-2342-845-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81F:LA)
62 X-2342-850-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71:AEP)
62 X-2342-851-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71F:CH)
62 X-2342-852-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71F:E)
62 X-2342-853-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71F:KR)
62 X-2342-854-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71F:AEP)
62 X-2342-857-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71:LA)
62 X-2342-858-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX71F:LA)
62 X-2342-874-1 MAIN BOARD, COMPLETE (for SERVICE)
(UX81F:AEP)
63 4-121-969-01 SHEET (TACT)
5-2. MAIN BOARD SECTION
