ICF-25L

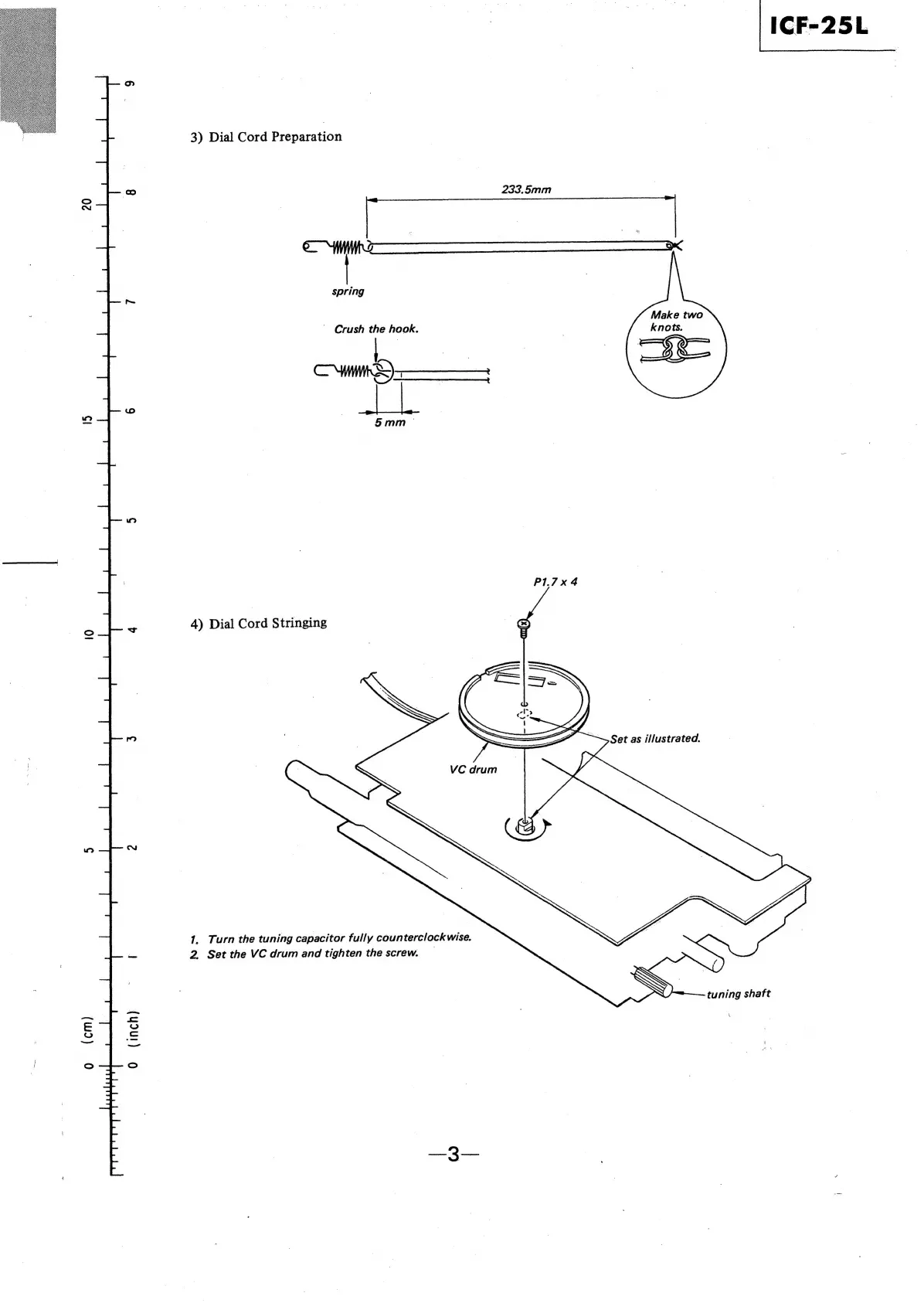

3) Dial Cord Preparation
233.5mm
CMR
spring
Make two
knots.
2
Crush the hook.
5mm
P1,.7x4
4) Dial Cord Stringing
Set as illustrated.
Se VC drum
1. Turn the tuning capacitor fully counterclockwise.
2 Set the VC drum and tighten the screw. —
; /
SS . tuning shaft
i]
(cm)
(inch)
0
0
