ICF-CDK70
10

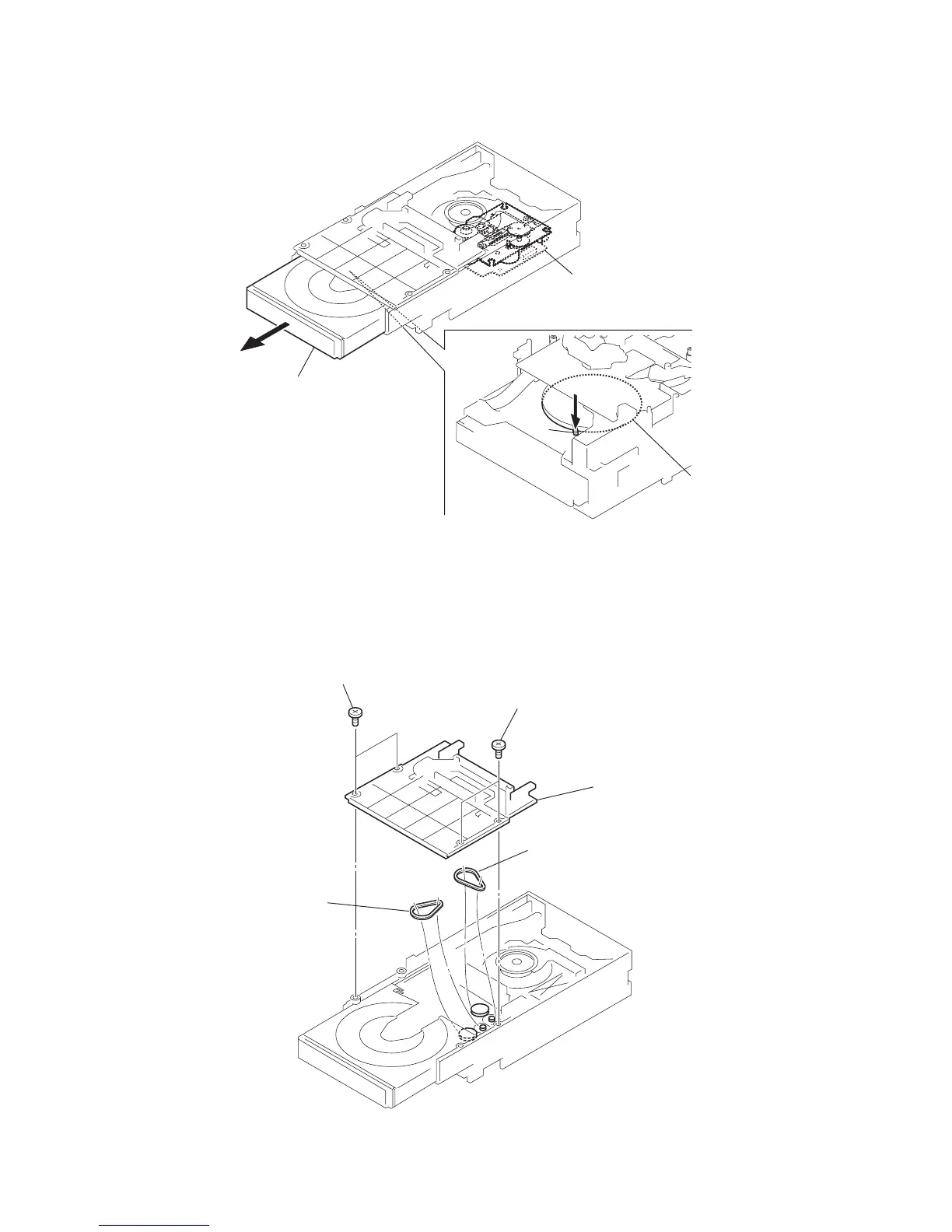

3-8. HOW TO PULL OUT TRAY
3-9. BELT (DLM3A)
"
optical pick-up block
Note: When the optical pick-up block in which
the optical pick-up block is chucking and
which cannot draw out TRAY is chucking,
please draw out TRAY after removing an
optical pick-up block.
gear
Pull out the tray.
A gear " portion can be pushed to the limit of
the direction of an arrow.
cover
belt (DLM3A)
belt (DLM3A)
two screws
two screws
To Next Page
