Sony ICF-CDK70 - CD Mechanism Deck Section (DLM3 A23-11)

39
ICF-CDK70
201 A-1226-316-A CD BOARD, COMPLETE
202 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
203 4-227-045-31 SPRING (INSULATOR), COIL
204 4-227-549-11 INSULATOR
205 1-797-193-12 MECHANICAL, CD (DLM3A23-11)
206 1-832-025-21 CABLE, FLEXIBLE FLAT (16 CORE)
0 207 8-820-070-07 OPTICAL PICK-UP BLOCK (KSM-213CCP/C2NP)
208 2-632-062-11 BELT (DLM3A)
210 1-833-881-21 CABLE, FLEXIBLE FLAT (14 CORE)
211 1-832-836-21 CABLE, FLEXIBLE FLAT (13 CORE)
212 3-254-143-01 SCREW (B3), (+) BV TAPPING
#5 7-685-853-04 SCREW +BVTT 2X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

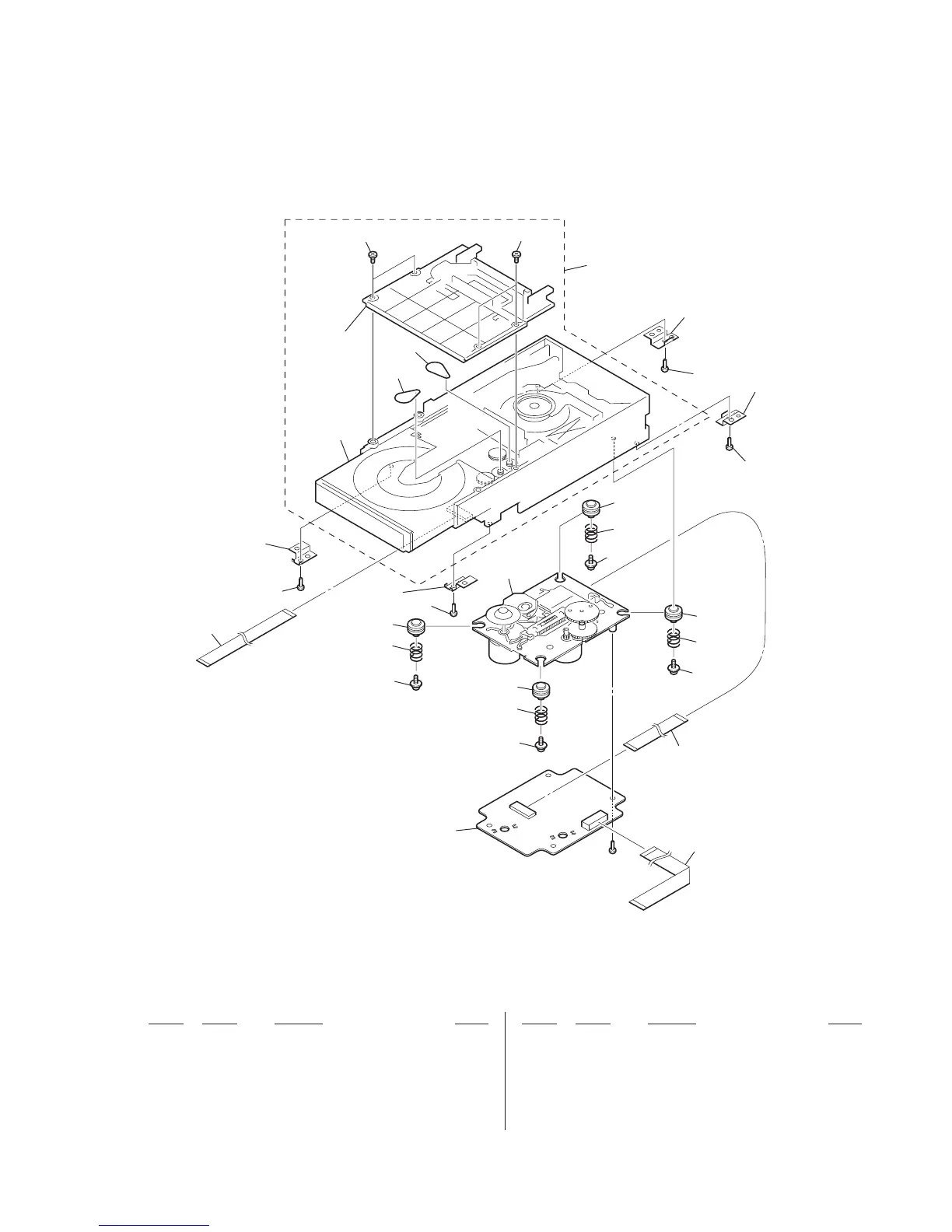

7-5. CD MECHANISM DECK SECTION
(DLM3A23-11)
206
201
204
203
212
212
212
211
212
210
207
204
203
202
202
204
203
202
202
204
203
208
208
205
not supplied
not supplied
not supplied
not supplied
not supplied
#5
not supplied
not supplied
not supplied
