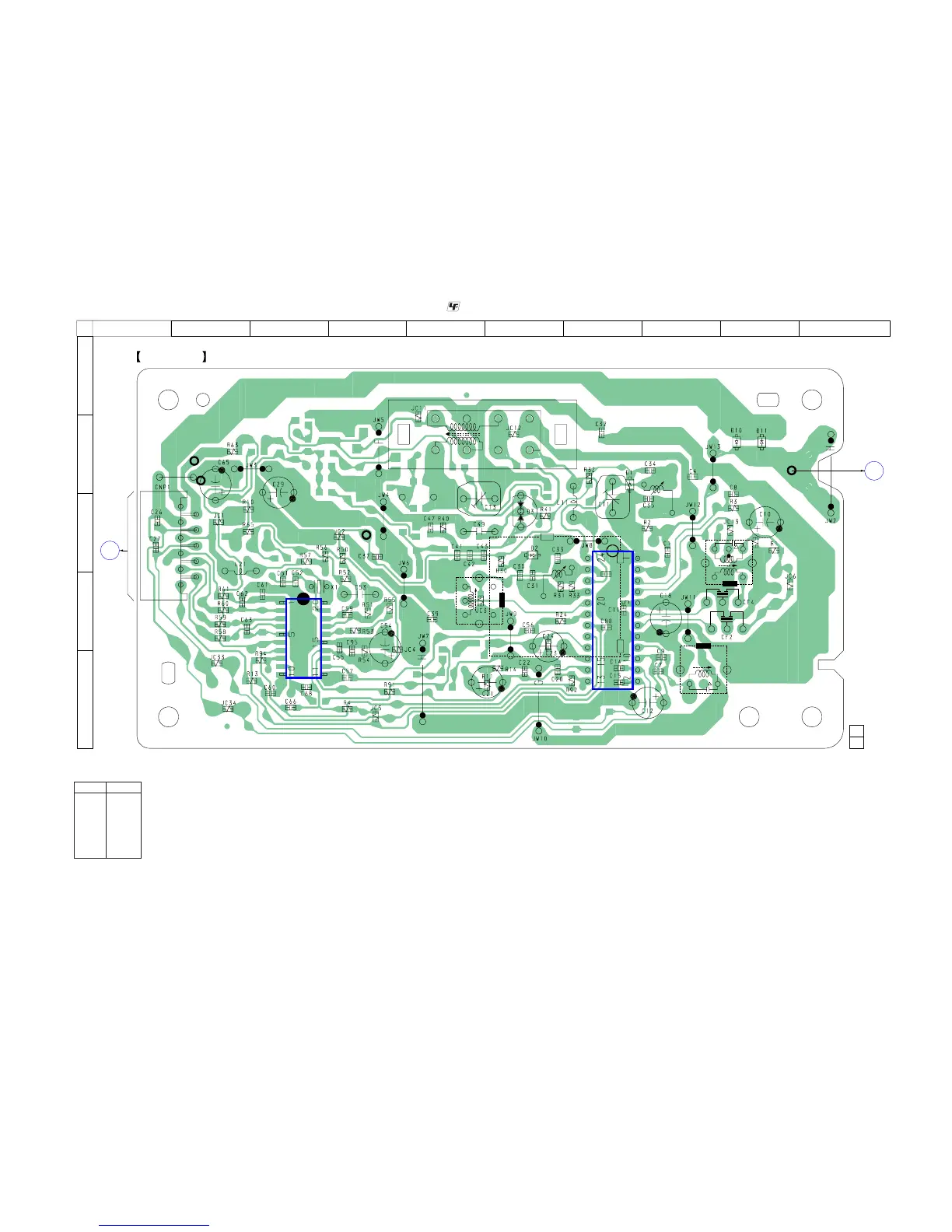

6-3. PRINTED WIRING BOARD - TU Board -
IC2
IC1
TU BOARD
1-863-438-
11
(11)
L4
L3
AM FERRITE-ROD
ANTENNA
L2
T2
T1
L1
TP (GND)
TP (VT)
TP
(ANT)
123 456 7 89 10
A
B
C
D
1
11
C13
R5
E
MAIN
BOARD
B
POWER
BOARD
CN902
J
JW14
TP (CV)
(SHIELD CASE)
Ref. No. Location
• Semiconductor
Location
D1 B-7
D2 C-6
D3 C-6
D10 B-9
D11 B-9
IC1 D-7
IC2 D-3
• : Uses unleaded solder.
• See page 17 for Circuit Boards Location.
(Page 28)
(Page 24)
