ow to Use the Supplied SW Com pact Antenna—For better sw reception
i ^
sualty the telescopic antenna is sufficient for SW reception. However, in t
etal or concrete building, the use of the supplied SW compact antenna is
commended.

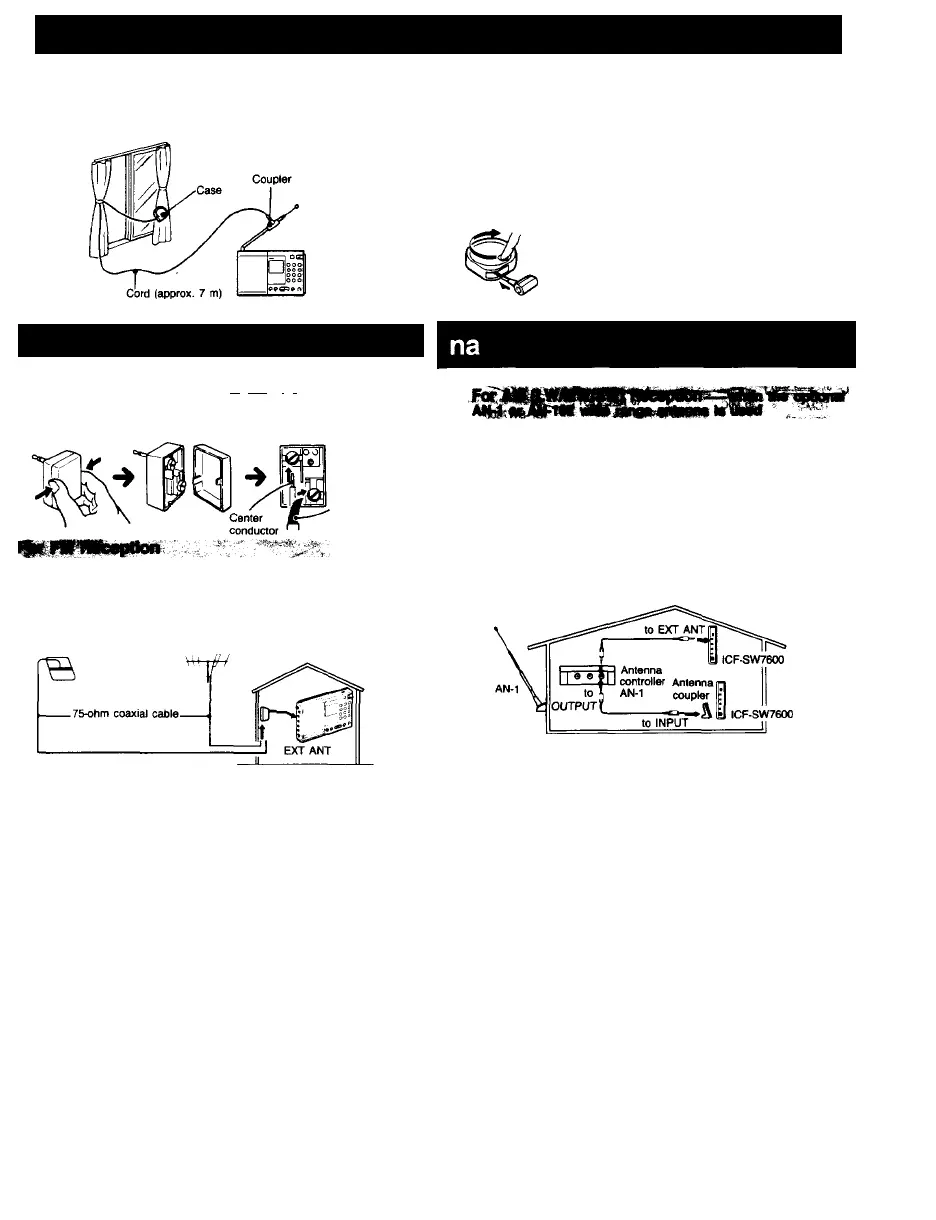

1 Fully pull out the cord from the case.
2 Attach the coupler to the telescopic antenna.
3 When the window can be oper>ed:
Extend the cord and the case out through the window, after making sure
there is no danger.
When the window cannot be opened:
Fully exter>d the cord along the frvne of the window.
After using
How to Use an Optional Anten
I Anl«IUW Q>HB*ClBrfe:g
Connect an optional coaxial cable to the supplied antenna connector.
Connect the antenna connector to the EXT ANT jack of the ICF-SW7600.
Shield braid
1
a steel-frame building, a mountainous area, at a distance from the
ansmitter or in a location where ignition noise is severe, FM reception may
e unsatisfactory with the telescopic antenna. In this case, connect a
ommercially available external FM antenna with a 75-ohm coaxial cable.
Method A
With a connecting cord, connect the OUTPUT jack of the antenna controller
(supplied with the AN-1 or the AN-102) and the EXT ANT jack of the
ICF-SW7600,
Method B (for LW/MW reception onty)
1 With a connecting cord, connect the OUTPUT jack of the antenna
controller and the INPUT jack of the antenna coupler (supplied with the
AN-1 or AN-102).
2 Put the antenna coupler near the ICF-SW7600.
Example: When the AN-1 is used.
Notes
• When receiving MW or LW broadcasts without an external antenna, be sure
to disconnect a SW external antenna. Otherwise, you cannot receive them
as the built-in ferrite bar antenna does not function.
• If there is lightening, do not touch the wire of an external antenna and
disconnect its AC power adaptor (if connected) immediately.
• When using an external antenna, retract the telescopic antenna.
• Locate an outdoor antenna as far away from the street as possible.
• For details about an external antenna, refer to its instruction manual.
