Signal Selection
Bank
Bus name
Cross-point
button row
Delegation operation
M/E-1
Background
A bus
Background
A row
–
Background
B bus
Background
B row
–
Key1 bus
2nd row
In the 1st row, press
the button to which the
corresponding key
was assigned in the
Setup menu, turning it
on.
Key2 bus
Key3 bus
Key4 bus
Chapter
3
Signal
Selection
and
Transitions
Signal Selection
You carry out signal selection in the cross-point control
block of each bank.
2nd row
1st row
These buttons are identified by numbers common to all of
the banks and blocks, and a signal is assigned to each
number.
The basis of signal selection is to select, in a cross-point
button row, the cross-point button to which the desired
signal is assigned.
Selecting M/E reentry input signals
For example, a video signal created on the M/E bank can
be imported as an input signal on the PGM/PST bank. In
this way, you can use a video created on any bank as an
input signal on another bank. These signals are referred to
as “M/E reentry input” signals.

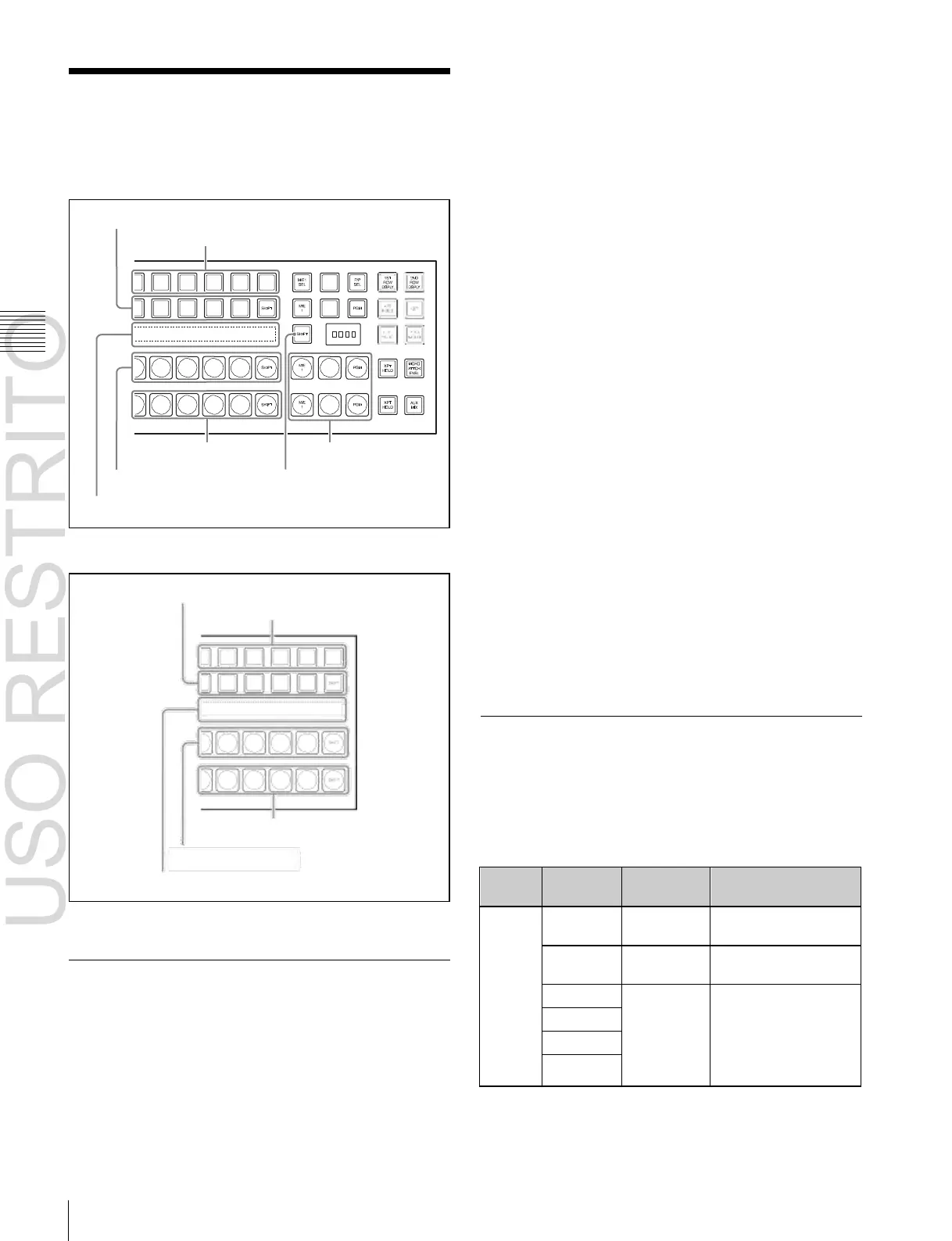

Background B row
Background A row
Source name display
Reentry buttons
Dedicated SHIFT button
To select using a reentry button (ICP-6520/6530)
Output video (M/E reentry inputs) from each bank are
assigned to the reentry buttons on the cross-point control
block.
For example, to select the reentry input from the M/E-1
bank as the background B input to the PGM/PST bank, in
the PGM/PST cross-point control block, press the [M/E1]
button in the background B row.
To select using an assignment to a cross-point
Cross-point control block (ICP-6520/6530)
2nd row
1st row
button (ICP-3000/3016)
To select an M/E reentry input signal using the cross-point
buttons, the signal must be assigned beforehand in the
Setup menu ( 1 p. 329).
For example, if the program output from the M/E-1 bank
(M/E1OUT1) is assigned to an arbitrary cross-point
button, the signal can be used as the M/E-1 reentry input at
any time.
Bus Selection
Background B row
Background A row
Source name display
Each row of cross-point buttons is shared by multiple
buses.
The following table illustrates the correspondence
between buses and cross-point button rows, and the
delegation operations.
Cross-point control block (ICP-3000/3016)
Basics of Signal Selection
Each of the switcher banks have cross-point buttons and
reentry buttons in their cross-point control blocks.
The ICP-6520 and ICP-6530 both have 24 cross-point
buttons and three reentry buttons.
The ICP-3000 and ICP-3016 have 24 and 16 cross-point
buttons, respectively. The ICP-3000 and ICP-3016 do not
have reentry buttons.
