付帯項目 パネル機構設計部 2014.7.1 120

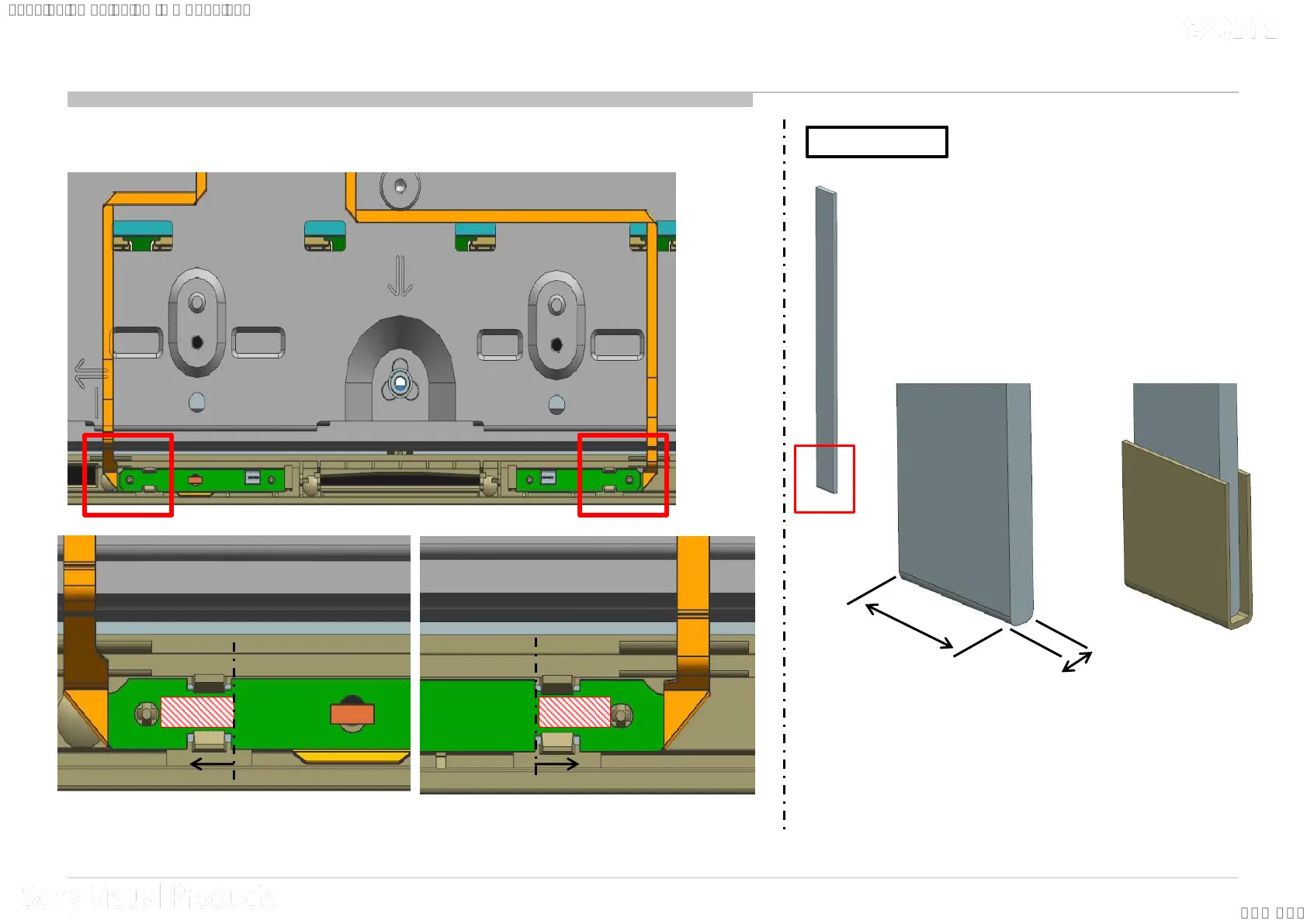

Mic FPC assembly
Jig image
Push outside of FPC hook recess by assembly plastic jig
push area Push area
Thickness：1～1.5mm
Width： 5mm
Length：Easy to hold size
Material：Plastic “recommendation”
If use sheet metal, deburring edge and add
cushion for protecting edge.
Sheet metal
add cushion
5
1～1.5
120
