Sony KD-55A9F - Page 57

57

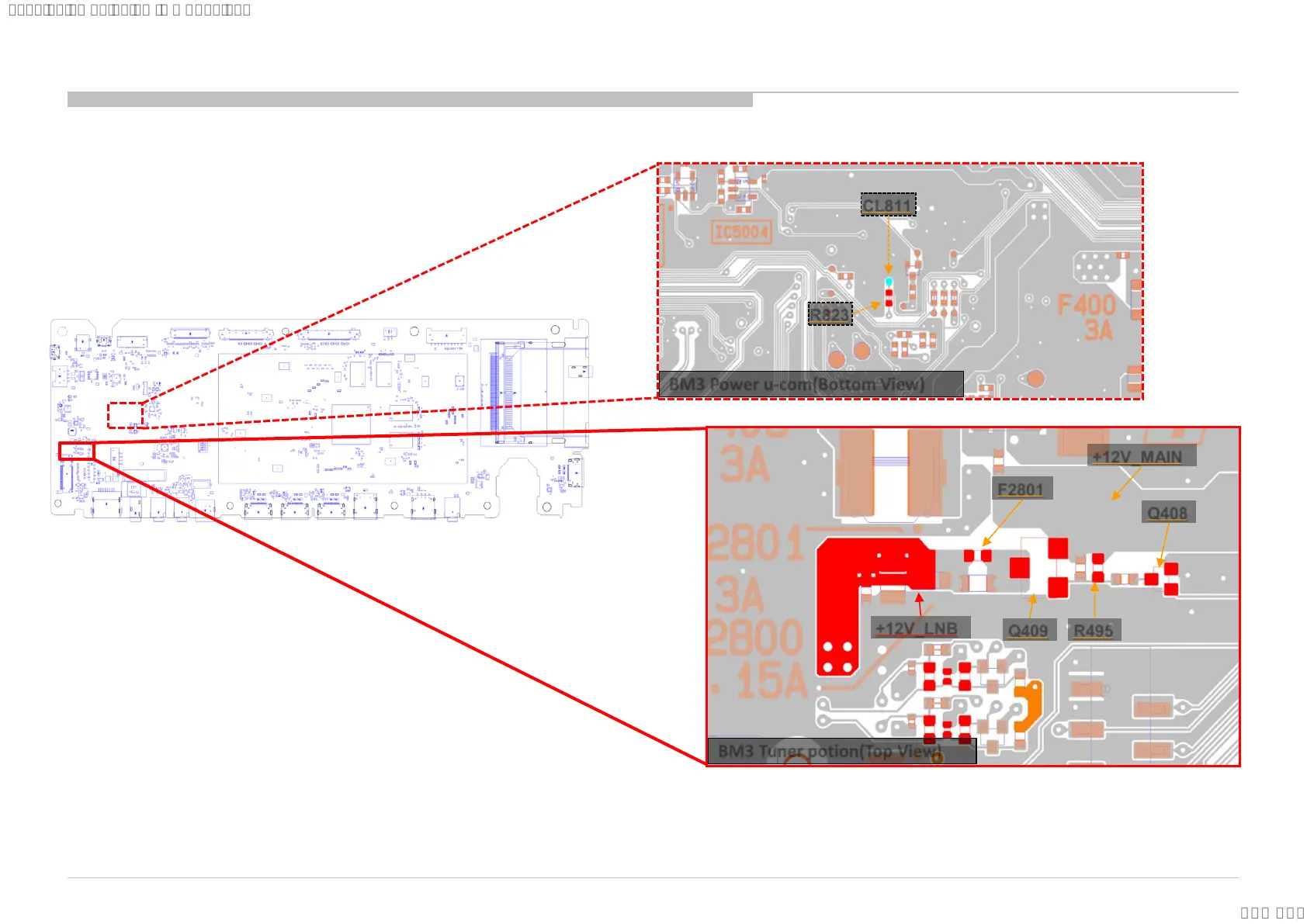

4.4 NO PICTURE: @ TUNER (BM3)
BM3 (Top View)
12V LNB Voltage line
R823
CL811
Q408
F2801
R495 Q409
+12V_LNB
+12V_MAIN
BM3 Power u-com(Bottom View)
BM3 Tuner potion(Top View)
SYSSET
