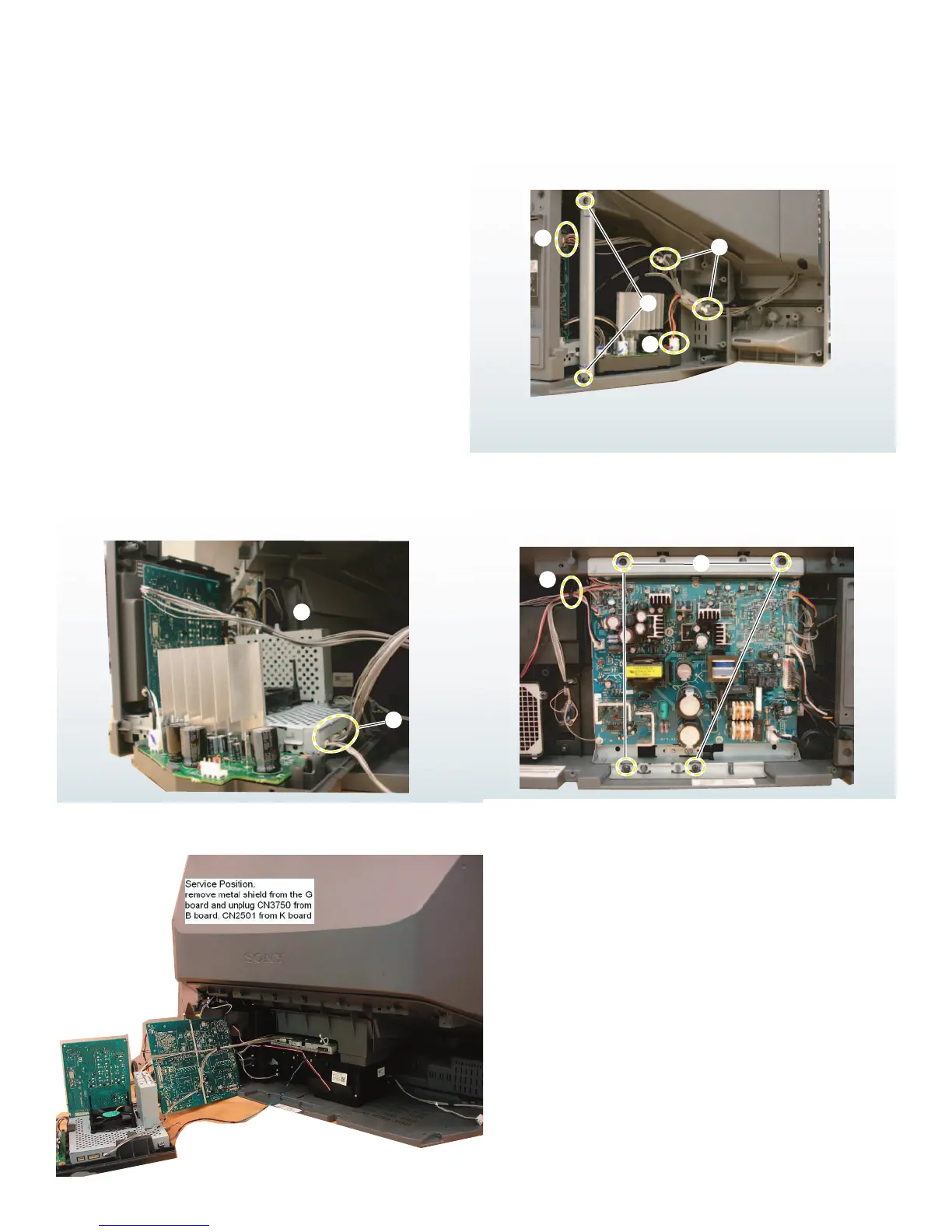

1-3. CHASSIS REMOVAL AND SERVICE POSITION
3
1
4
2
5
6
7
8
1
Remove 2 screws to release the Left Stay
2
Disconnect CN8400 from U Board
3
Disconnect CN2500 from K Board
4
Release wires from purse locks
5
Gently pull chassis out towards the right of the TV to access
connectors on B2 Block Assembly.
6
Disconnect CN308 and CN3750 on B2 Block Assembly
7
Release connectors from Wire Holders
8
Remove 4 screws to release the G Board
9
Remove 6 screws to detach Metal Shield from G Board
Using the picture above as a reference, disconnect CN6018,
CN6801, CN6804, CN6803, CN6800, CN6805, CN6900,
CN6901, CN6009, CN6002, CN6904, and CN6010.
1-4. G BOARD REMOVAL
