Sony KF-42E200A - Mirror Assembly and Mirror Cover Assembly Removal

KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
22
1-10. MIRROR ASSEMBLY AND MIRROR COVER ASSEMBLY REMOVAL
3
2
1
1

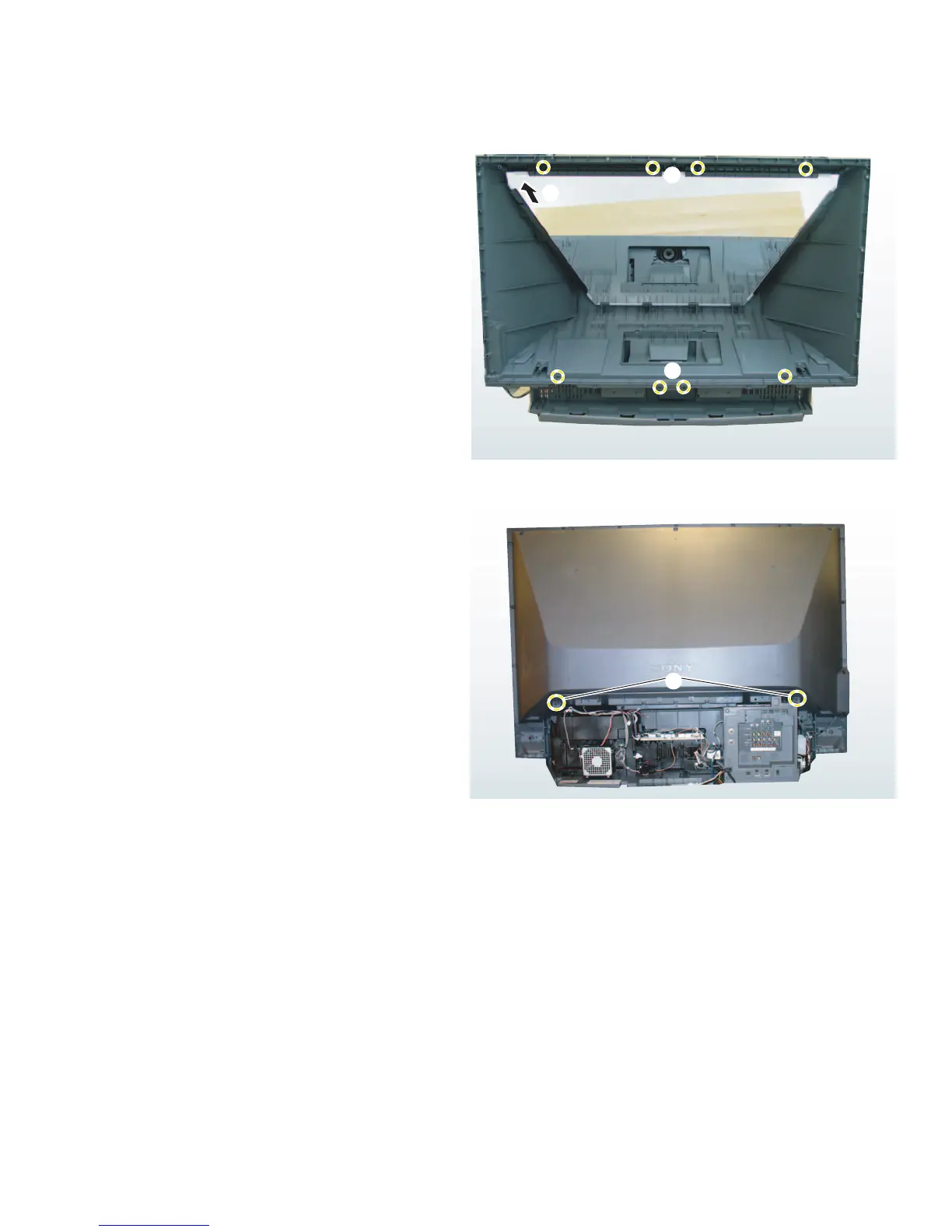

Remove 4 screws to release the 2 top mirror brackets.
2
Using caution gently lift the mirror up and out of the mirror
cover.
3
Remove 4 screws to detach the front of the Mirror Cover
Assembly from the cabinet.
4
Remove 2 screws from back of the cover and then lift the
Mirror Cover Assembly off of the cabinet.
4
CAUTION: When removing the Mirror Cover Assembly be sure to clean the Mirror and Diffusion Plate(s) to remove any dust particles.
