Sony KF-42E200A - Section 4: Exploded Views; Covers

76
KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.

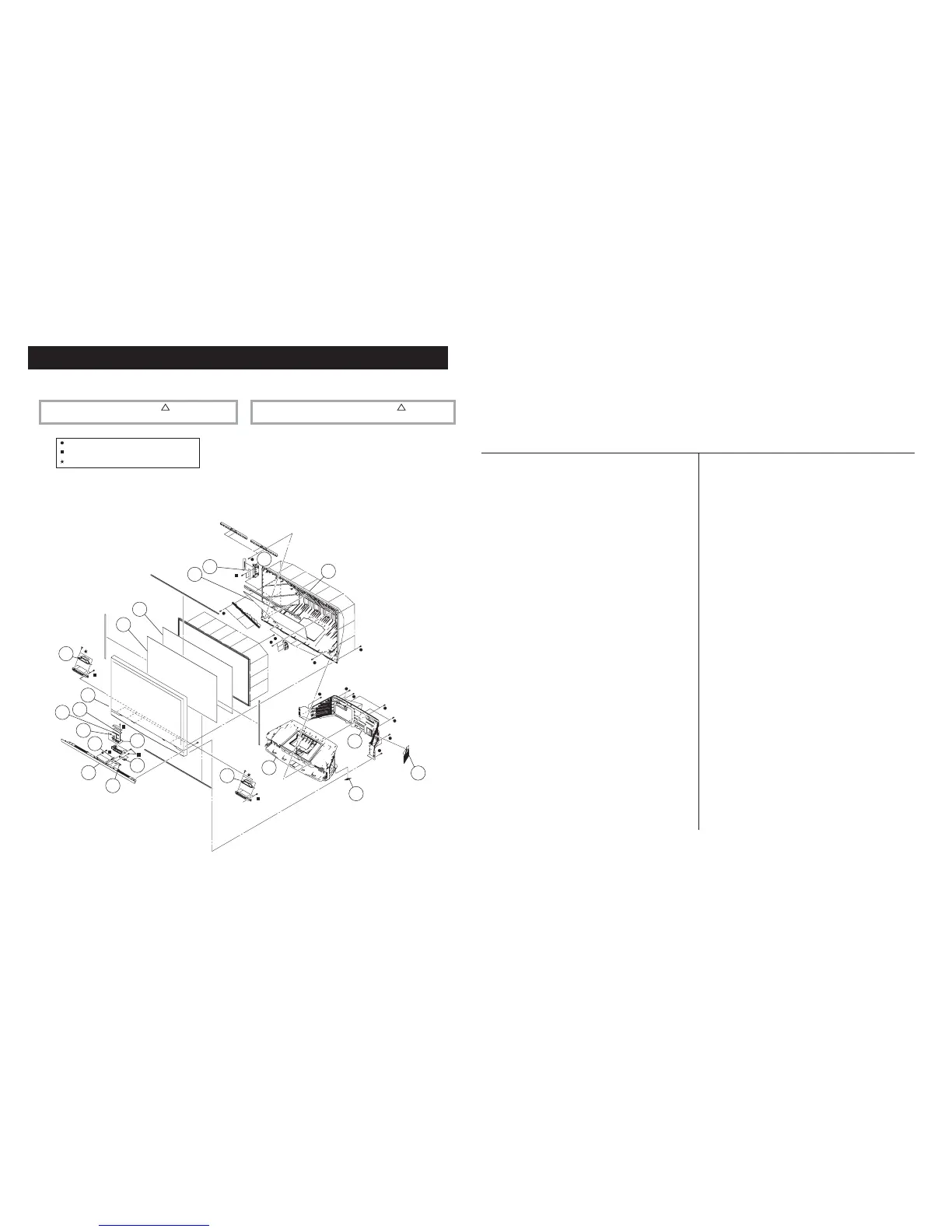

SECTION 4: EXPLODED VIEWS
1 2-590-903-21 GRILL, SPEAKER (42)
(KF-42E200A ONLY)
1 2-590-903-31 GRILL, SPEAKER (42)
(KF-42E201A ONLY)
1 2-590-908-41 GRILL, SPEAKER (50)
(KF-50E200A ONLY)
1 2-590-908-51 GRILL, SPEAKER (50)
(KF-50E201A ONLY)
2 2-590-913-02 BUTTON, POWER
3 A-1177-120-A HB BOARD, MOUNTED
4 2-590-915-51 TRAY, CONTROL
5 A-1177-119-A HA BOARD, MOUNTED
6 2-590-914-02 BUTTON, MULTI
7 2-593-048-01 DAMPER
8 2-593-049-01 LATCH ASSEMBLY
9 A-1205-389-A SCREEN FRAME ASSEMBLY (42)
(KF-42E200A ONLY)
9 A-1205-390-A SCREEN FRAME ASSEMBLY (42)
(KF-42E201A ONLY)
9 A-1205-387-A SCREEN FRAME ASSEMBLY(50)
(KF-50E200A ONLY)
9 A-1205-388-A SCREEN FRAME ASSEMBLY (50)
(KF-50E201A ONLY)
10 2-590-449-12 PLATE (42L), DIFFUSION
(KF-42E200A/42E201A ONLY)
10 2-678-224-11 PLATE (50L), DIFFUSION
(KF-50E200A/50E201A ONLY)
11 2-590-450-11 PLATE (42F), DIFFUSION
(KF-42E200A/42E201A ONLY)
11 2-698-775-11 PLATE (50F), DIFFUSION
(KF-50E200A/50E201A ONLY)
12 A-1127-077-A MIRROR ASSEMBLY (42)
(KF-42E200A/42E201A ONLY)
12 A-1127-074-A MIRROR ASSEMBLY (50)
(KF-50E200A/50E201A ONLY)
4-1. COVERS
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
2-580-654-01 SCREW, +PWTP2 4X16TYPE2 IT-3
13 A-1161-597-A HC BOARD, MOUNTED
14 2-590-904-03 BRACKET, HC (42)
(KF-42E200A/42E201A ONLY)
14 2-590-909-02 BRACKET, HC (50)
(KF-50E200A/50E201A ONLY)
15 A-1127-078-A MIRROR COVER ASSEMBLY (42)
(KF-42E200A/42E201A ONLY)
15 A-1127-075-A MIRROR COVER ASSEMBLY (50)
(KF-50E200A/50E201A ONLY)
16 2-671-855-31 COVER, REAR (42)
(KF-42E200A/42E201A ONLY)
16 2-671-855-01 COVER, REAR (50)
(KF-50E200A/50E201A ONLY)
17 2-591-156-01 DOOR, LAMP
18 4-097-548-11 CUSHION, FOOT
19 X-2055-656-3 CABINET ASSEMBLY, BOTTOM (42)
(KF-42E200A/42E201A ONLY)
19 X-2055-653-3 CABINET ASSEMBLY, BOTTOM (50)
(KF-50E200A/50E201A ONLY)
20 1-826-436-11 LOUDSPEAKER (13X7CM)
Caution:
When removing the Mirror Cover Assembly or the Screen Frame
Assembly, be sure to clean the mirror and Diffusion Plate(s) to
remove any dust particles.
13
12
14
15
10
11
9
6
7
8
5
4
2
3
1
17
16
19
20
18
20
