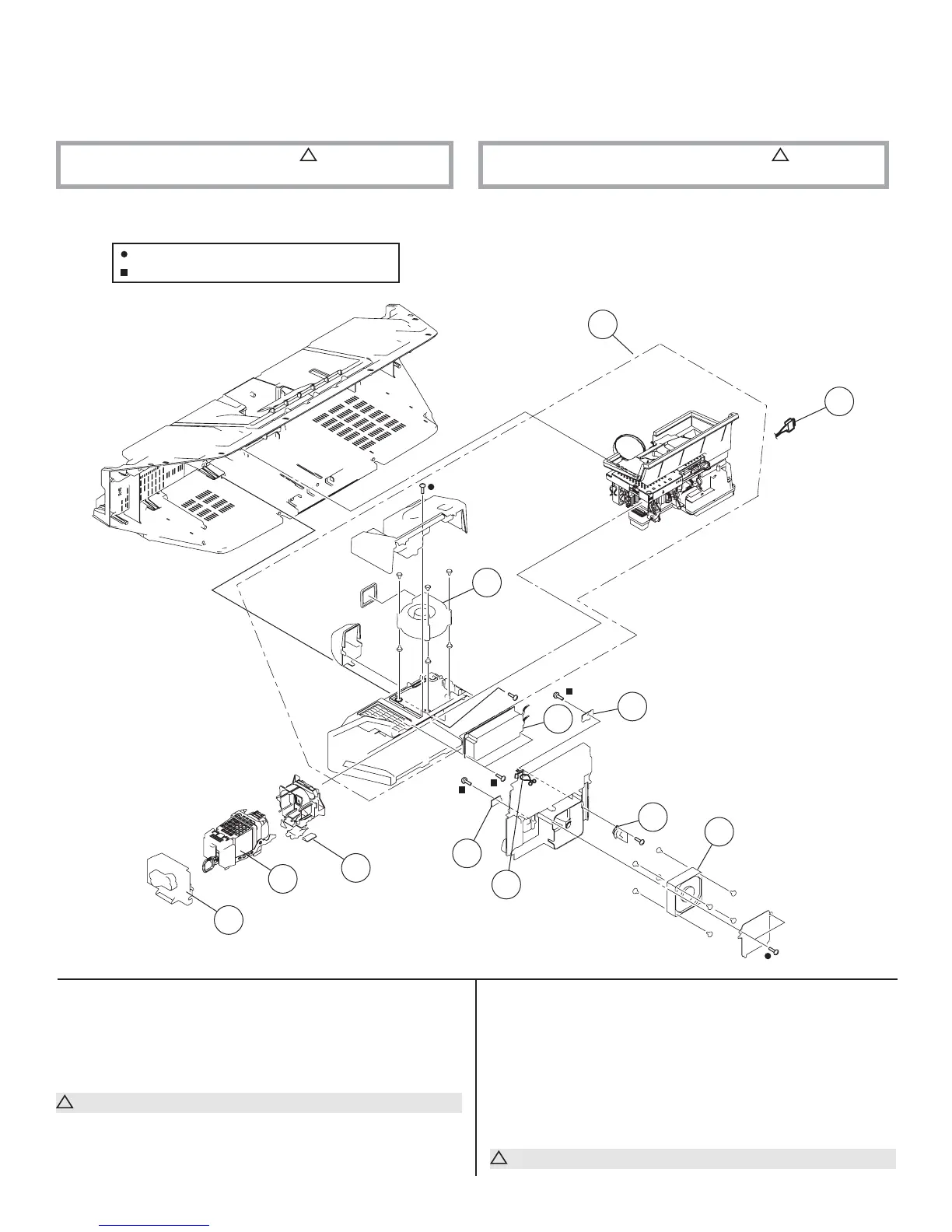

4-3. OPTICS UNIT BLOCK ASSEMBLY AND LAMP ASSEMBLY
101 X-2108-370-1 DOOR ASSEMBLY, LAMP
102 (F-9308-7500) LAMP BLOCK ASSEMBLY
103 A-1177-123-A T2 BOARD, MOUNTED
104 A-1177-122-A T1 BOARD, MOUNTED
105 4-035-160-01 PURSE LOCK (S) (DIA. 12)
!
106 1-787-373-11 D.C. FAN
107 1-576-951-11 THERMOSTAT
108 A-1177-121-A S2 BOARD, MOUNTED
109 1-474-012-11 POWER SUPPLY BLOCK
110 1-830-099-41 LEAD WIRE WITH CONNECTOR(LVDS)
111 A-1212-387-A OPTICS UNIT BLOCK ASSEMBLY (42) [112]
(KF-42E200A/42E201A ONLY)
The C Board is part of the Optics Unit Block Assembly
and cannot be ordered separately.
111 A-1197-241-A OPTICS UNIT BLOCK ASSEMBLY (50) [112]
(KF-50E200A/50E201A ONLY)
The C Board is part of the Optics Unit Block Assembly
and cannot be ordered separately.
!
112 1-787-374-11 D.C. FAN
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
Caution:
When replacing the Optics Unit Block Assembly or the DC Fan be
sure to remove any dust particles.
