Sony KF-42E200A - HC Board Removal; HA Board and HB Board Removal

KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
20

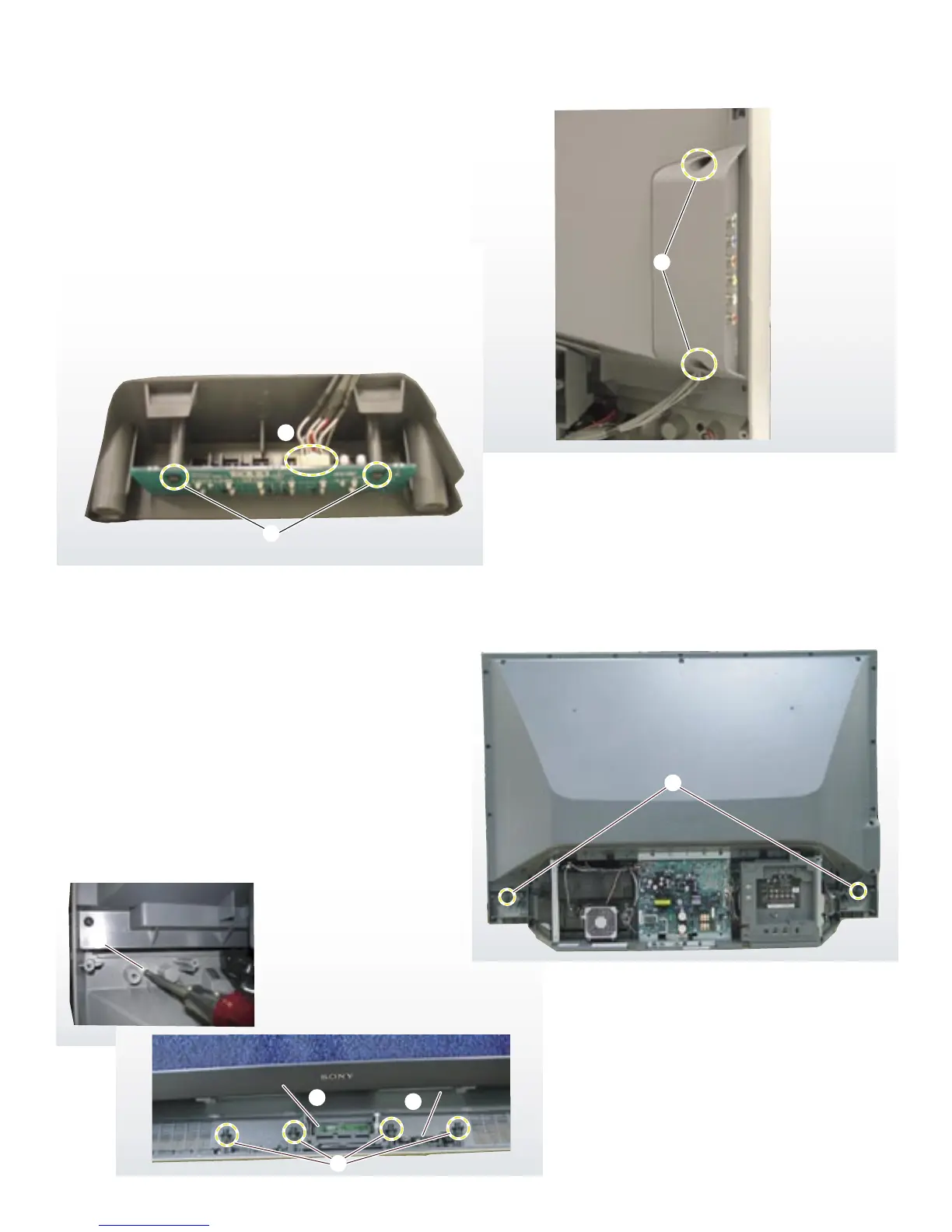

1-7. HC BOARD REMOVAL
1
Remove 2 screws to detach the H2 Bracket.
2
Disconnect connector.
3
Remove 2 screws.
1
3
2
1-8. HA BOARD AND HB BOARD REMOVAL
4
3
5
2
HA Board
HB Board
1
1
Remove 2 screws from inside the front panel.
2
Using a screwdriver, gently push through the hole to
release the speaker grill.
3
Firmly pull on the speaker grill to detach from the cabinet.
4
Disconnect CN7000 and remove 2 screws to release the
HA Board
5
Disconnect CN7020 and remove 2 screws to release the
HB Board
