KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
23

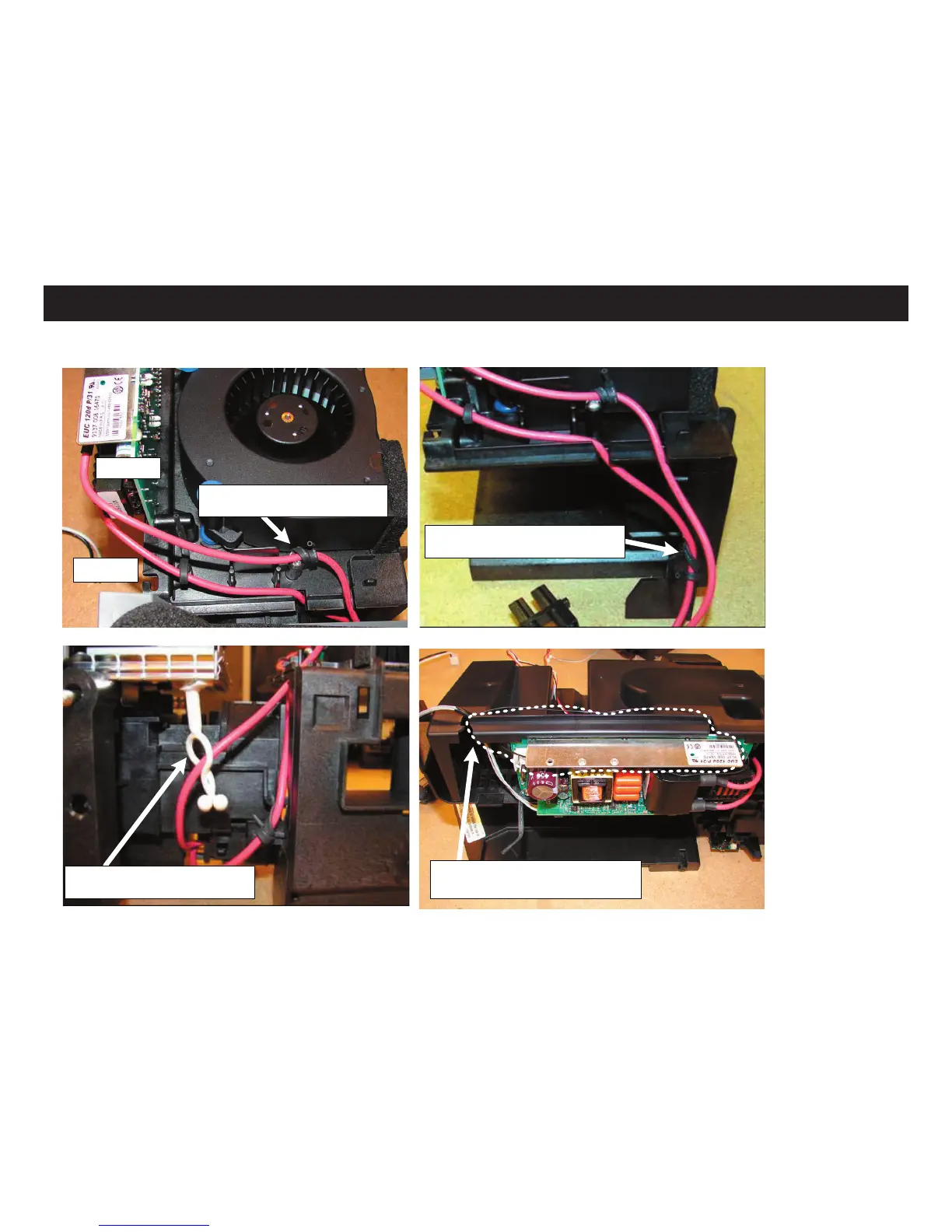

WIRE DRESSING
“Top” Lead
“Bottom”
Lead
Dress Lamp Driver Leads as shown
below to wire holders.
After Installing Duct Block assy to
Optical Block Dress “TOP” Lamp Lead
to Purse Lock on [C] Shield
1-910-024-31 Connector Assy should be
dressed around Heat Sink and around Duct
Block Cover as shown above.
Dress "Bottom" Lamp Driver Lead as
shown to wire holder on Duct Block Assy
BALLAST WIRE DRESSING
To Next Page
