Sony KF-42E200A - T1 Board Schematic Diagram; T2 Board Schematic Diagram

KF-42E200A/42E201A/50E200A/50E201A
KF-42E200A/42E201A/50E200A/50E201A
68
    




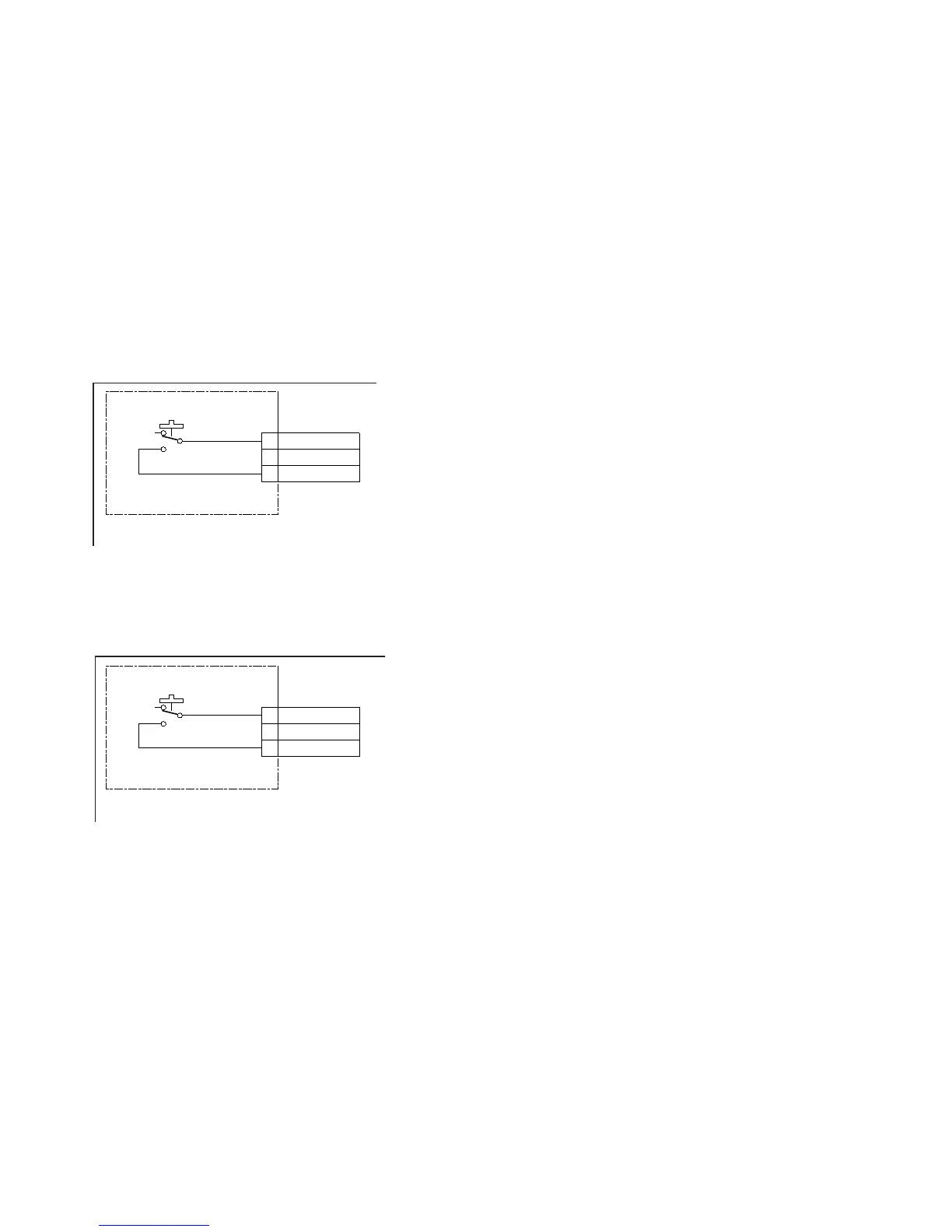

T1 BOARD SCHEMATIC DIAGRAM
    



T2 BOARD SCHEMATIC DIAGRAM
S150
1
2
3
3P
CN150
LAMP_COV
NC
GND
T1 Lamp door detection
A-1177-122-A <LA4>T1
TO G BOARD
CN6804
S155
1
2
3
3P
CN155
LAMP_POS
NC
GND
T2 Lamp connector detection
A-1177-123-A <LA4>T2
TO G BOARD
CN6804
