— 37 —
KV-21FE13 / 21FE13C / 21FM13 / 21FM13C
SECTION 6: EXPLODED VIEWS
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
The component parts of an assembly are indicated by
the reference numbers in the far right column of the parts
list and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION [Assembly Includes]
1 1-529-613-11 SPEAKER (9X5CM) (KV-21FE13/21FE13C ONLY)
1 1-529-270-11 SPEAKER (9X5CM) (KV-21FM13/21FM13C ONLY)
2 4-057-714-01 PIECE TLH CONVERGENCE
3 1-452-728-61 COIL, NA ROTATION (RT-154)
4 4-071-497-02 HOLDER, FBT
* 5 A-1299-182-A A COMPLETE PC BOARD (KV-21FE13 ONLY)
5 A-1299-174-A A COMPLETE PC BOARD (KV-21FE13C ONLY)
5 A-1299-518-A A COMPLETE PC BOARD (KV-21FM13 ONLY)
5 A-1299-189-A A COMPLETE PC BOARD (KV-21FM13C ONLY)
The high-voltage leads associated with the FBT on this board are not
included and must be ordered separately. (See 14-16)
* 6 A-1304-183-A MB (VAR) MOUNTED PC BOARD
(KV-21FE13/21FE13C ONLY)
* 6 A-1304-201-A MB (VAR) MOUNTED PC BOARD
(KV-21FM13/21FM13C ONLY)
!
7 1-790-316-21 CORD, AC POWER(WITH CONNECTOR)
(KV-21FE13/21FM13 ONLY)
!
7 1-769-796-31 CORD, POWER (WITH CONNECTOR)
(KV-21FE13C/21FM13C ONLY)
8 1-766-374-11 PLUG, F-PIN
9 4-073-934-01 COVER, REAR
The labels associated with the rear cover are not included and must be
ordered separately. See items 18,19, and 20.
10 3-704-372-71 HOLDER, HV CABLE
11 4-062-047-02 PIECE A(110), CONV CORRECT
12 1-452-032-00 MAGNET,DISC
!
13 1-453-316-21 FBT ASSY NX-1748//X4A4 [14-16]
!
14 1-251-642-52 HV CAP ASSY
!
15 1-900-800-65 FOCUS LEAD
!
16 1-900-803-22 G2 LEAD
!
17 8-598-542-20 TUNER FSS BTF-WA412
(KV-21FE13/21FE13C ONLY)
!
17 8-598-501-30 TUNER FSS BTF-FA402
(KV-21FM13/21FM13C ONLY)
18 4-075-665-01 LABEL, TERMINAL
19 4-075-666-01 LABEL, 2-TUNER ANTENNA
(KV-21FM13/21FM13C ONLY)
20 4-075-664-01 LABEL, 1-TUNER ANTENNA
(KV-21FE13/FE13C ONLY)

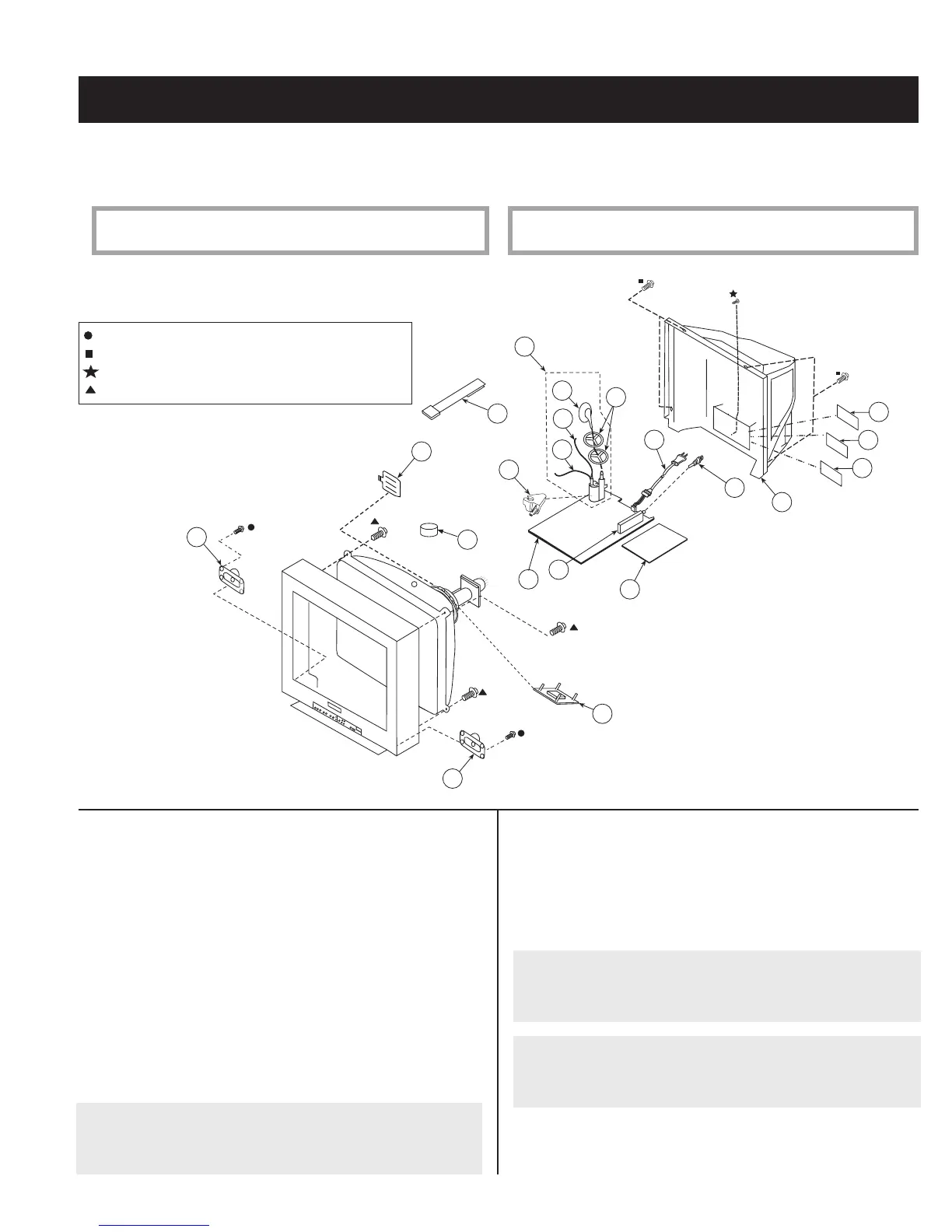

6-1. CHASSIS (KV-21FE13/21FE13C/21FM13/21FM13C)
7-685-648-71 SCREW +BVTP 3X12 TYPE 2 IT-3
7-685-663-71 SCREW +BVTP 4X16 TYPE 2 IT-3
7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
4-365-808-01 SCREW, (5) TAPPING
3
2
12
1
1
11
6
8
5
17
4
14
15
16
13
10
7
9
18
19
20
