Sony KV-21FE13 - Picture Tube Removal

— 38 —
KV-21FE13 / 21FE13C / 21FM13 / 21FM13C
REF.NO. PART NO. DESCRIPTION [Assembly Includes]
NOTE: The components identifi ed by shading and ! mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque ! sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
10
12
14
9
6
7
8
4
3
1
2
5
11
13

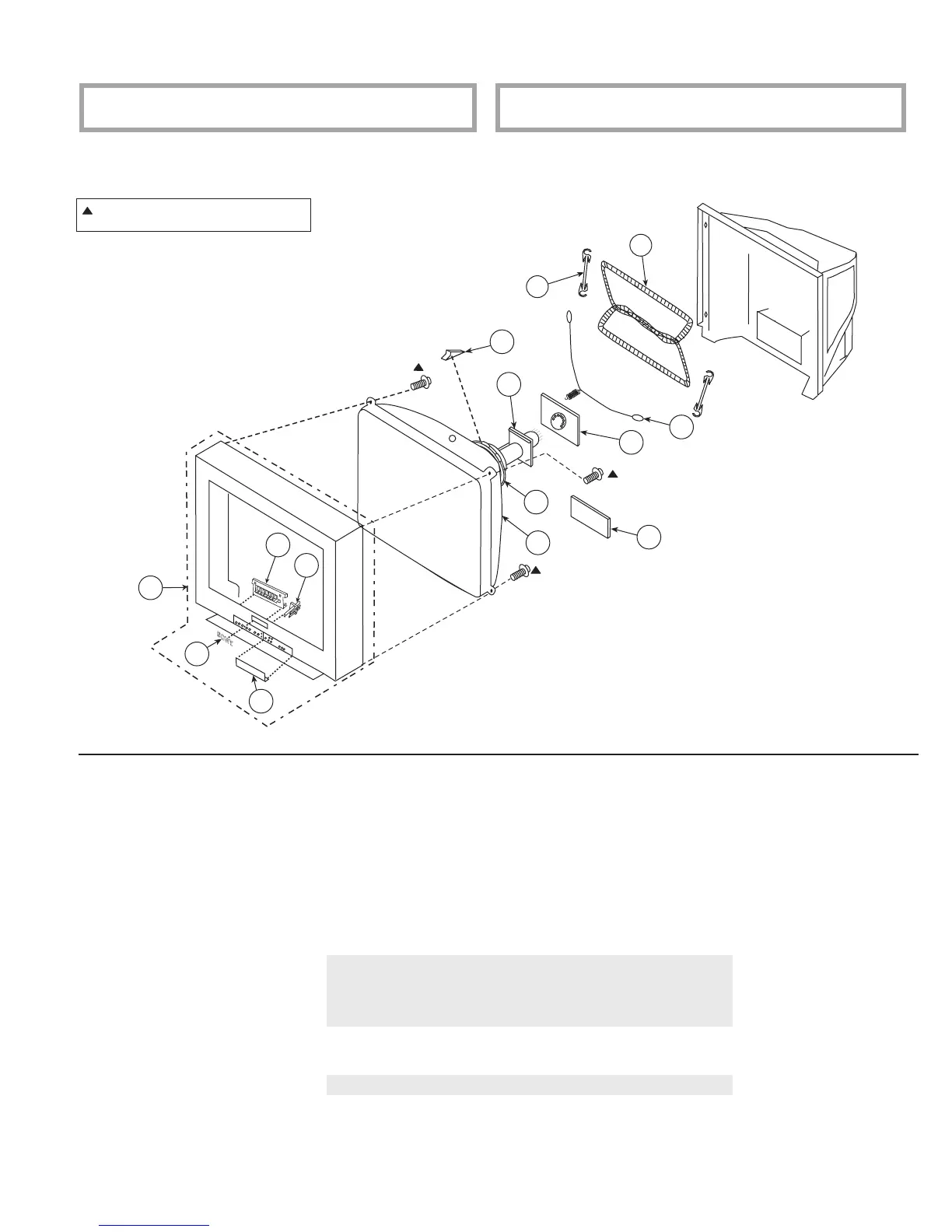

6-2. PICTURE TUBE REMOVAL (KV-21FE13/21FE13C/21FM13/21FM13C)
4-365-808-01 SCREW, (5) TAPPING
1 X-4039-015-1 BEZNET ASSY [2-5]
(KV-21FE13/21FE13C ONLY)
1 X-4038-960-1 BEZNET ASSY [2-5]
(KV-21FM13/21FM13C ONLY)
2 4-073-932-41 DOOR
3 4-046-161-01 EMBLEM (NO.8), SONY
4 4-073-933-01 GUIDE, LED
5 4-073-931-21 BUTTON, MULTI (KV-21FE13/21FE13C ONLY)
5 4-073-931-31 BUTTON, MULTI (KV-21FM13/21FM13C ONLY)
6 4-053-005-01 SPACER, DY
! 7 8-738-831-05 CRT 21RSN(SDP) (KV-21FE13/21FM13 ONLY)
! 7 8-738-838-05 CRT 21RSN(SDP)(SOUTH)
(KV-21FE13C/21FM13C ONLY)
! 8 8-451-505-31 DY Y21RSA-X
* 9 A-1332-035-A CB (VAR) MOUNTED PC BOARD
* 10 4-375-394-01 SPRING, TENSION
! 11 1-419-287-21 COIL, DEGAUSSING
* 12 A-1342-537-A VB (VAR) MOUNTED PC BOARD
13 4-064-883-03 HOLDER, DGC
14 1-416-864-12 COIL, VM
