KV-21FE13 / 21FE13C / 21FM13 / 21FM13C
SECTION 1: DISASSEMBLY

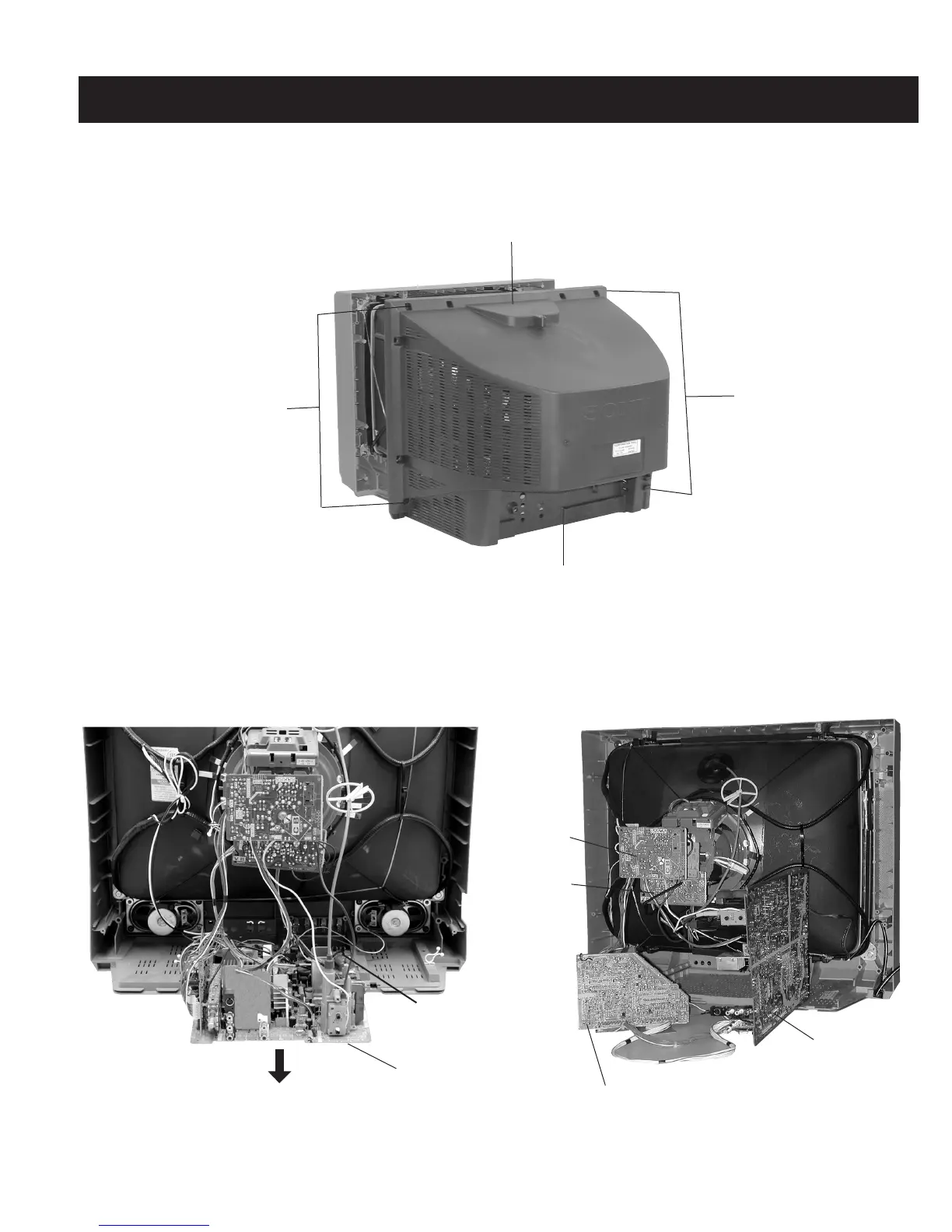

1-1. REAR COVER REMOVAL
1-2. CHASSIS ASSEMBLY REMOVAL
1-3. SERVICE POSITION
2 Screws +BVTP 4x16
Chassis Assembly
CB Board
VB Board
MB Board
A Board
2 Screws +BVTP 4x16
1 Screw +BVTP 3x10
Claw
Rear Cover
