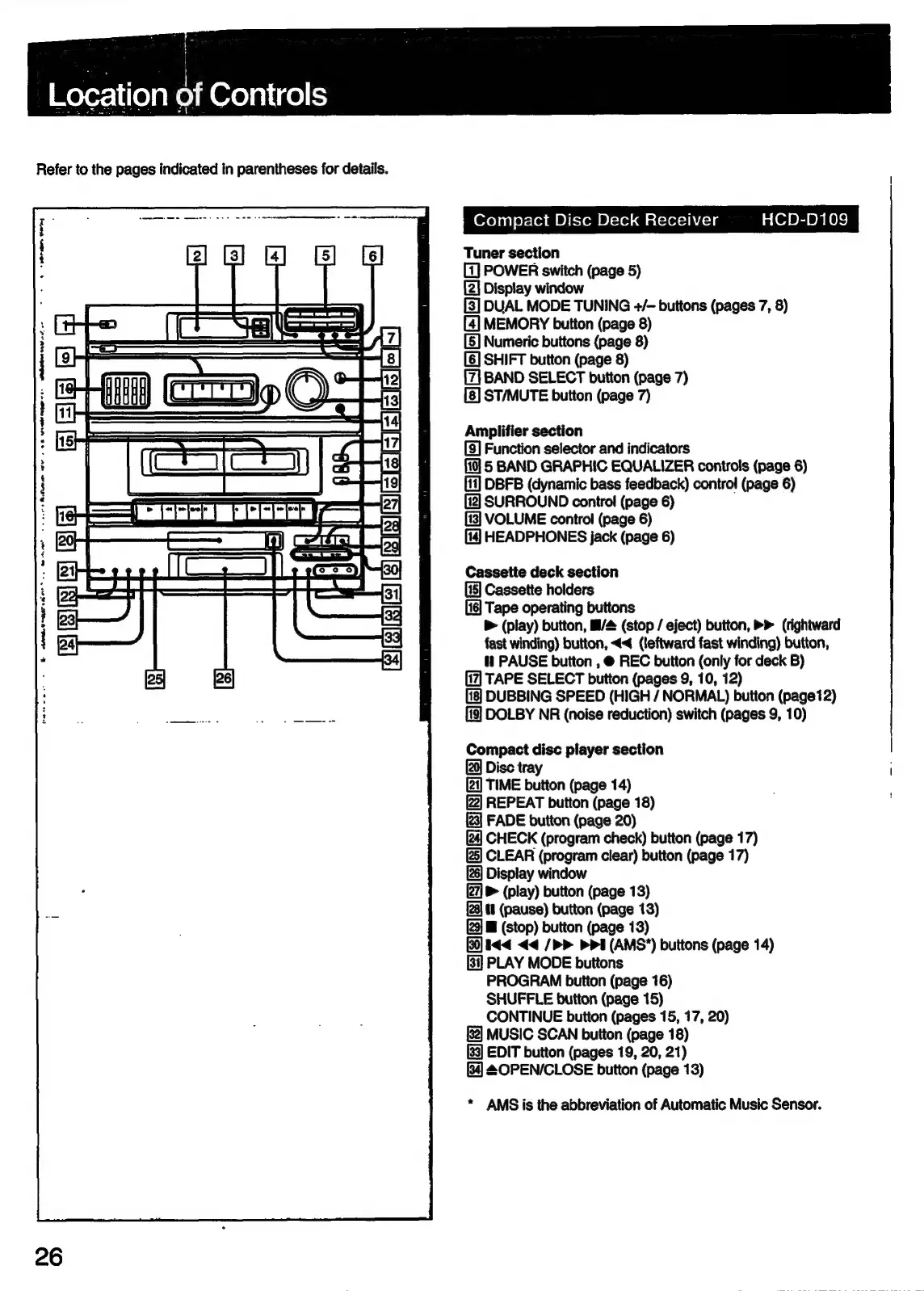

Refer to the pages indicated in parentheses for details.
26
SS EE I
i | f
: ——_ ie) Cedi
ihe teed
Se ee ee ee 2 es
— ala ee curtis,
S(Slelel SiSlsilSisle (Sls ls ls lo IN|
Compact Disc Deck Receiver HCD-D109
Tuner section
[1] POWER switch (page 5)
[2] Display window
[3] DUAL MODE TUNING +/- buttons (pages 7, 8)
[4] MEMORY button (page 8)
[5] Numeric buttons (page 8)
[6] SHIFT button (page 8)
BAND SELECT button (page 7)
ST/MUTE button (page 7)
Amplifier section
[S] Function selector and indicators
fi] 5 BAND GRAPHIC EQUALIZER controls (page 6)
[ii] DBFB (dynamic bass feedback) control (page 6)
[2] SURROUND contro! (page 6)
[13] VOLUME control (page 6)
[14] HEADPHONES jack (page 6)
Cassette deck section
[15] Cassette holders
[16] Tape operating buttons
> (play) button, M/4 (stop / eject) button, >> (rightward
fast winding) button, << (leftward fast winding) button,
ti PAUSE button , @ REC button (only for deck B)
{i7] TAPE SELECT button (pages 9, 10, 12)
[18] DUBBING SPEED (HIGH / NORMAL) button (page12)
DOLBY NR (noise reduction) switch (pages 9, 10)
Compact disc player section
Disc tray
[21] TIME button (page 14)
REPEAT button (page 18)
FADE button (page 20)
[24] CHECK (program check) button (page 17)
CLEAR (program clear) button (page 17)
Display window
& (play) button (page 13)
{1 (pause) button (page 13)
i (stop) button (page 13)
BO] 8 <4 />> PPI (AMS"*) buttons (page 14)
[3] PLAY MODE buttons
PROGRAM button (page 16)
SHUFFLE button (page 15)
CONTINUE button (pages 15, 17, 20)
MUSIC SCAN button (page 18)
EDIT button (pages 19, 20, 21)
“OPEN/CLOSE button (page 13)
* AMS is the abbreviation of Automatic Music Sensor.
