MC-S50
10
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

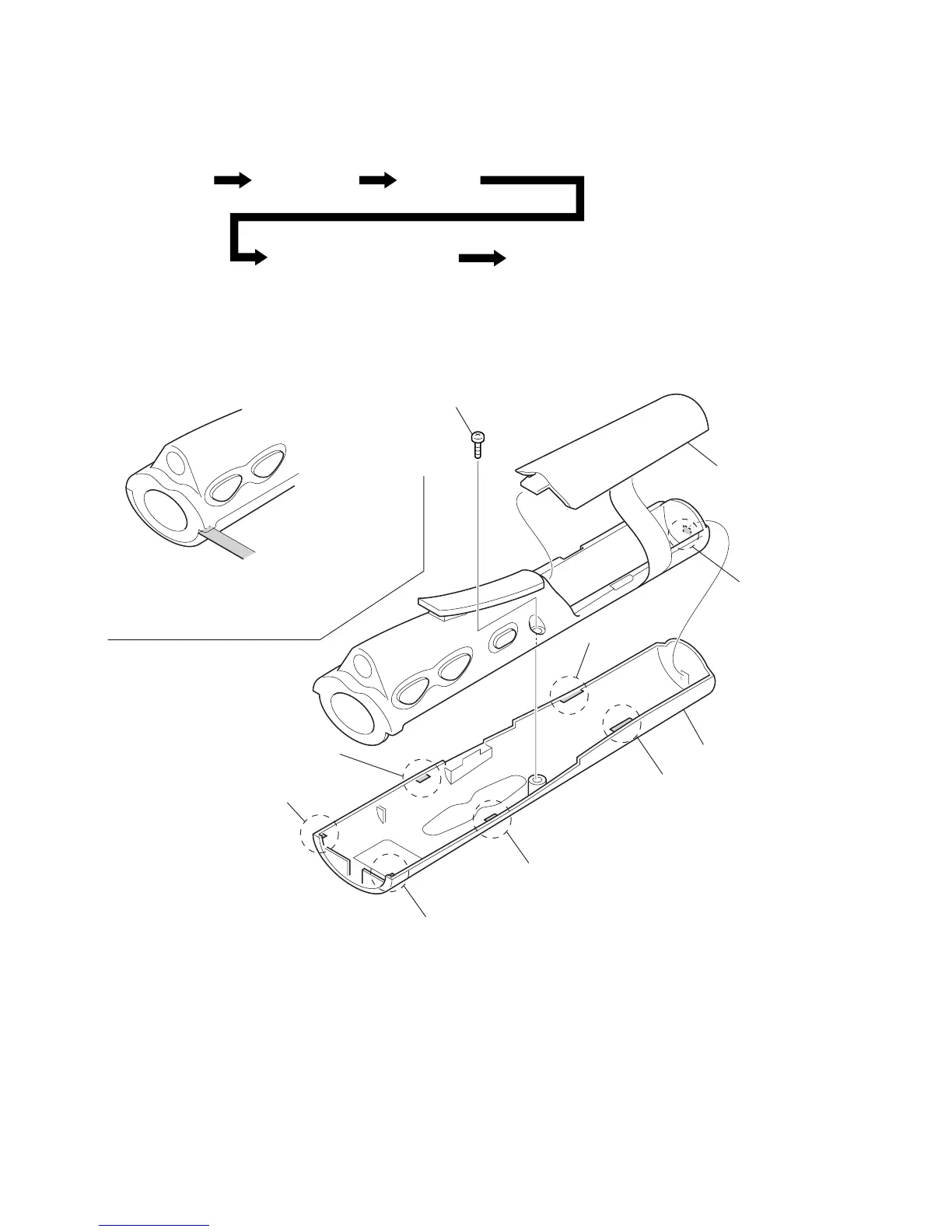

3-2. CASE ASSY, UPPER
“LOGIC board”,
“Display panel, liquid crystal (LCD901)”
“LOGIC board”,
“Audio board”,
“Flexible (jack) board, Jack (J301)”
Set Case assy, upper Power board
2 lid, battery case
9 claw
8 claw
7 claw
6 claw
3 claw
4 claw
5 claw
0 case assy, upper
1 screw (1.7 × 4)
Note 1:Use something like a thin board
when disconnected claws.
Note 2:Take care not to damage the cabinet.
