MC-S50

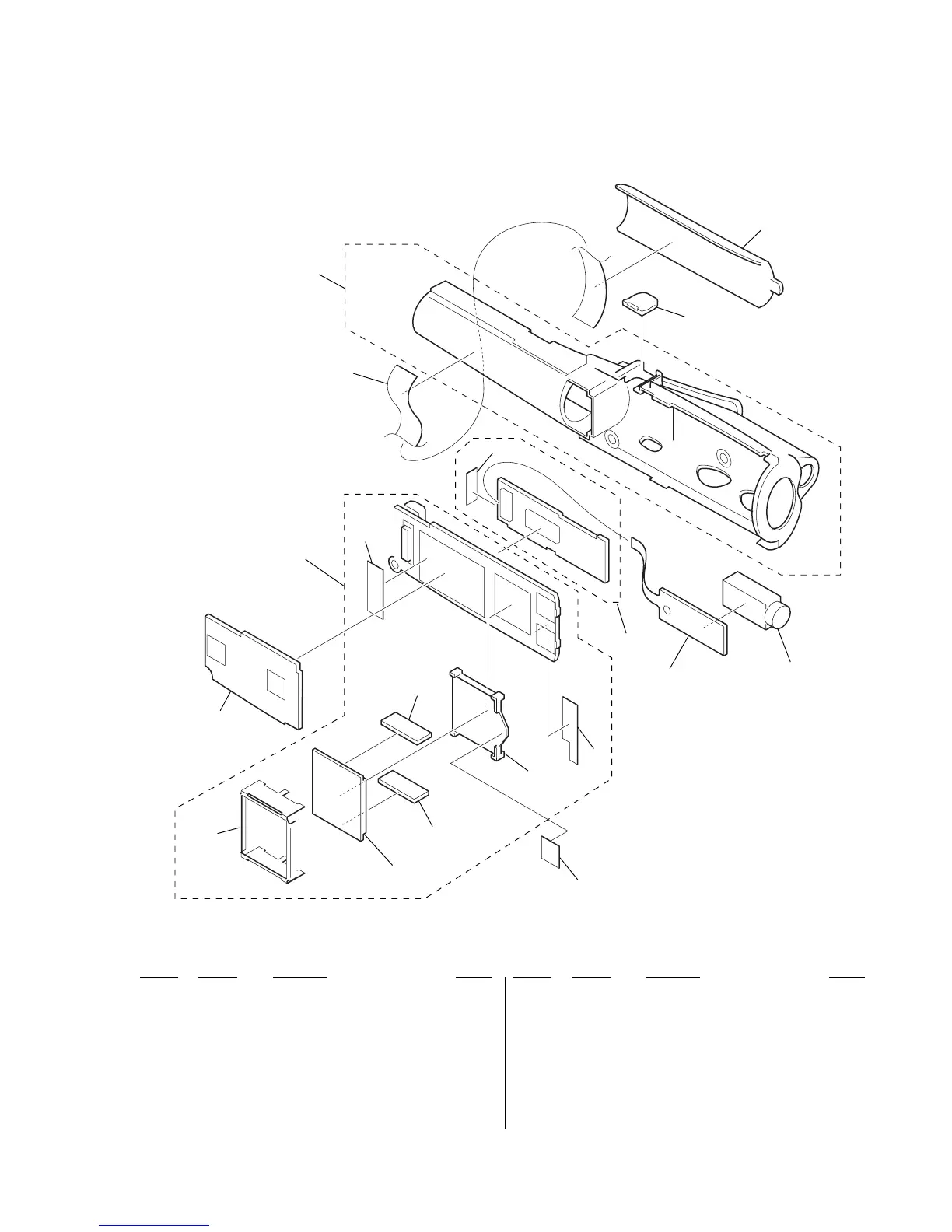

5-2. BOARD ASSY
52
J301
LCD901
73
74
80
81
75
77
69
76
59
54
54
53
78
63
79
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
52 4-649-896-01 CASE, LCD
53 4-649-901-01 BL UNIT
54 1-694-771-11 CONDUCTIVE BOARD
59 X-4623-191-2 CASE ASSY, LOWER
63 1-680-151-11 FLEXIBLE (JACK) BOARD
69 4-649-895-01 COVER, USB
73 A-3323-698-A POWER BOARD, COMPLETE
74 A-3323-696-A LOGIC BOARD, COMPLETE
75 A-3323-697-A AUDIO BOARD, COMPLETE
76 4-649-913-01 RIBBON, BATTERY
77 4-649-909-21 LID, BATTERY CASE
78 3-228-267-01 SHEET, LIGHT INTERCEPTION
79 3-228-357-01 SHEET, DSP
80 3-230-336-01 SHEET (LARGE), ELECTROMAGNETIC
81 3-230-337-01 SHEET (SMALL), ELECTROMAGNETIC
J301 1-815-117-11 JACK (i (HEADPHONE))
LCD901 1-804-249-11 DISPLAY PANEL, LIQUID CRYSTAL
