Sony MC-S50 - 5 Exploded Views; Upper Case Assy

26
MC-S50

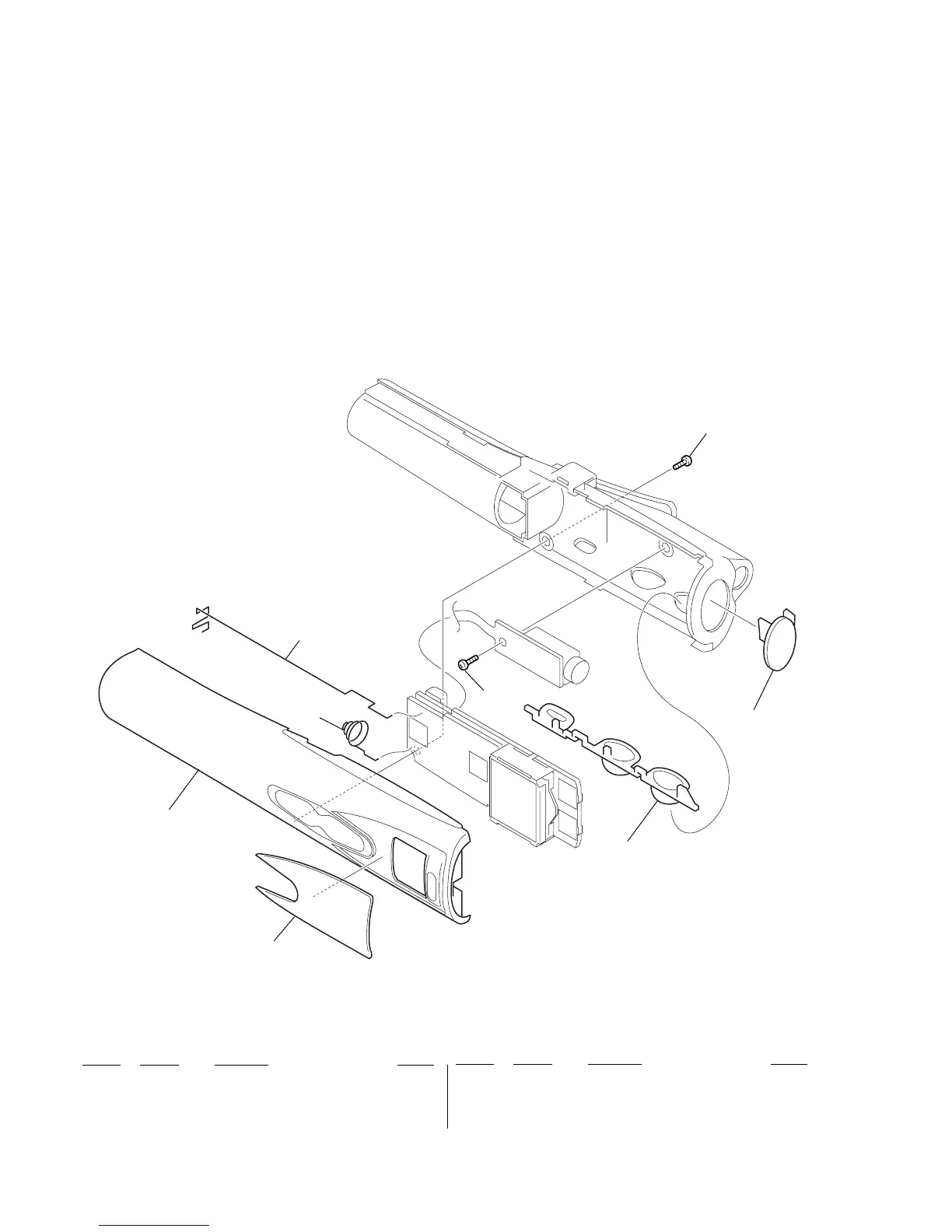

5-1. UPPER CASE ASSY
SECTION 5
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
6
24
3
5
14
11
13
13
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
3 4-649-908-02 BUTTON, PLAY
5 4-649-902-01 WINDOW, LCD
6 X-4623-190-1 CASE ASSY, UPPER
11 4-649-910-01 TERMINAL (+), BATTERY
13 3-893-942-31 SCREW (1.7X4), TAPPING (B)
14 4-649-911-01 TERMINAL (-), BATTERY
24 4-649-905-01 BUTTON, VOLUME
