Sony MC-S50 - Power Board; LOGIC Board, AUDIO Board, FLEXIBLE (JACK) Board, Jack (J301); LOGIC Board

MC-S50
11

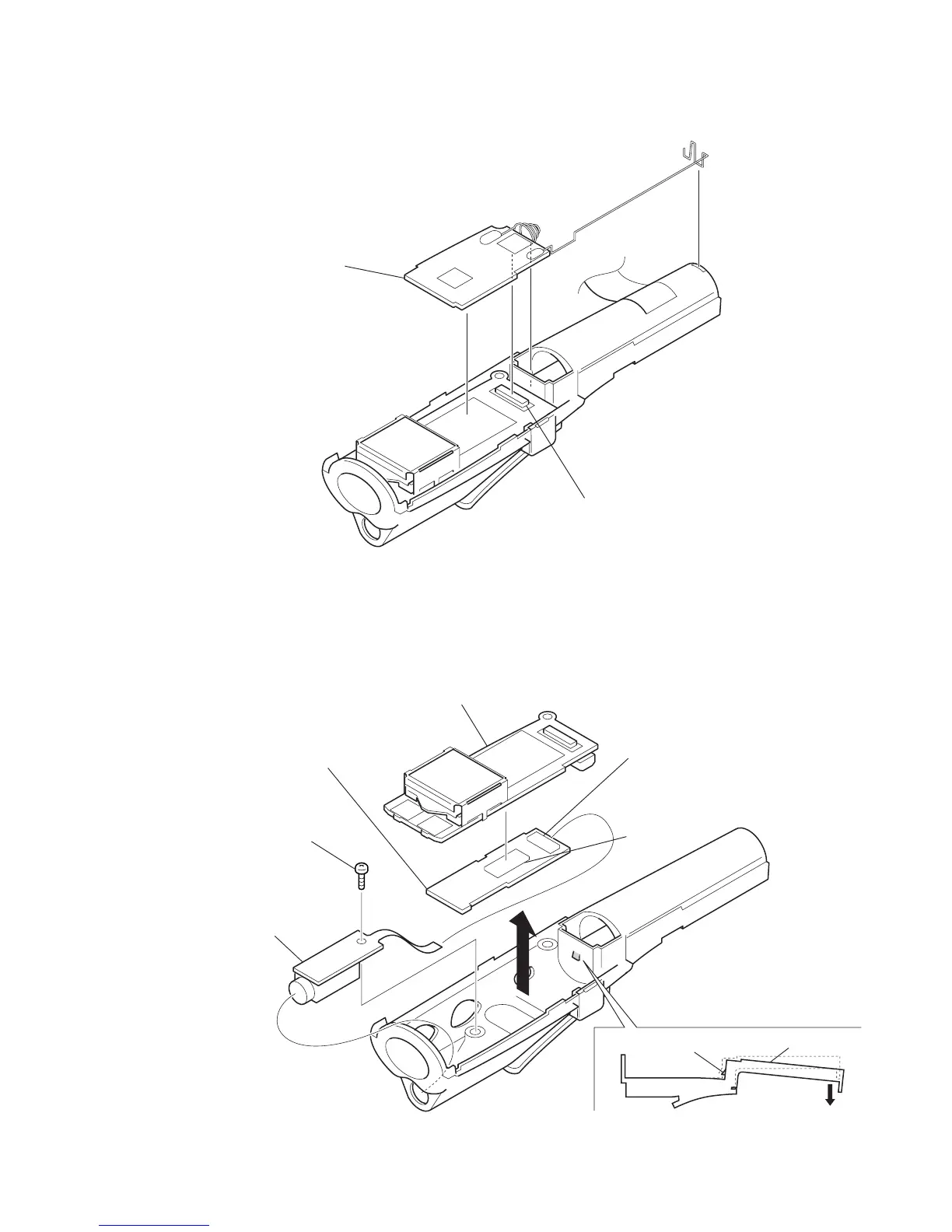

3-3. POWER BOARD
1 connector (CN601)
2 POWER board
3-4. “LOGIC BOARD”, “AUDIO BOARD”,
“FLEXIBLE (JACK) BOARD, JACK (J301)”
2
7 screw (1.7 × 4)
8 flexible (jack) board, jack (J301)
6 AUDIO board
4 LOGIC board
5 connector (CN302)
3 connector
(CN301)
1 claw
case assy, lower
Note: Disconnect the claw
warping the “case assy, lower”.
