Sony MDP-A1 User Manual

How to Connect Audio Equipment
To achieve full stereo sound from your Multi Disc Player, hook up a stereo system following the diagram below. Use an
RK-C310 (or RK-C315) audio connecting cable (not supplied) to connect the Multi Disc Player to your amplifier or
receiver. Before connecting or disconnecting any of the below cables, turn off ail equipment.
To Achieve Digital Sound
Digital sound recordings afford high quality sound reproduction, (see Glossary, page 46). If your amplifier also has a fiber
optical connector, or if you have a D/A converter unit with optical input, according to the diagram below, connect the POC-
15 Audio Fiber Optical Cable (not supplied) between the DIGITAL OUT connector on the Multi Disc Player and the
amplifier or D/A converter. Note that digital signals are always output from the Multi Disc Player except when you play
discs that are not digitally recorded. Such discs output analog sound from LINE OUT only.
Sound from a microphone cannot be output from the DIGITAL OUT connector. To output sound from a microphone,
connect the player to the amplifier with an Audio Cable (Red & White plugs).

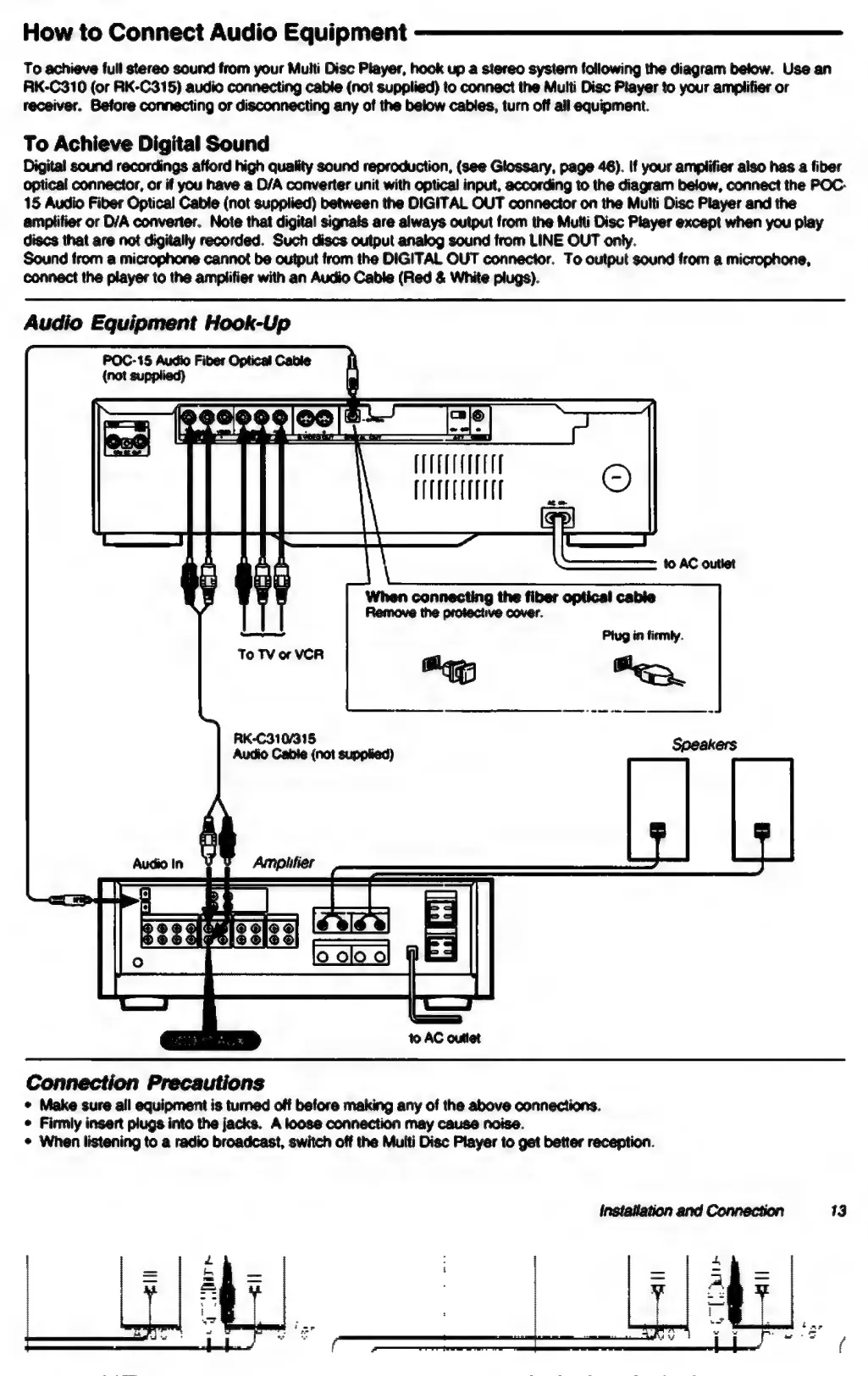

Audio Equipment Hook-Up
POC-15 Audio Fiber Optical Cable
Tn
TC
to AC outiet
| When connecting the fiber optical cable
Remove the protective cover.
—~ Plug in fiemly.
To TV or VCR Shae Cle
ed ee
RK-C310/315
Audio Cable (not supplied) Speakers
Connection Precautions
¢ Make sure all equipment is turned off before making any of the above connections.
¢ Firmly insert plugs into the jacks. A loose connection may cause noise.
¢ When listening to a radio broadcast, switch off the Multi Disc Player to get better reception.

Sony MDP-A1 Specifications

General

Audio Output	Analog audio output
Digital Output	Coaxial
Frequency Response	2Hz - 20kHz
Channels	2
Output Voltage	2 V
