3-1-4 Ethernet Connection
The MSW-M2000E/M2000EP equipped with an
Ethernet connector can be connected to a 10/100/
1000Base-T network. You can send and receive video,
audio, and metadata as MXF files by operating the
control panel of the VTR or using a control computer
connected via the network.
Ethernet
Ethernet
75Ω 75Ω
Ethernet
SDI
INPUT
Ethernet
Control computer
Router
Hub
Audio/video server
Server room
MSW-M2000E/M2000EP
MSW-M2100E/M2100EP

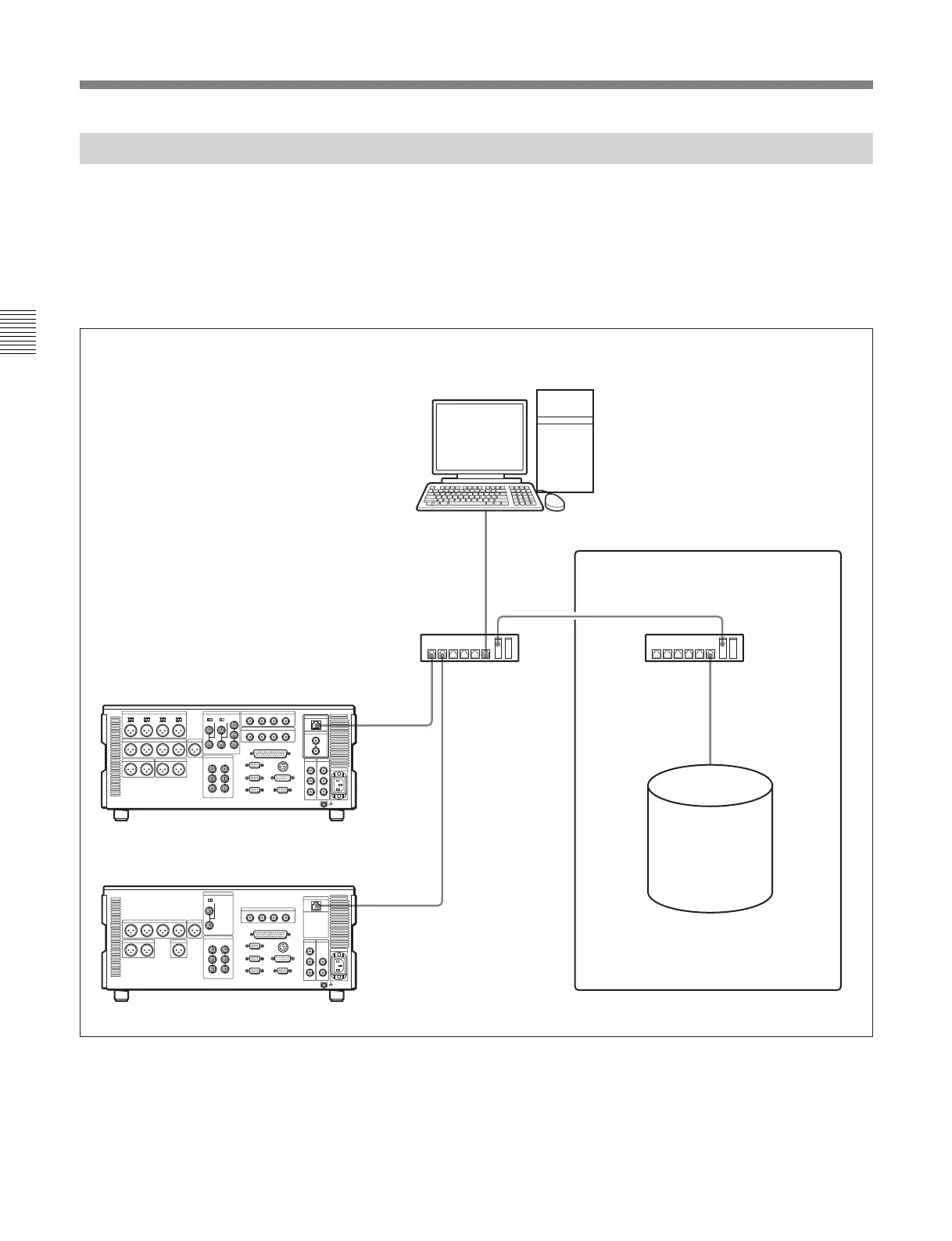

A network connection example for the MSW-
M2000E/M2000EP is shown below:
3-1 Connections to External Devices
Ethernet
(10/100/1000Base-T)
