Chapter 3 Preparations
Chapter 3 Preparations 3-7

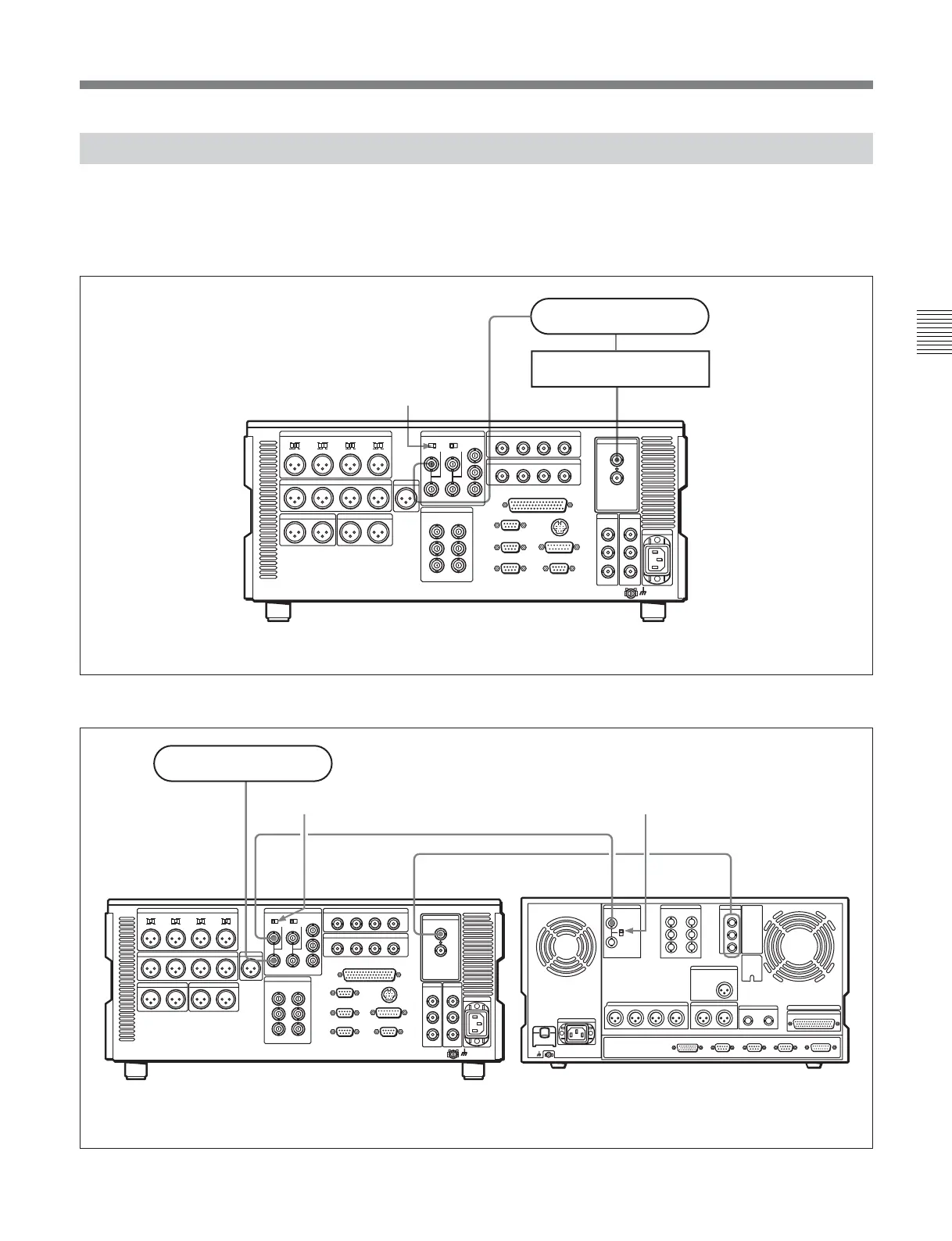

•Connections for recording from a switcher or signal generator
•Connections for recording from an external VTR (player)
SDI INPUT
REF. VIDEO
INPUT
SDI OUTPUT
REF. VIDEO
INPUT
Reference signal
75 Ω termination switch: OFF
75 Ω termination switch: ON
SDI INPUT
REF. VIDEO
INPUT
Reference signal
Switcher or signal generator
MSW-A2000/A2000P/M2000/M2000P/2000/
M2000E/M2000EP
a)
75 Ω termination switch: ON
DNW-A65/A65P (player)
MSW-A2000/A2000P/M2000/M2000P/2000/
M2000E/M2000EP
a)
(recorder)
3-2-3 Connecting Reference Signals
Connect reference signals as shown below, according
to the way in which the unit is to be used.
a) The figure shows the MSW-M2000/ M2000P.
a) The figure shows the MSW-M2000/ M2000P.
