[Mid Power Measurement]
24) Confirm that the Write Power Differential Efficiency
Measurement screen is displayed.(Fig.6-3-7)
25) Take reading of the optical power meter indication value and
type it in the Laser Power Value column.
Example:5.460
26) Click the [INPUT] button.

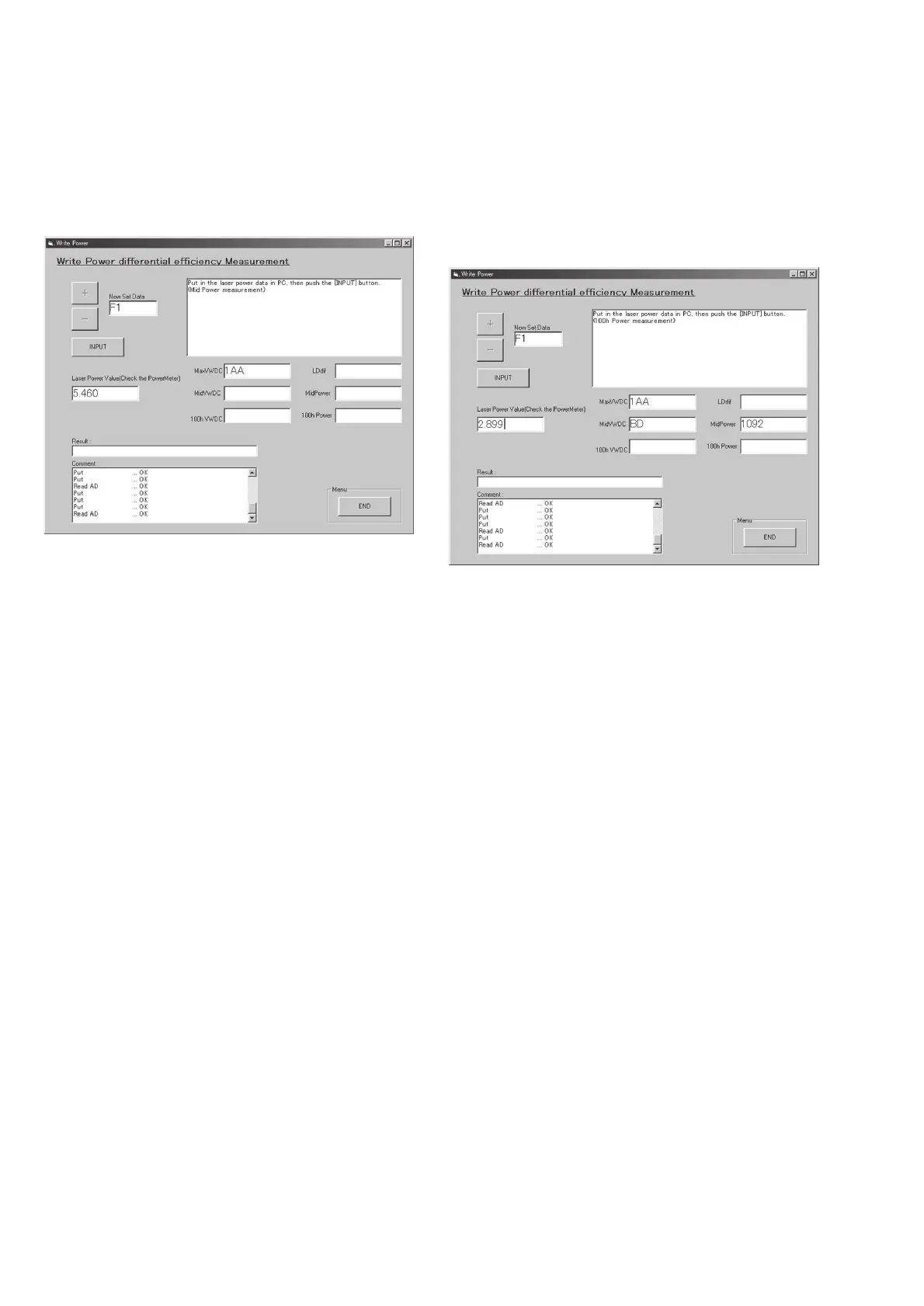

Fig.6-3-7
[100h Power Measurement]
27) Confirm that the Write Power Differential Efficiency
Measurement
(100h Power Measurement screen is displayed. (Fig.6-3-8)
28) Take reading of the optical power meter indication value and
type it in the Laser Power Value column.
Example: 2.899
29) Click the [INPUT] button to terminate the Laser Power
Adjustment.
Fig.6-3-8
30) Turn off the power of the BU adjustment jig and turn on again.
31) Click the “Renewal” button on the Adjustment Menu screen.
