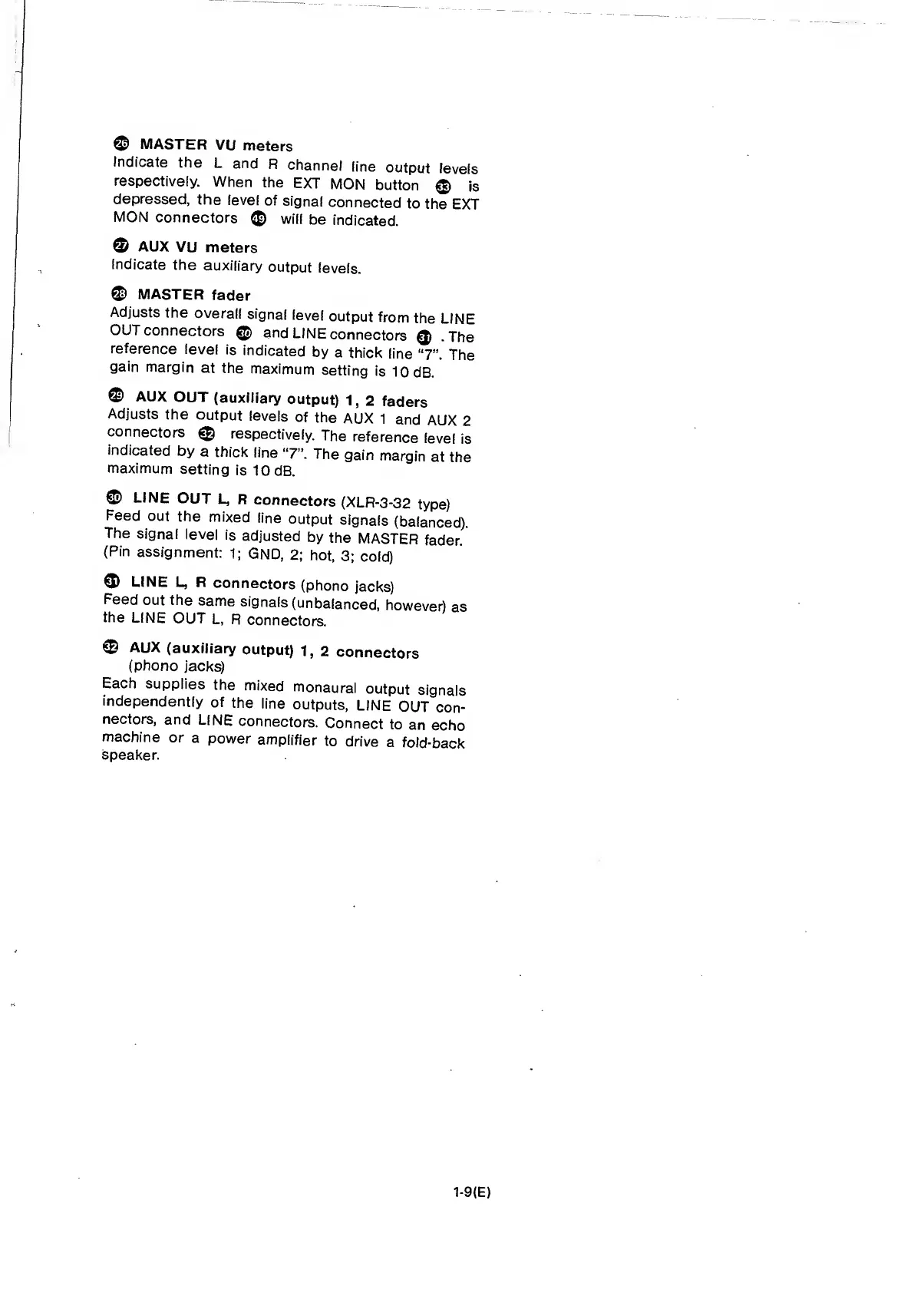

Sony mxp-29 - Page 28

©
MASTER
VU
meters
Indicate
the
L
and
R
channel
line
output
levels
respectively.
When
the
EXT
MON
button
©
is
depressed,
the
level
of
signal
connected
to
the
EXT
MON
connectors
©
will
be
indicated.
©
AUX
VU
meters
Indicate
the
auxiliary
output
levels.
©
MASTER
fader
Adjusts
the
overall
signal
level
output
from
the
LINE
OUT
connectors
©
and
LINE
connectors
©
.The
reference
level
is
indicated
by
a
thick
line
“7”.
The
gain
margin
at
the
maximum
setting
is
10
dB.
©
AUX
OUT
(auxiliary
output)
1
,
2
faders
Adjusts
the
output
levels
of
the
AUX
1
and
AUX
2
connectors
©
respectively.
The
reference
level
is
indicated
by
a thick
line
“7”.
The
gain
margin
at
the
maximum
setting
is
10dB.
©
LINE
OUT
L,
R
connectors
(XLR-3-32
type)
Feed
out
the
mixed
line
output
signals
(balanced).
The
signal
level
is
adjusted
by
the
MASTER
fader
(Pin
assignment:
1;
GND,
2;
hot,
3;
cold)
©
LINE
L,
R
connectors
(phono
jacks)
Feed
out
the
same
signals
(unbalanced,
however)
as
the
LINE
OUT
L,
R
connectors.
©
AUX
(auxiliary
output)
1
,
2
connectors
(phono
jacks)
Each
supplies
the
mixed
monaural
output
signals
independently
of
the
line
outputs,
LINE
OUT
con-
nectors,
and
LINE
connectors.
Connect
to
an
echo
machine
or
a
power
amplifier
to
drive
a
fold-back
speaker.
